98
12
OTHER FUNCTIONS
12
DD

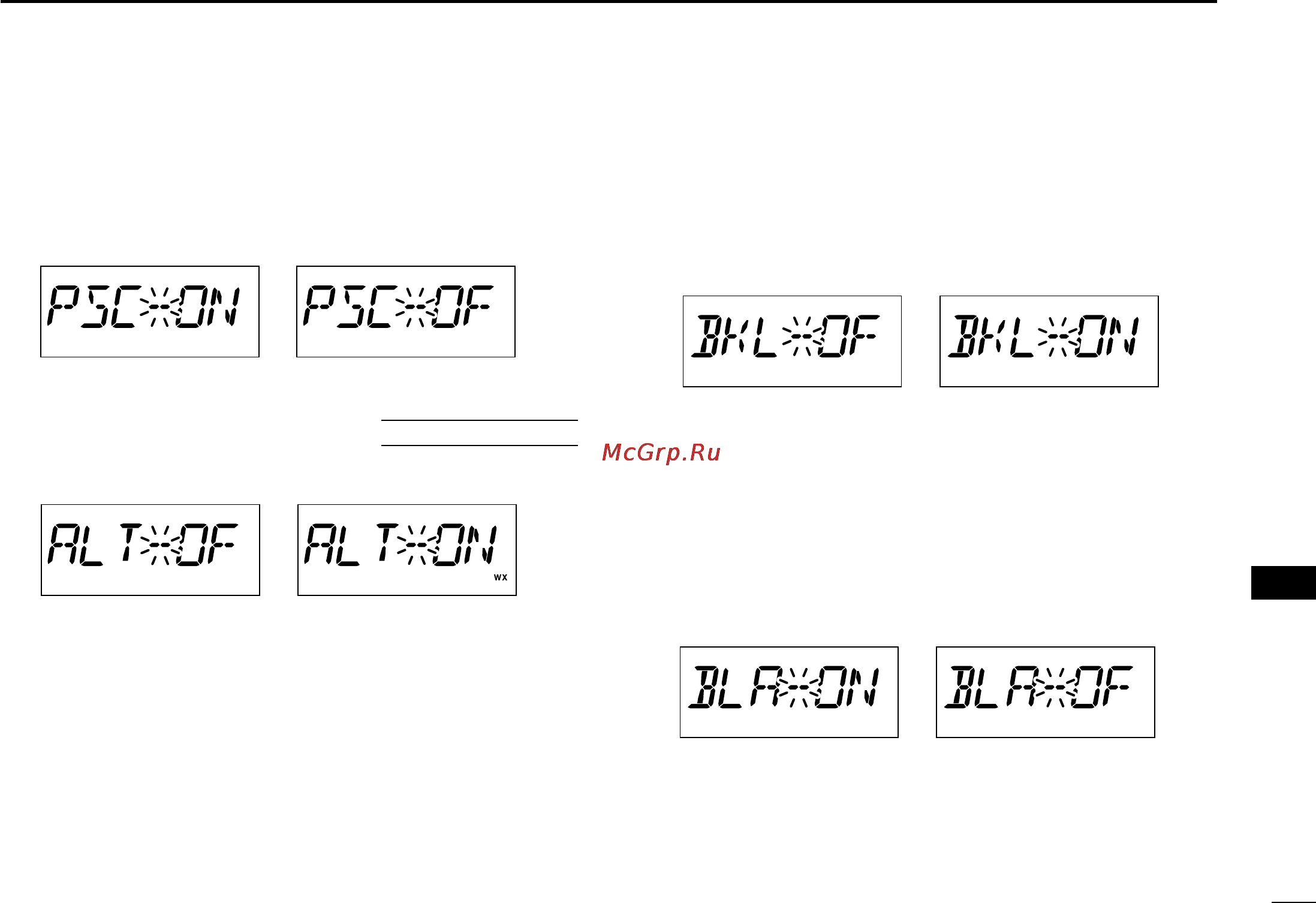

Program scan skip setting
☞ This item appears when set mode is accessed from VFO
mode only.
Sets the program scan skip setting from ON (default) and
OFF for VFO scan operation, such as programmed scan.
DD
Weather alert function
Turns weather alert function ON and OFF (default).
DD
Memory bank link function
☞ This item appears when set mode is accessed from memory
mode only.
Sets the memory bank link function ON and OFF (default).
The link function provides continuous banks scan, scanning
all contents in the selected banks during bank scan.
• Bank link setting
q Rotate [DIAL] to select the memory bank link function ON.
w Push
[SET•LOCK]
or [S.MW•MW] to select the desired
bank to be linked.
• BLA: Bank A, BLB: Bank B, BLC: Bank C, BLD: Bank D,
BLE: Bank E, BLF: Bank F, BLG: Bank G, BLH: Bank H,
BLI: Bank I, BLJ: Bank J
e Rotate [DIAL] to select “ON” to link the bank.
r Repeat steps w and e to link other banks.
U.S.A. version only
ID-800H_1.qxd 2007.06.14 3:09 PM Page 98
