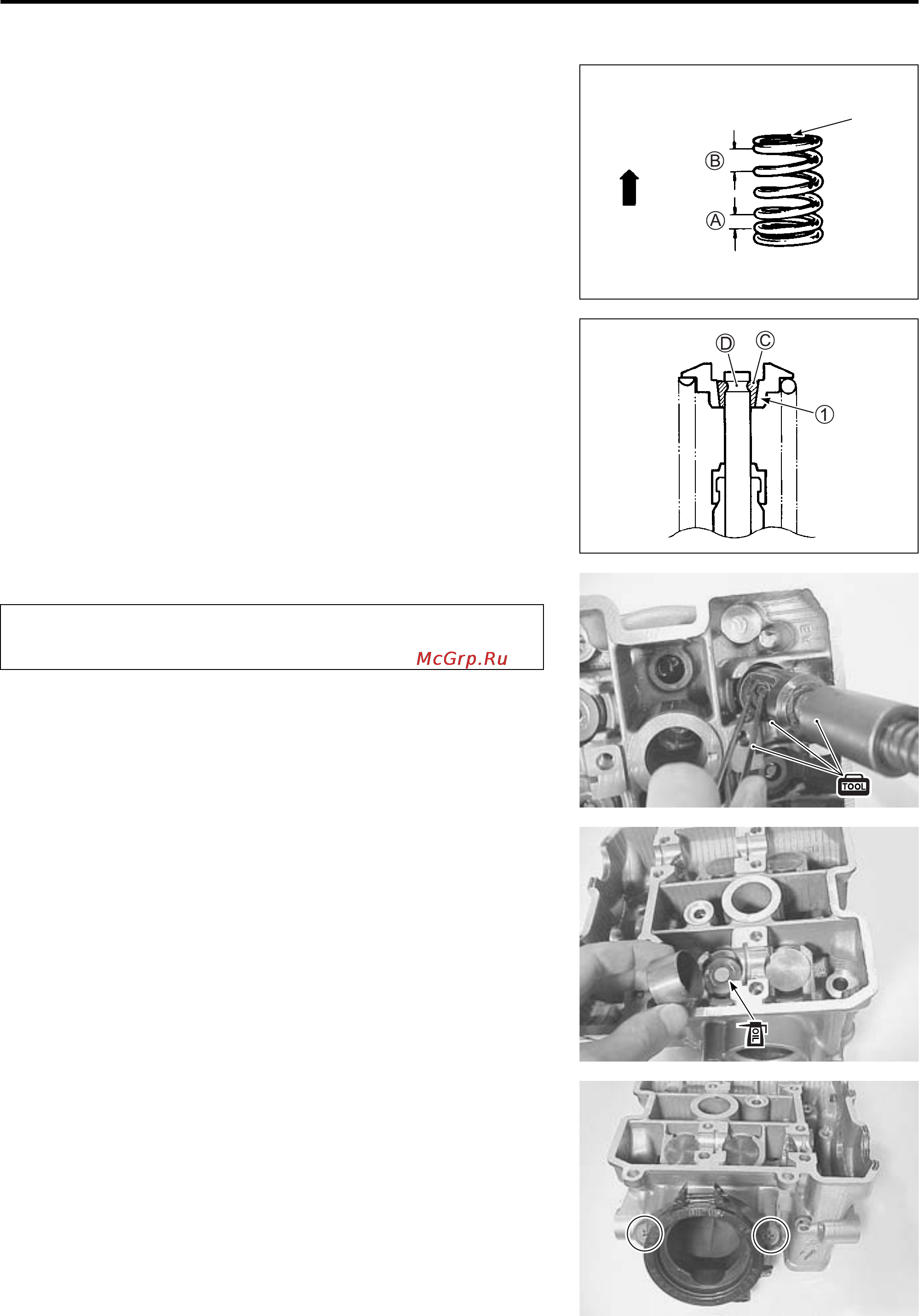

3-46 ENGINE
• Install the valve spring with the small-pitch portion
" facing
cylinder head.
#: Large-pitch portion
• Put on the valve spring retainer, and using the valve lifter,
press down the spring, fit the cotter halves to the stem end,
and release the lifter to allow the cotter
to wedge in
between retainer and stem. Be sure that the rounded lip
D of
the cotter fits snugly into the groove
% in the stem end.
\ 09916-14510: Valve lifter
09916-14910: Valve lifter attachment
09916-84511: Tweezers
• Install the tappet shim and tappet to their original position.
NOTE:
* Apply engine oil to the shim and tappet before fitting them.
* When seating the tappet shim, be sure the figure printed sur-
face faces the tappet.
INTAKE PIPE/WATER UNION
• Remove the intake pipe.
UPWARD
Paint
Be sure to restore each spring and valve to their origi-
nal positions.
