Kawasaki KLV1000 (2004) [400/529] Starter relay inspection
![Kawasaki KLV1000 (2004) [400/529] Starter relay inspection](/views2/1121213/page400/bg190.png)

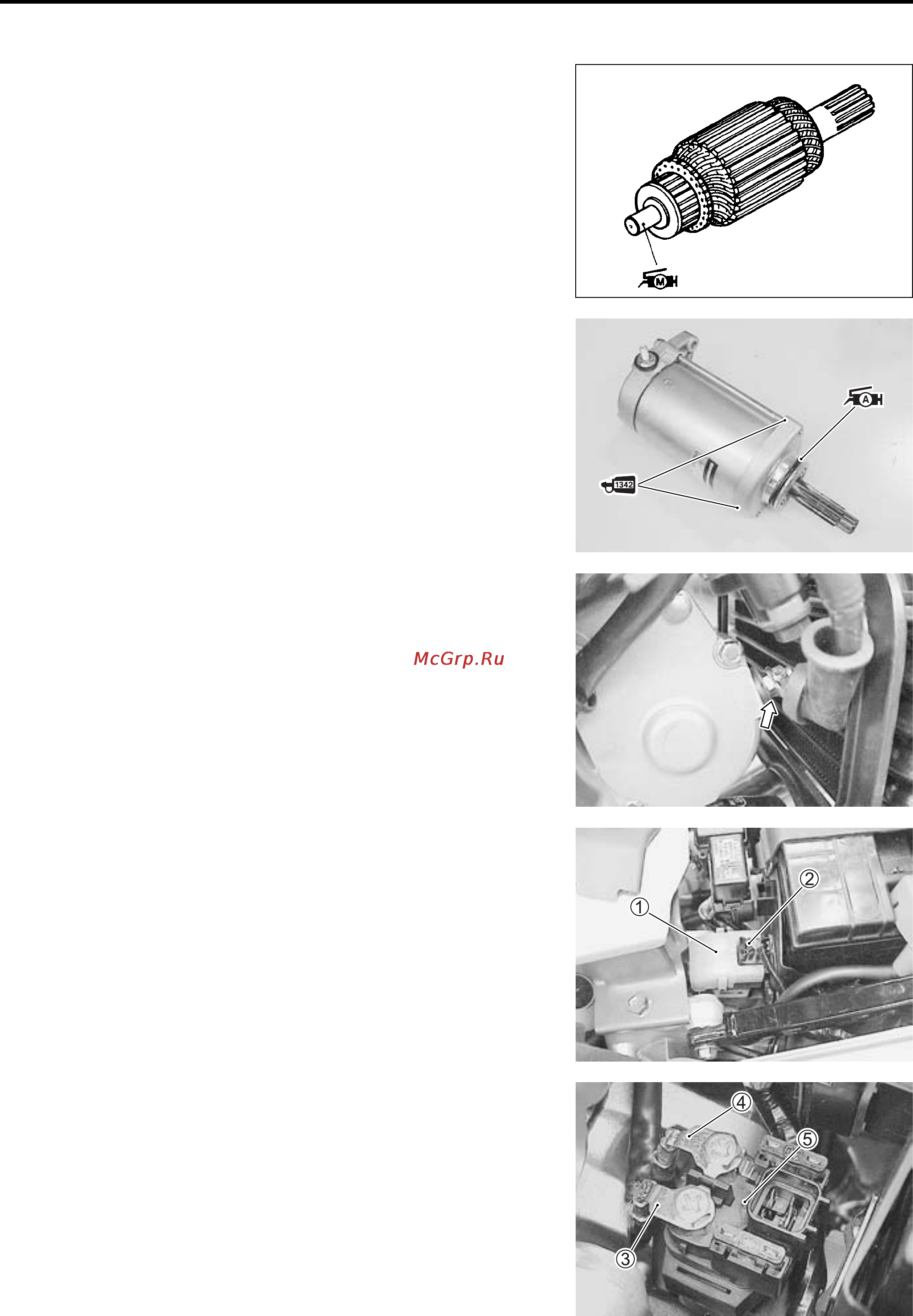

ELECTRICAL SYSTEM 7-13
• Apply a small quantity of SUZUKI MOLY PASTE to the arma-
ture shaft.
Z 99000-25140: SUZUKI MOLY PASTE
• Apply a small quantity of THREAD LOCK “1342” to the starter
motor housing bolts.
H 99000-32050: THREAD LOCK “1342”
• Apply SUZUKI SUPER GREASE “A” to the O-ring.
X 99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
• Tighten the starter motor lead wire nut to the specified torque.
" Starter motor lend wire nut: 5 N·m (0.5 Kgf-m, 3.7 lb-ft)
STARTER RELAY INSPECTION
• Remove the seat. (6-4)
• Disconnect the battery
lead wire from the battery.
• Remove the starter relay cover
.
• Disconnect the starter relay coupler
.
• Disconnect the starter motor lead wire
, battery lead wire
.
• Remove the starter relay
.
