CHASSIS 6-69

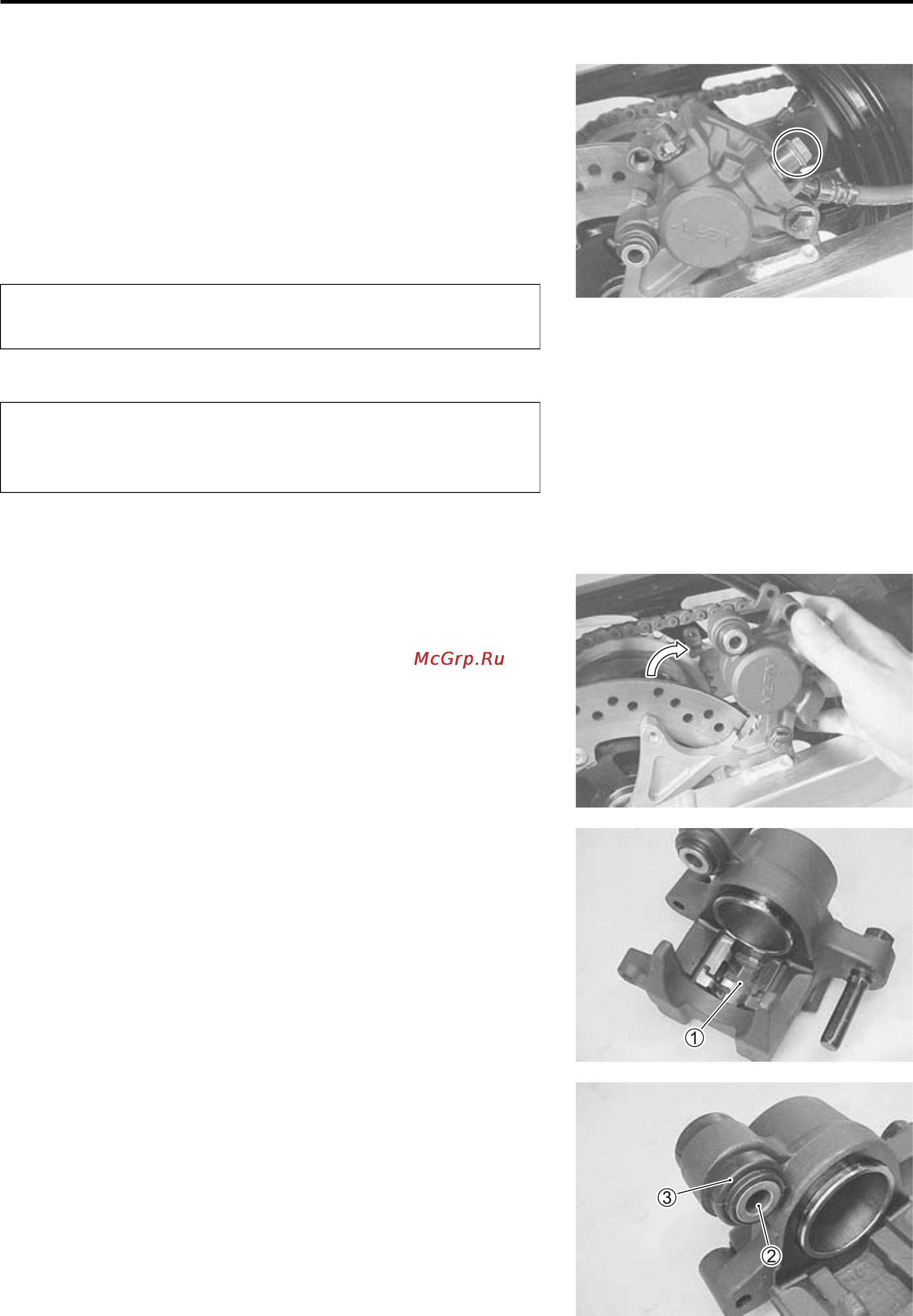

CALIPER REMOVAL AND DISASSEMBLY
• Drain the brake fluid. (6-68)
• Remove the brake pads. (6-67)
• Place a rag underneath the union bolt to catch any spilt brake
fluid.
• Disconnect the brake hose by removing the brake hose union
bolt.
#
• Pivot the caliper up and remove the caliper from the caliper
bracket.
• Remove the pad spring
.
• Remove the spacer
and boot
from the caliper.
Do not reuse the brake fluid left over from previous
servicing and stored for long periods.
Brake fluid, if it leaks, will interfere with safe running
and discolor painted surfaces. Check the brake hose
and hose joints for cracks and fluid leakage.
