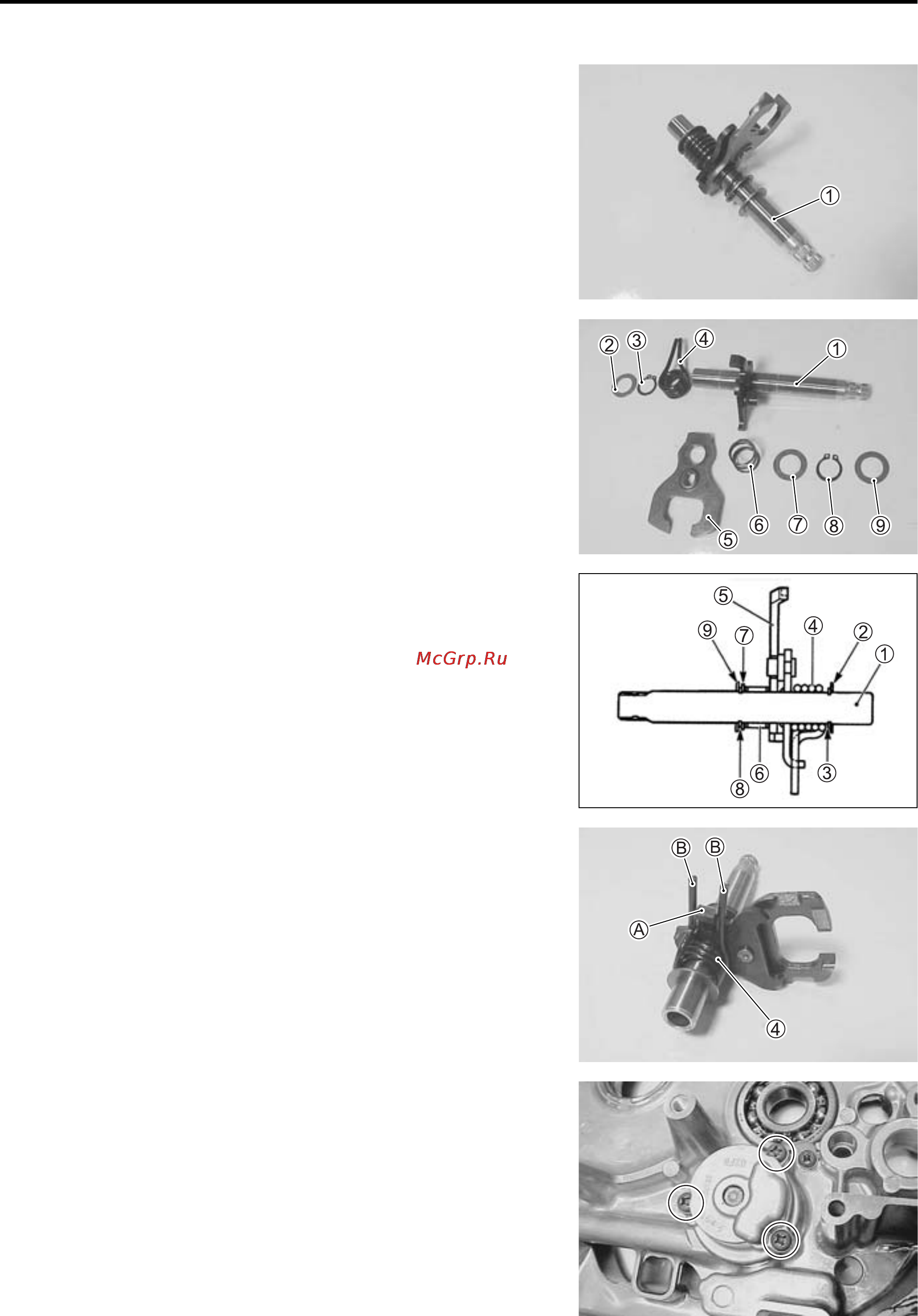

3-66 ENGINE
GEARSHIFT
GEARSHIFT SHAFT/GEARSHIFT ARM DISASSEMBLY
• Remove the following parts from the gearshift shaft/gearshift
arm
.
Washer
Plate return spring
Snap ring
Washer
Gearshift shaft return spring
Snap ring
Gearshift cam drive plate
Washer
\ 09900-06107: Snap ring pliers
GEARSHIFT SHAFT/GEARSHIFT ARM INSPECTION
Check the gearshift shaft/gearshift arm
for wear or bend.
RETURN SPRINGS INSPECTION
Check the return springs,
and
, for damage or fatigue.
GEARSHIFT SHAFT/GEARSHIFT ARM REASSEMBLY
• Install the following parts to the gearshift shaft/gearshift arm
as shown in the right illustration.
Washer
Plate return spring
Snap ring
Washer
Gearshift shaft return spring
Snap ring
Gearshift cam drive plate
Washer
\ 09900-06107: Snap ring pliers
NOTE:
When installing the gearshift shaft return spring
, position the
stopper
" of the gearshift arm between the shaft return spring
ends
#.
CRANKCASE
OIL PUMP
• Remove the oil pump.
