CHASSIS 6-55
CUSHION LEVER AND CUSHION ROD

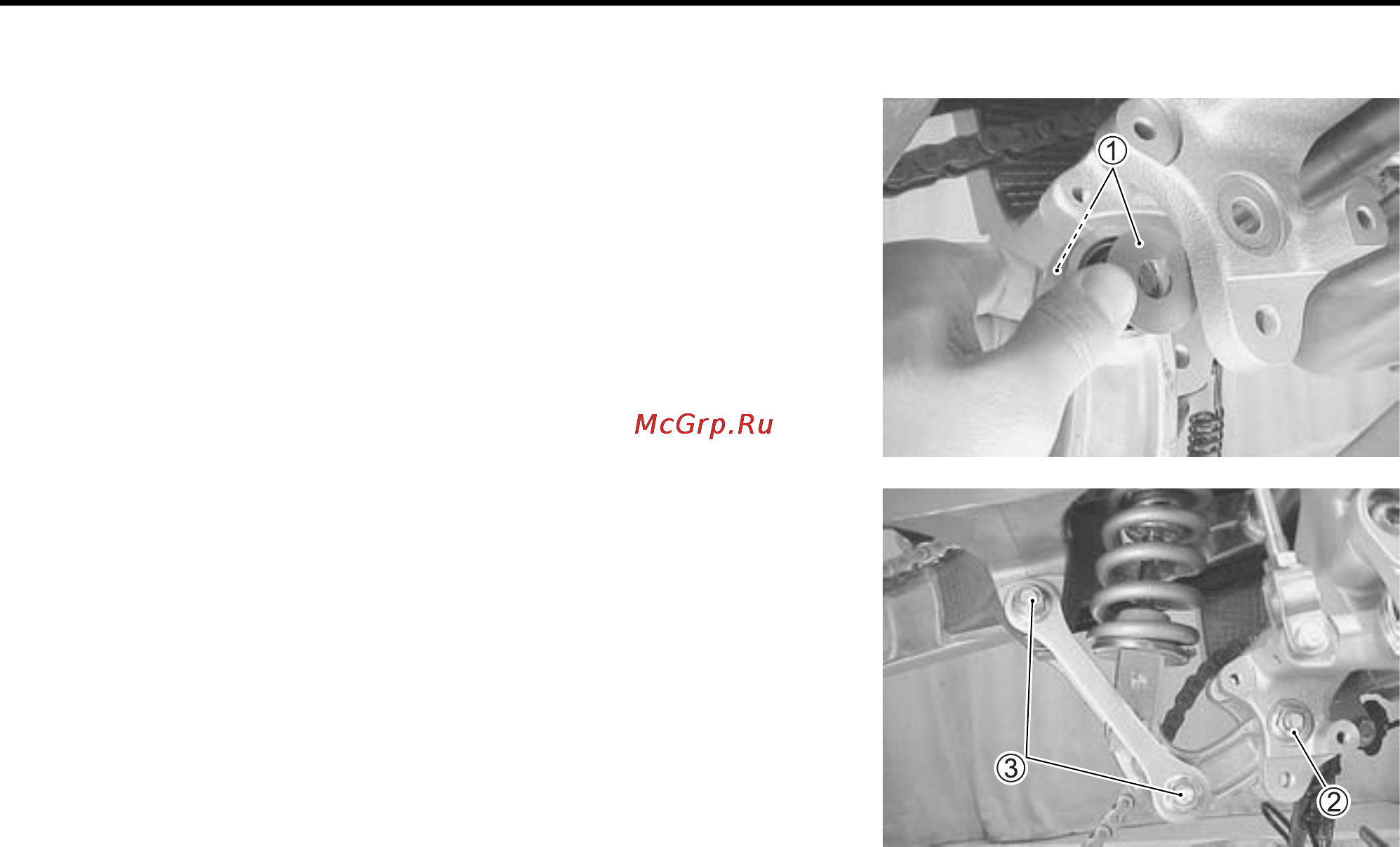

• Install the washers
and cushion lever.
NOTE:
Insert the cushion lever mounting bolt from the left side.
(6-52)
• Install the cushion rod and rear shock absorber.
NOTE:
Insert the cushion rod mounting bolts and rear shock absorber
mounting bolts from the left side. (6-52)
• Tighten the cushion lever nut
, cushion rod nut
and rear
shock absorber nut to the specified torque.
" Cushion lever mounting nut:
78 N·m (7.8 kgf-m, 56.5 lb-ft)
Cushion rod nut: 78 N·m (7.8 kgf-m, 56.5 lb-ft)
Rear shock absorber mounting nut:
50 N·m (5.0 kgf-m, 36.0 lb-ft)
• Install the rear brake hose guide.
• Install the rear wheel. (6-41)
• Install the exhaust pipe and muffler. (3-15)
FINAL INSPECTION AND ADJUSTMENT
After installing the rear suspension and wheel, the following
adjustments are required before driving.
* Drive chain: 2-19
* Tire pressure: 6-86
* Chassis bolts and nuts: 2-27
