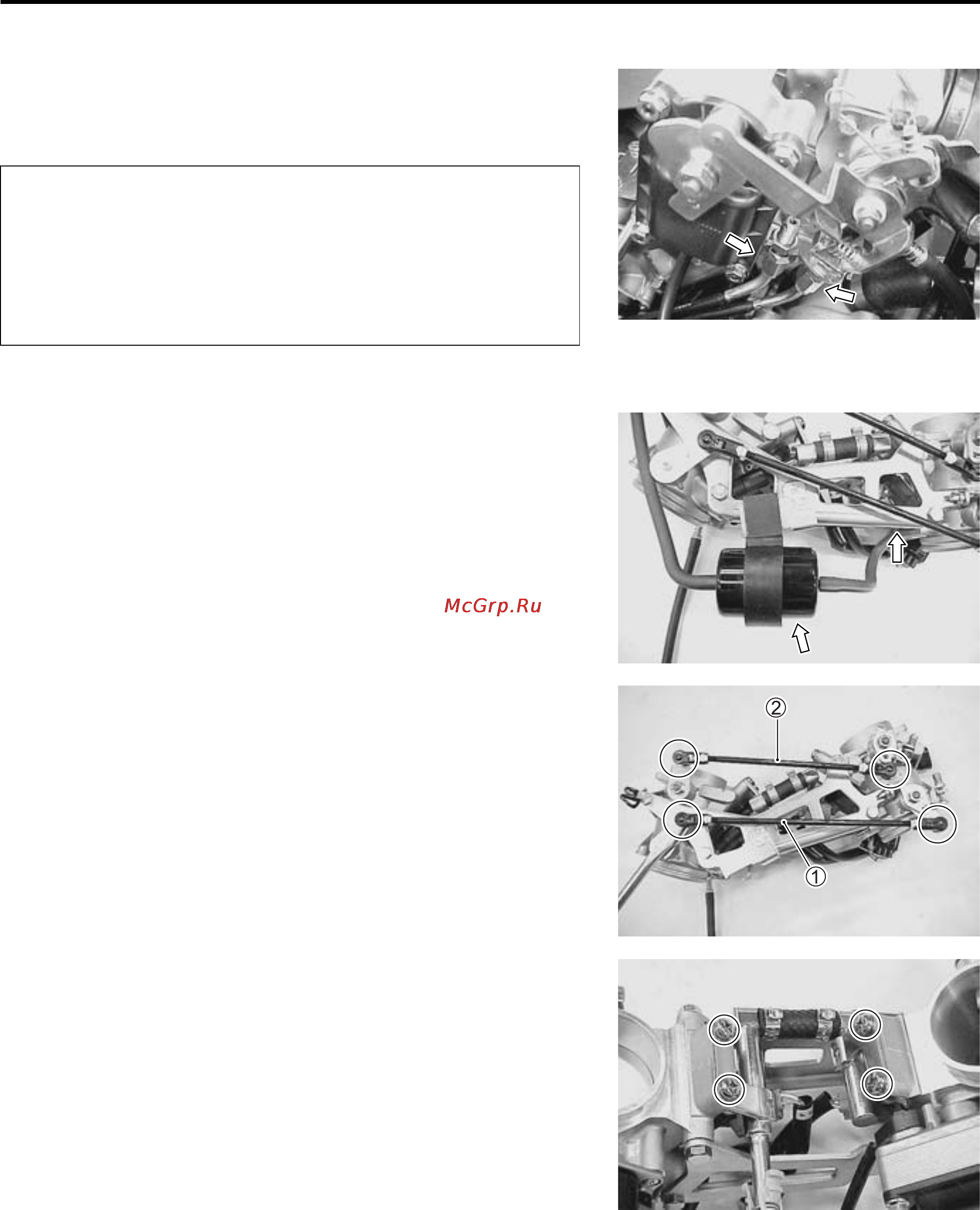

FI SYSTEM 4-61
• Disconnect the throttle cables from their drum.
• Dismount the throttle body assembly.
THROTTLE BODY DISASSEMBLY
• Remove the IAP sensor vacuum damper and its hose.
• Remove the throttle link rod
and secondary throttle link rod
.
NOTE:
The throttle link rod
is longer than the secondary throttle link
rod
.
• Remove the fuel delivery pipe.
* Be careful not to damage the throttle cable bracket
and fast idle lever when dismounting or remounting
the throttle body assembly.
* After disconnecting the throttle cables, do not snap
the throttle valve from full open to full close. It may
cause damage to the throttle valve and throttle body.
