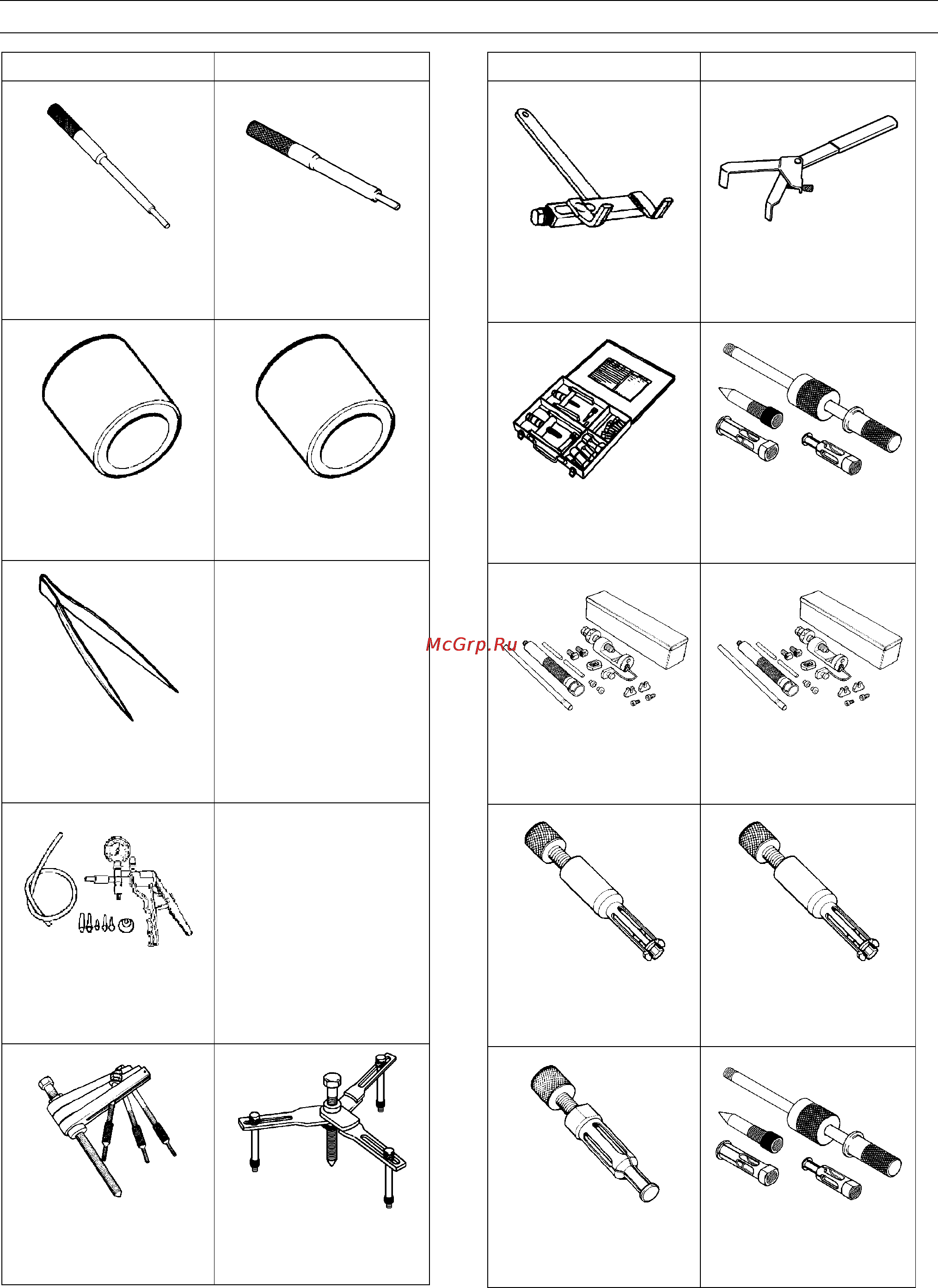

SERVICING INFORMATION 8-6
Base Manual Tools
Kawasaki Recommend tools
09916-44910
Valve guide
remover/installer
57001-1021
Valve guide arbor,
Ǿ5.5
09916-53340
Attachment
57001-S074
Attachment
09916-84511
Tweezers
A suitable
commercially available
tweezers
09917-47010
Vacuum pump gauge
A suitable
commercially
available tool
09920-13120
Crankcase
separating tool
57001-1362
Crankcase splitting
tool assembly
Base Manual Tools
Kawasaki Recommend tools
09920-53740
Clutch sleeve hub
holder
57001-1243
Clutch holder
09921-20240
Bearing remover set
57001-1058
Oil seal & bearing
remover
09922-22711
Drive chain cutting and
joining tool
A suitable commercially
available tool
09923-73210
Bearing remover
57001-S037
Bearing Remover,
I 17 Max.
09923-74511
Bearing puller
57001-1058
Oil seal & bearing
remover
