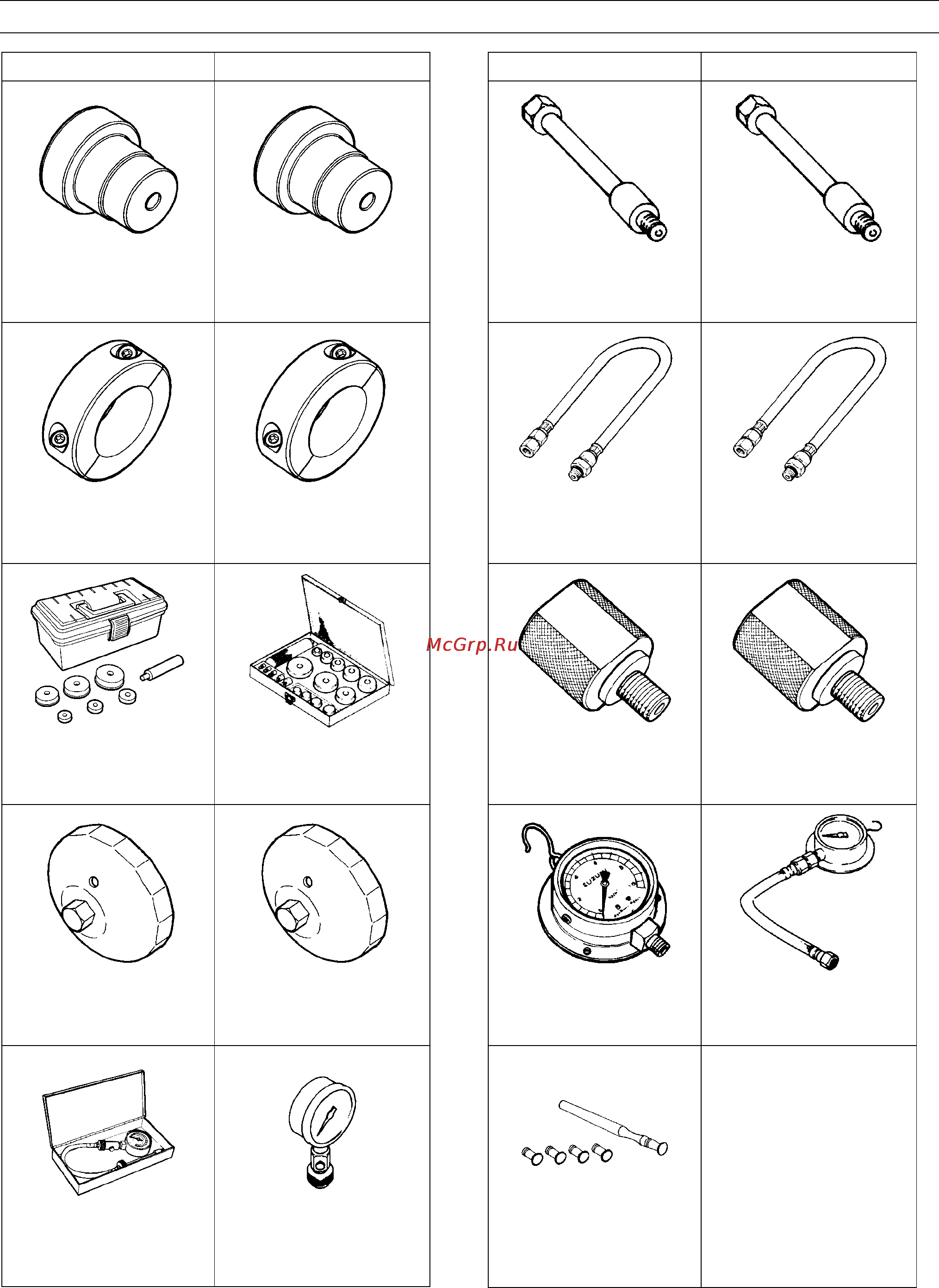

SERVICING INFORMATION 8-4
Base Manual Tools
Kawasaki Recommend tools
09913-60230
Journal bearing
remover/installer
57001-S065
Journal bearing
remover/installer
09913-60240
Journal bearing holder
57001-S066
Journal bearing holder
09913-70210
Bearing installer set
57001-1129
Bearing driver set
09915-40610
Oil filter wrench
57001-S067
Oil filter wrench
09915-64510
Compression gauge
set
57001-221
Compression gauge,
20 kgf/cm
2
Base Manual Tools
Kawasaki Recommend tools
09915-72410
Oil pressure gauge
attachment
57001-S068
Oil pressure gauge
attachment
09915-74521
Oil pressure gauge
hose
57001-S058
Oil pressure gauge
hose
09915-74532
Oil pressure gauge
adapter
57001-S069
Oil pressure gauge
adapter
09915-77331
Meter (for high
pressure)
57001-164
Oil pressure gauge,
10 kgf/cm
2
09916-10911
Valve lapper set
A suitable
commercially available
valve lapper
