5-12 COOLING AND LUBRICATION SYSTEM
INSTALLATION

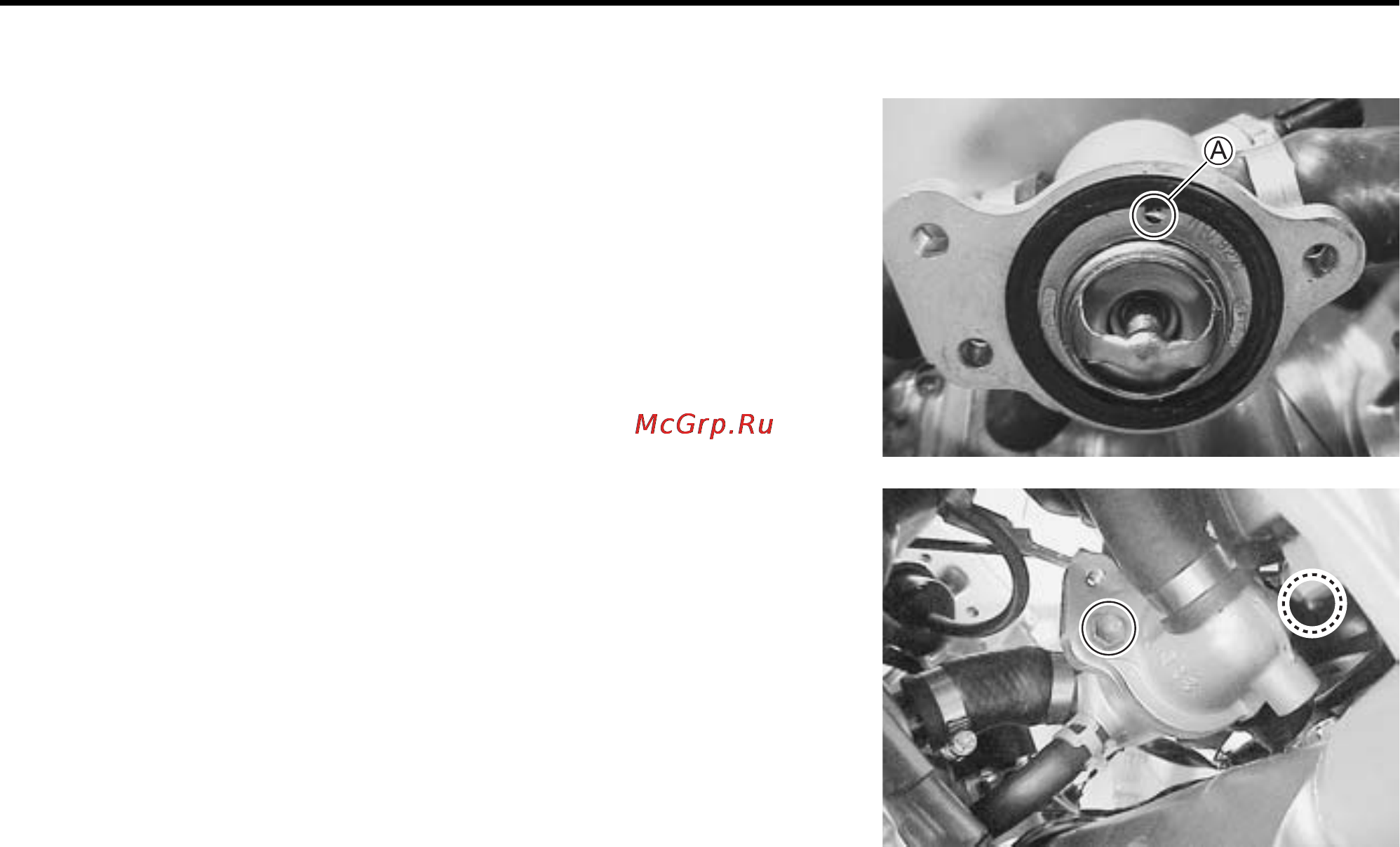

• Install the thermostat.
NOTE:
The jiggle valve
" of the thermostat faces upside.
• Install the thermostat case.
• Tighten the thermostat case bolts to the specified torque.
" Thermostat case bolt: 10 N·m (1.0 kgf-m, 7.0 lb-ft)
• Pour engine coolant. (2-17)
