Kawasaki KLV1000 (2004) [143/529] Transmission
![Kawasaki KLV1000 (2004) [143/529] Transmission](/views2/1121213/page143/bg8f.png)
3-56 ENGINE
TRANSMISSION

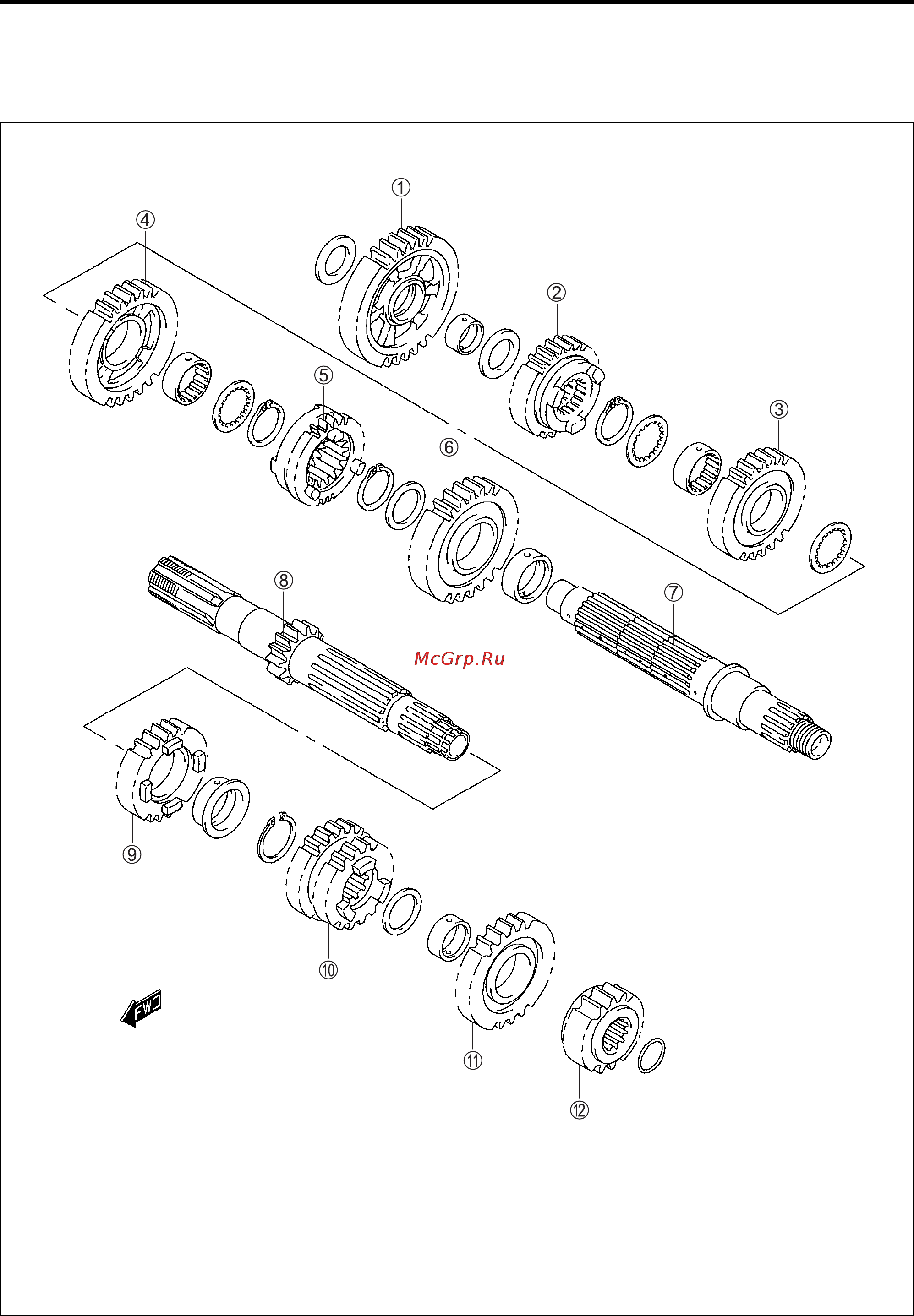

CONSTRUCTION
1st driven gear
5th driven gear
4th driven gear
3rd driven gear
6th driven gear
2nd driven gear
Drive shaft
Countershaft
5th drive gear
3rd & 4th drive gear
" 6th drive gear
# 2nd drive gear
