4-72 FI SYSTEM
THROTTLE VALVE SYNCHRONIZATION
Check and adjust the throttle valve synchronization between two
cylinders.
\ 09913-13121: Vacuum balancer gauge
NOTE:
Before balancing the throttle valves, calibrate each vacuum bal-
ancer gauge.
• Remove the fuel tank and air cleaner box. (4-52 and -60)

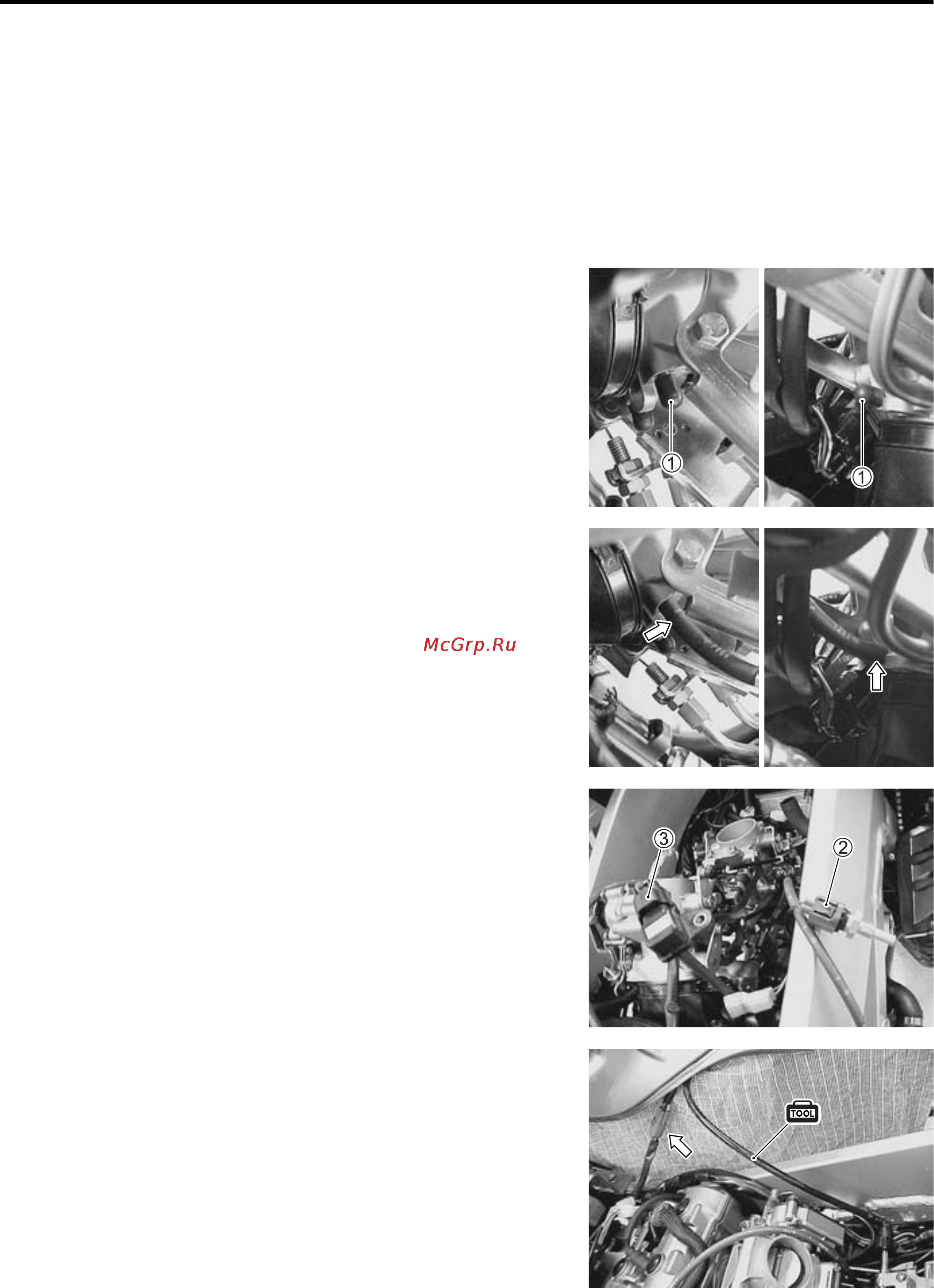

• Remove the rubber caps
from the vacuum nipples on the
respective throttle bodies and connect the vacuum balancer
gauge hoses to each vacuum nipple.
• Connect the removed IAT sensor
and IAP sensor
.
• Connect the fuel tank and fuel delivery pipe with the fuel feed
hose (special tool).
\ 09940-40220: Fuel pressure gauge hose attachment
• Connect the fuel pump lead wire coupler.
