ENGINE 3-3
ENGINE REMOVAL AND INSTALLATION
ENGINE REMOVAL
Before taking the engine out of the frame, wash the engine
using a steam cleaner. Engine removal is sequentially explained
in the following steps. Reinstall the engine by reversing the
removal procedure.

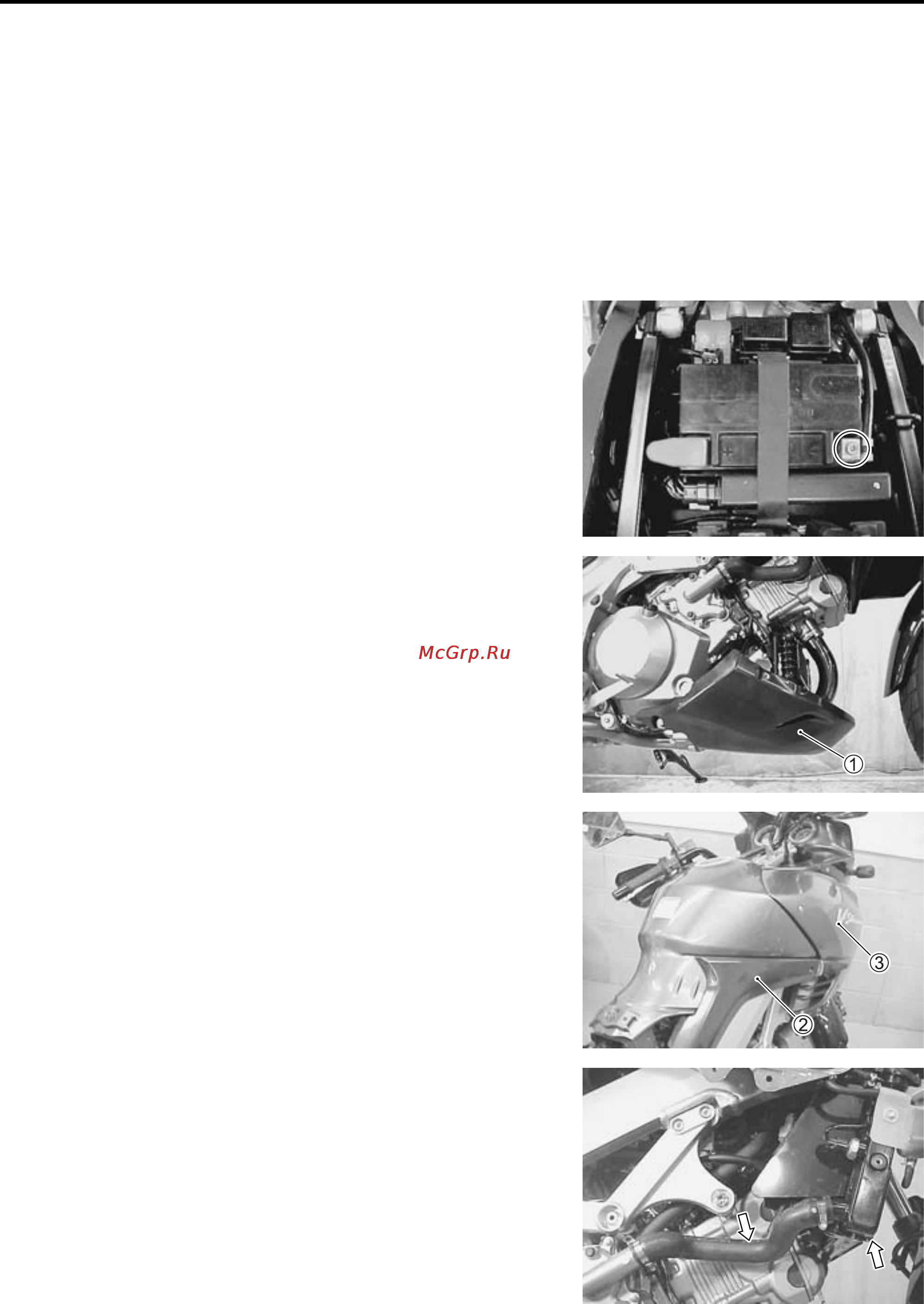

• Drain engine oil. (2-12)
• Drain engine coolant. (2-17)
• Remove the seat. (6-4)
• Disconnect the battery
lead wire.
• Remove the engine under cover
.
• Remove the fuel tank side covers
, cowlings
and inner
cowling. (6-6)
• Remove the radiator and water hoses.
