3-64 ENGINE

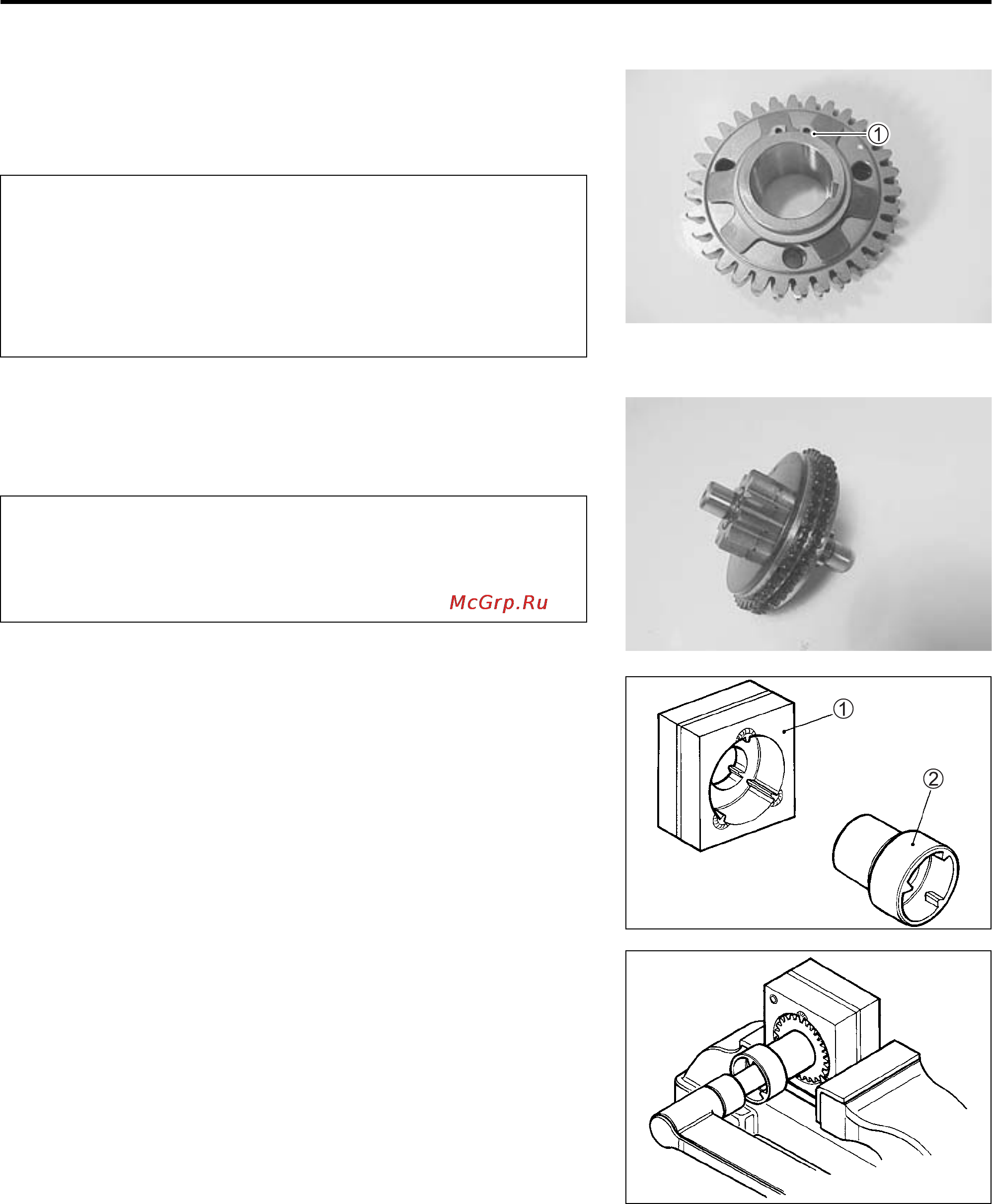

• Install the snap ring

 completely with the special tool.

\ 09900-06107: Snap ring pliers



STARTER TORQUE LIMITER

STARTER TORQUE LIMITER INSPECTION



• Check the slip torque with the special tools.

\ 09930-73110: Starter torque limiter holder



09930-73120: Starter torque limiter socket



 Slip torque

Standard: 20 – 45 N·m

(2.0 – 4.5 kgf-m, 14.5 – 32.5 lb-ft)

• Set the starter torque limiter to the special tools and vise as

shown in the illustration.

• If the slip torque is not within the specification, replace the

starter torque limiter with a new one.

* Never reuse a snap ring.

* When installing a new snap ring, care must be taken

not to expand the end gap larger than required to slip

a snap ring over the gear.

* After installing a snap ring, always insure that it is

completely seated in its groove and securely fitted.

Do not attempt to disassemble the starter torque lim-

iter.

The starter torque limiter is available only as an

assembly.
