CHASSIS 6-81

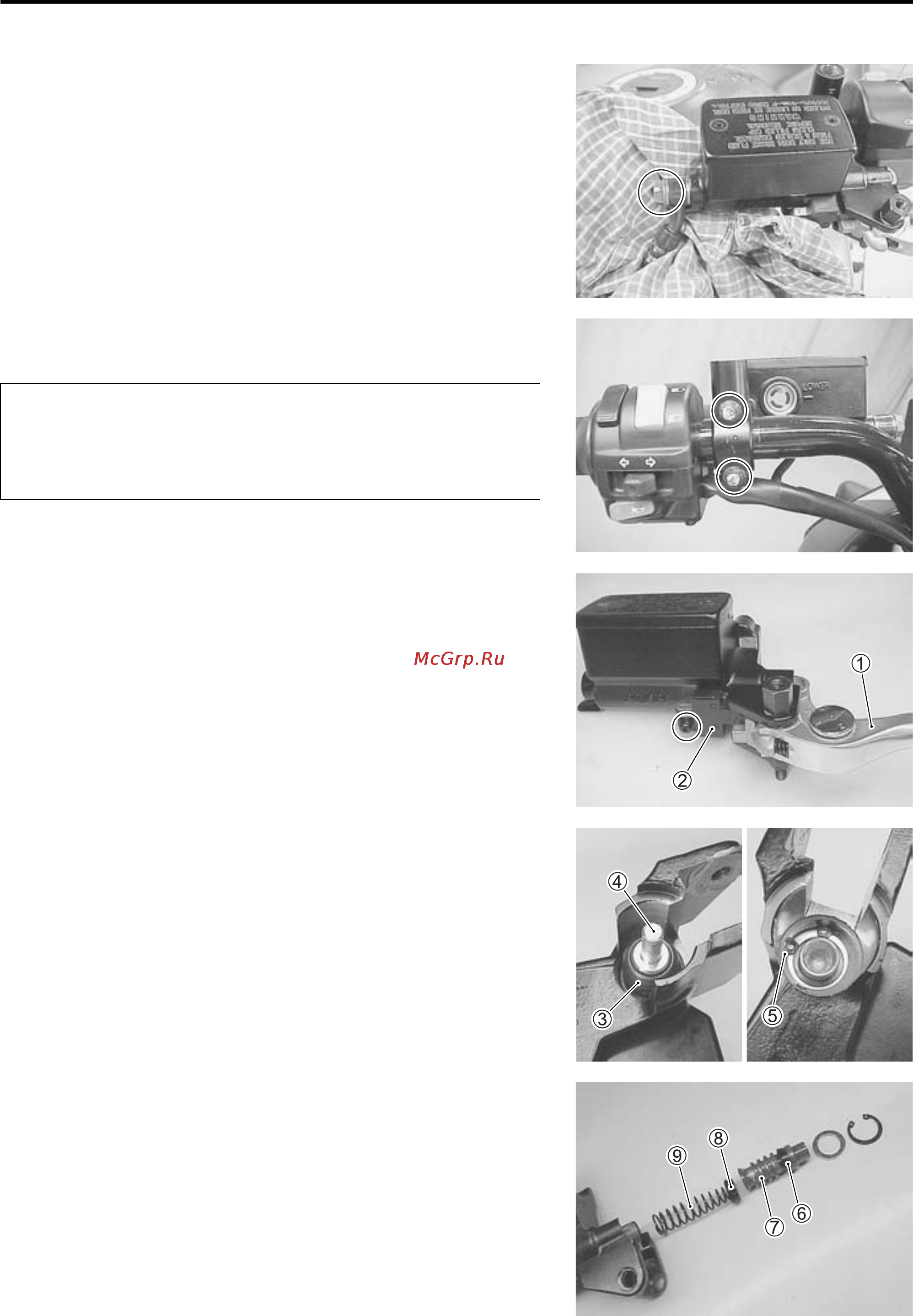

CLUTCH MASTER CYLINDER REMOVAL
AND DISASSEMBLY
• Remove the rear view mirror and clutch lever cover.
• Drain the clutch fluid. (6-78)
• Disconnect the clutch lever position switch lead wires.
• Place a rag underneath the union bolt on the master cylinder
to catch spilled drops of brake fluid. Remove the union bolt
and disconnect the clutch hose from the master cylinder.
• Remove the clutch master cylinder.
• Remove the clutch lever
and clutch lever position switch
.
• Remove the boot
and push rod
.
• Remove the snap ring
.
• Remove the piston/cup set
Secondary cup
Piston
Primary cup
Spring
Completely wipe off any brake fluid adhering to any
parts of motorcycle. The fluid reacts chemically with
paint, plastics, rubber materials, etc. and will damage
them severely.
