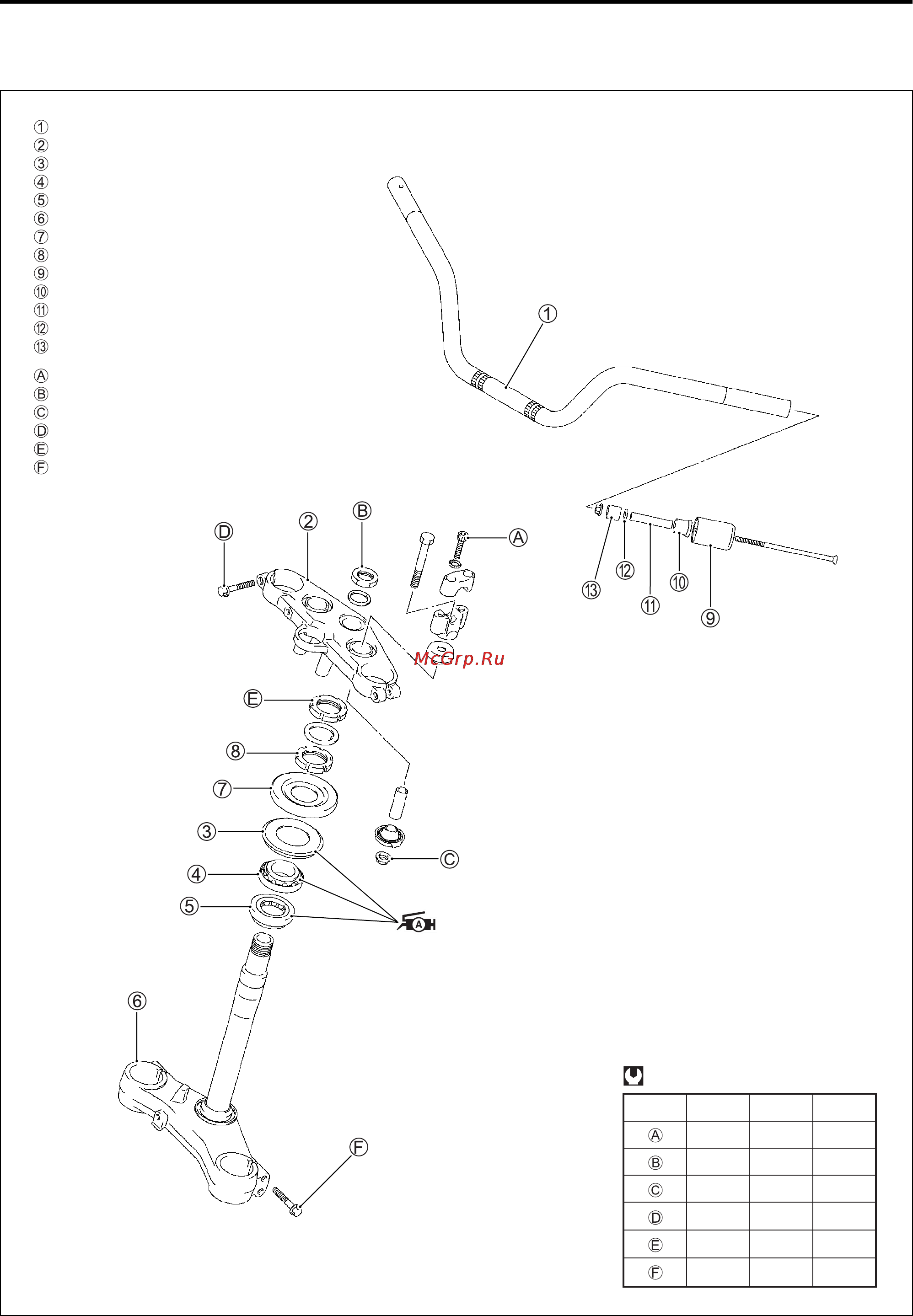

6-24 CHASSIS
STEERING AND HANDLEBAR
CONSTRUCTION
ITEM N·m kgf-m lb-ft
23 2.3 16.5
90 9.0 65.0
45 4.5 32.5
23 2.3 16.5
80 8.0 58.0
23 2.3 16.5
Handlebars
Steering stem upper bracket
Dust seal
Bearing upper
Bearing lower
Steering stem lower bracket
Dust cover
Steering stem nut
Handlebar balancer
Expander
Spacer
Washer
Expander
Handlebar clamp bolt
Steering stem head nut
Handlebar holder nut
Front fork upper clamp bolt
Steering stem lock nut
Front fork lower clamp bolt
