CHASSIS 6-71

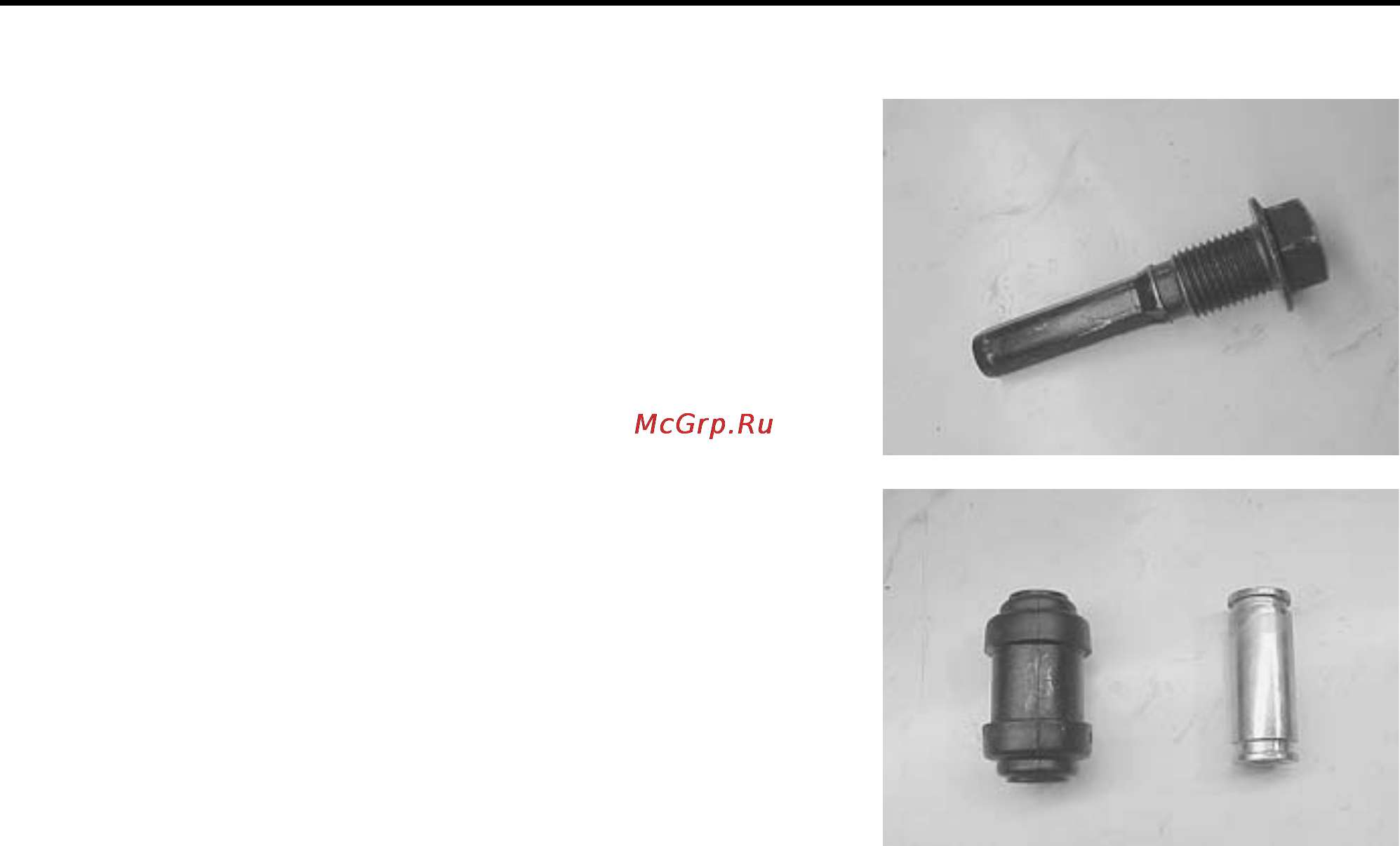

BRAKE CALIPER SLIDING PIN
Inspect the brake caliper sliding pin for wear and other damage.
If any damage is found, replace the sliding pin with a new one.
Inspect the boot and spacer for damage and wear. If any dam-
age is found, replace boot and spacer with new ones.
BRAKE DISC INSPECTION
Inspect the rear brake disc in the same manner as the front
brake disc. (6-52)
Service Limit
Rear disc thickness: 4.5 mm (0.18 in)
Rear disc runout: 0.30 mm (0.012 in)
* Brake disc removal (6-34)
* Brake disc installation (6-40)
