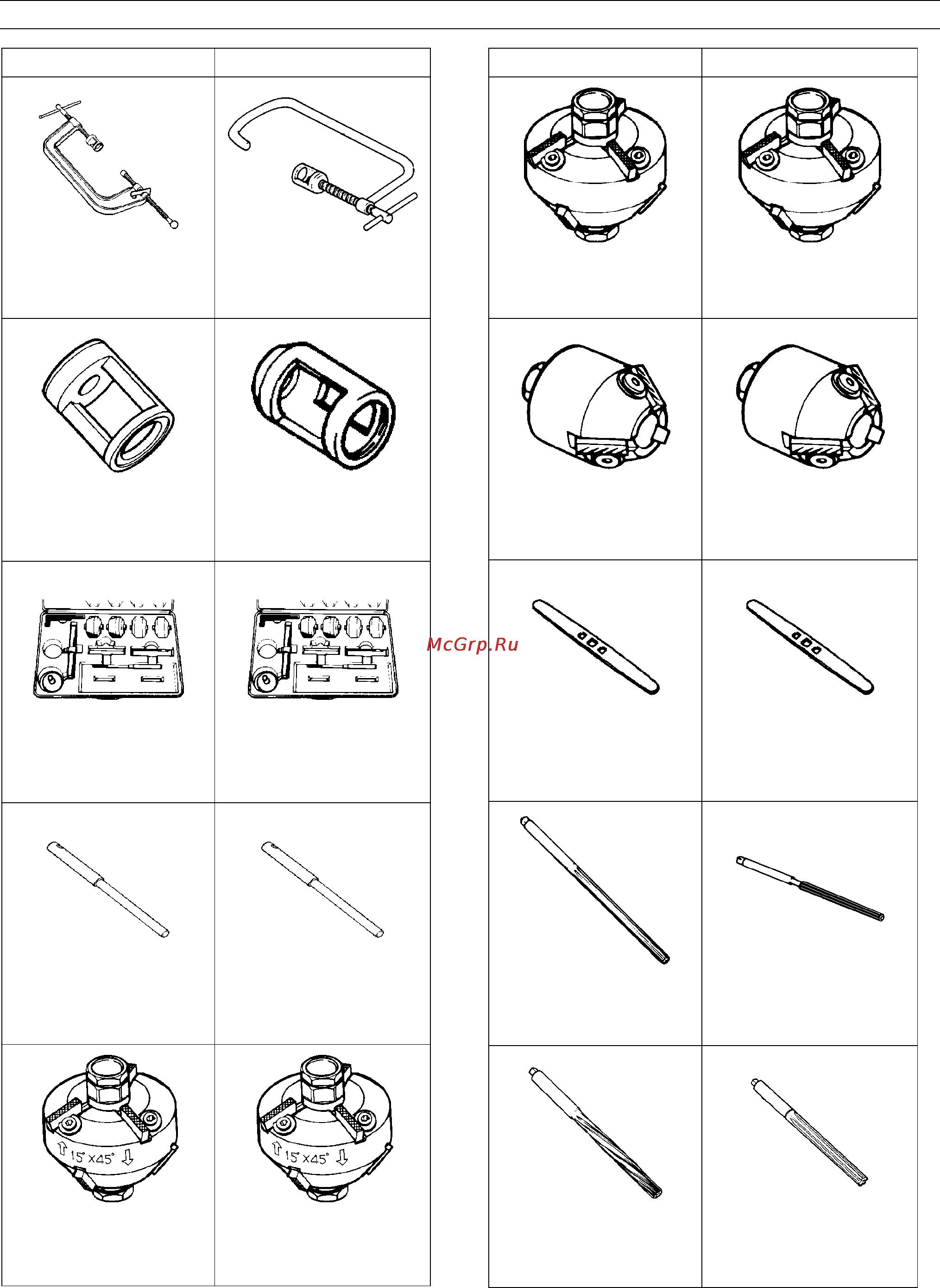

SERVICING INFORMATION 8-5
Base Manual Tools
Kawasaki Recommend tools
09916-14510
Valve spring
compressor presser
57001-241
Valve spring
compressor assembly
09916-14910
Valve spring
compressor attachment
57001-1586
Valve spring compressor
adapter, I24
09916-21111
Valve seat cutter set
57001-S011
Valve seat cutter set
09916-24480
Solid pilot
(N-140-5.5 mm)
57001-S070
Solid pilot
(N-140-5.5 mm)
09916-24210
Valve seat cutter
(N-615)
57001-S071
Valve seat cutter
(N-615)
Base Manual Tools
Kawasaki Recommend tools
09916-24810
Valve seat cutter
(N-626)
57001-S072
Valve seat cutter
(N-626)
09916-27710
Valve seat cutter
(N-211)
57001-S073
Valve seat cutter
(N-211)
09916-34542
Reamer handle
57001-S014
Reamer handle
09916-34550
Valve guide reamer
(5.5 mm)
57001-1079
Valve guide reamer,
Ǿ5.5
09916-34580
Valve guide reamer
(10.8 mm)
57001-S039
Valve guide reamer,
(10.8 mm)
