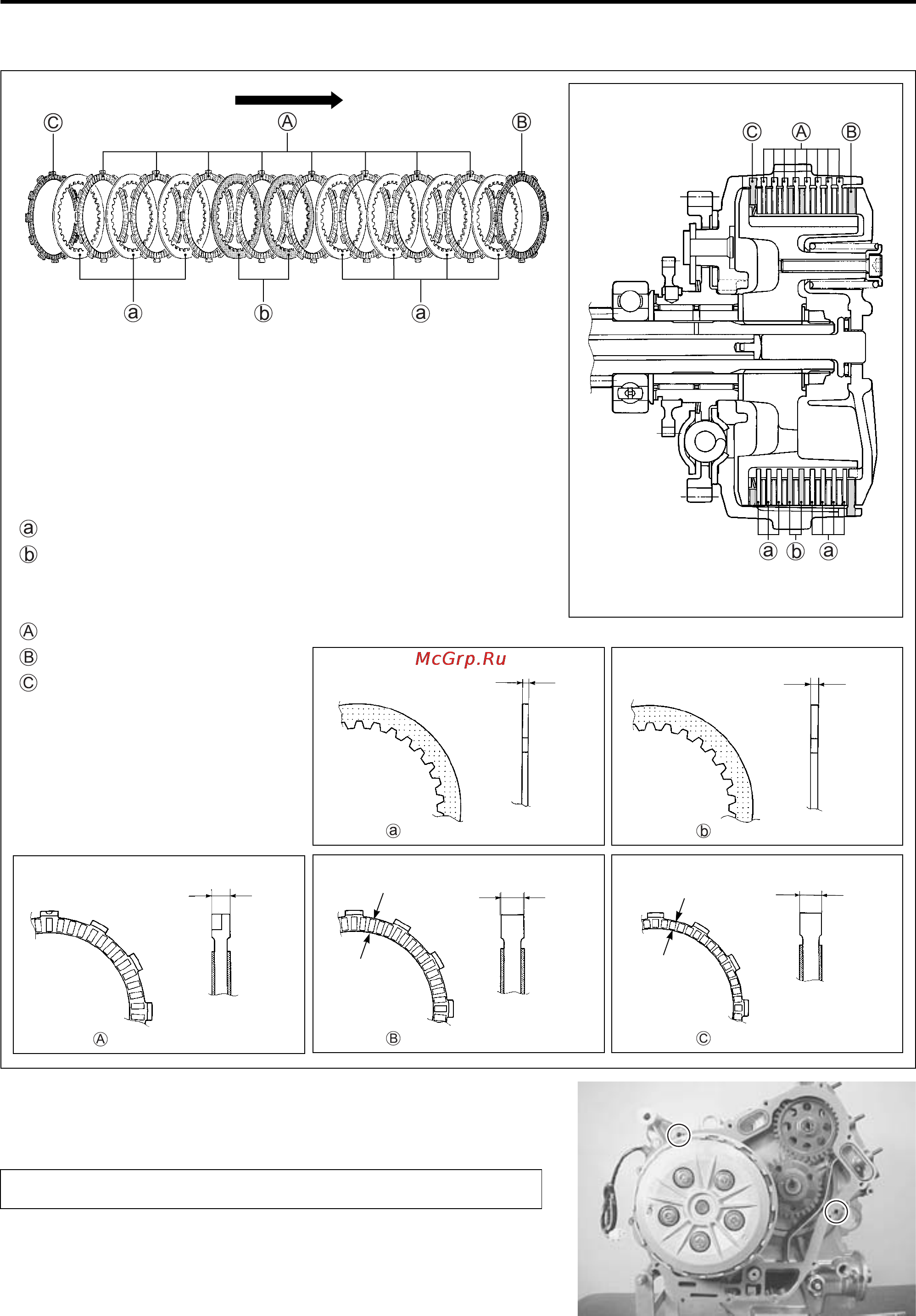

ENGINE 3-89
CLUTCH COVER
• Install the gasket and dowel pins.
Direction of outside
NOTE:
*The No.2 Driven plate should be installed between 4th to 7th
position from the clutch sleeve hub.
*Set the numbers of driven plate to the standard specifications
when replacing the driven plates with the new ones.
DRIVEN PLATE:
No.1 Driven plate...........5 – 8 pcs. (Standard: 7pcs.)
No.2 Driven plate...........1 – 4 pcs. (Standard: 2pcs.)
DRIVE PLATE:
No.1 Drive plate...........8 pcs.
No.2 Drive plate...........1 pc.
No.3 Drive plate...........1 pc.
2.0 mm
(0.08 in)
2.3 mm
(0.09 in)
2.8 mm
(0.11 in)
3.7 mm
(0.15 in)
3.7 mm
(0.15 in)
12 mm
(0.47 in)
8.0 mm
(0.31 in)
No.1 Driven plate No.2 Driven plate
No.3 Drive plate No.2 Drive plate
No.1 Drive plate
Use the new gasket to prevent oil leakage.
