3-88 ENGINE

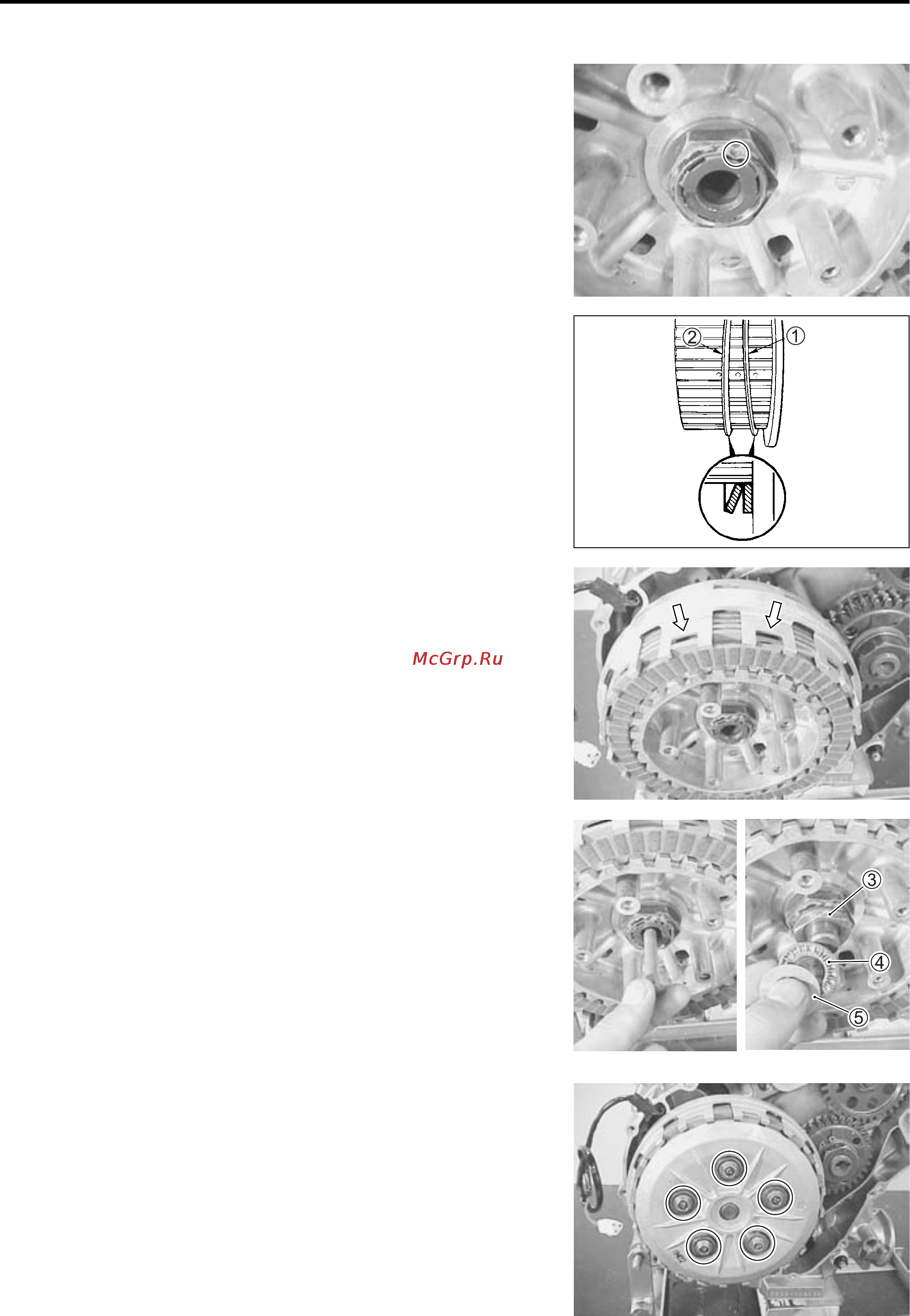

• Lock the clutch sleeve hub nut with a center punch.
• Install the spring washer seat
and spring washer
onto
the clutch sleeve hub correctly.
• Insert the clutch drive plates and driven plates one by one into
the clutch sleeve hub in the prescribed order, No.3 drive plate
being inserted first.
NOTE:
Insert the outermost No.2 drive plate claws to the other slits of
clutch housing as shown.
• Install the clutch push rod into the countershaft.
• Install the clutch push piece
, bearing
and thrust washer
.
• Tighten the clutch spring set bolts diagonally to the specified
torque while holding the generator rotor with the special tool.
" Clutch spring set bolts: 10 N·m (1.0 kgf-m, 7.0 lb-ft)
\ 09930-44541: Rotor holder
