10-14 DL1000K3 (’03-MODEL)
FRONT FORK

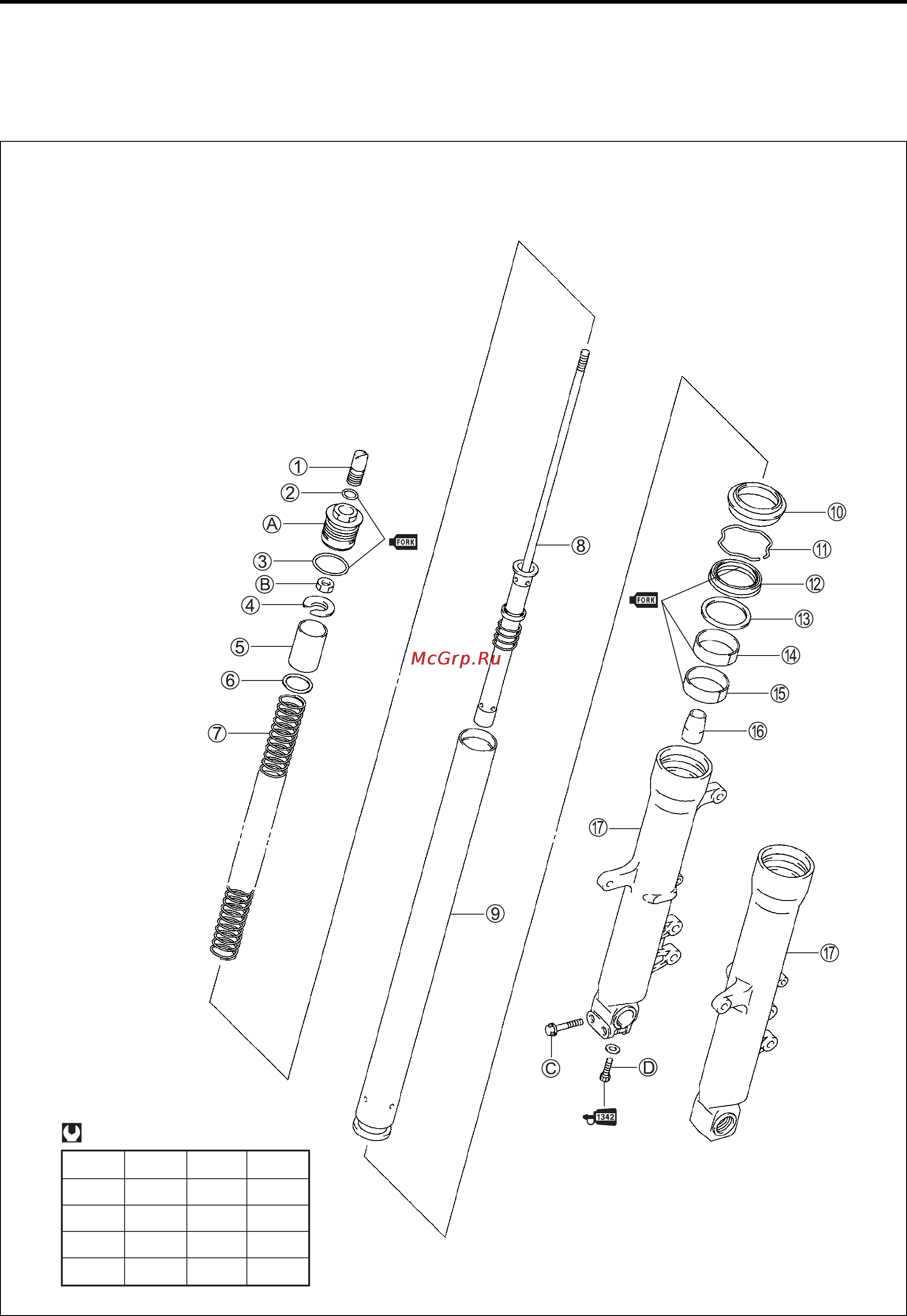

CONSTRUCTION
Spring adjuster
O-ring
O-ring
Spring seat
Spacer
Washer
Spring
Inner rod/damper rod (cartridge)
Inner tube
Dust seal
" Oil seal stopper ring
# Oil seal
$ Oil seal retainer
% Guide metal
& Slide metal
' Oil lock piece
( Outer tube
" Front fork cap bolt
# Inner rod lock nut
$ Front axle pinch bolt
% Damper rod bolt
ITEM N·m kgf-m lb-ft
" 23 2.3 16.5
# 20 2.0 14.5
$ 23 2.3 16.5
% 20 2.0 14.5
