Kawasaki KLV1000 (2004) [521/529] Wire harness routing
![Kawasaki KLV1000 (2004) [521/529] Wire harness routing](/views2/1121213/page521/bg209.png)
11-22 DL1000K4 (’04-MODEL)

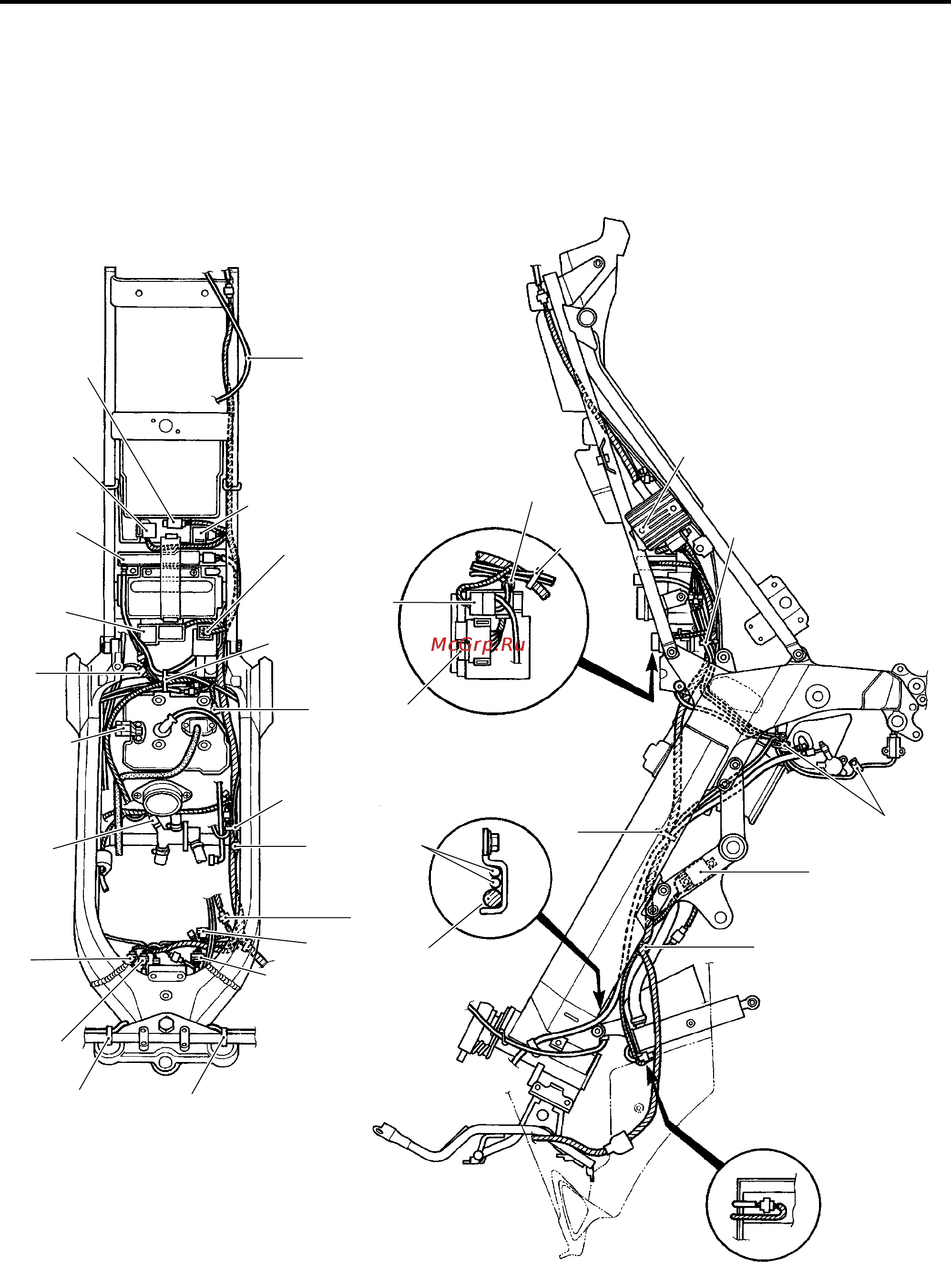

WIRE HARNESS ROUTING
Starter relay
Fuse box
Regulator/rectifier
Clamp
Clamp
Clamp
Clamp
Handlebar switch
coupler (L)
Injector coupler
STPS coupler
Clamp
Speed sensor
coupler
Fuel pump coupler
Clamp
Starter relay
AP sensor
Seat lock cable
TO sensor
FP relay
ECM
Fuse box
HO2 sensor coupler
CMP sensor
ECT sensor
Handlebar switch coupler (R)
Ignition switch coupler
Fixed clamp
Ignition coil
Clamp
Fixed clamp
Throttle cables
Handlebar switch (L)
lead wires
Clamp
