7-10 ELECTRICAL SYSTEM

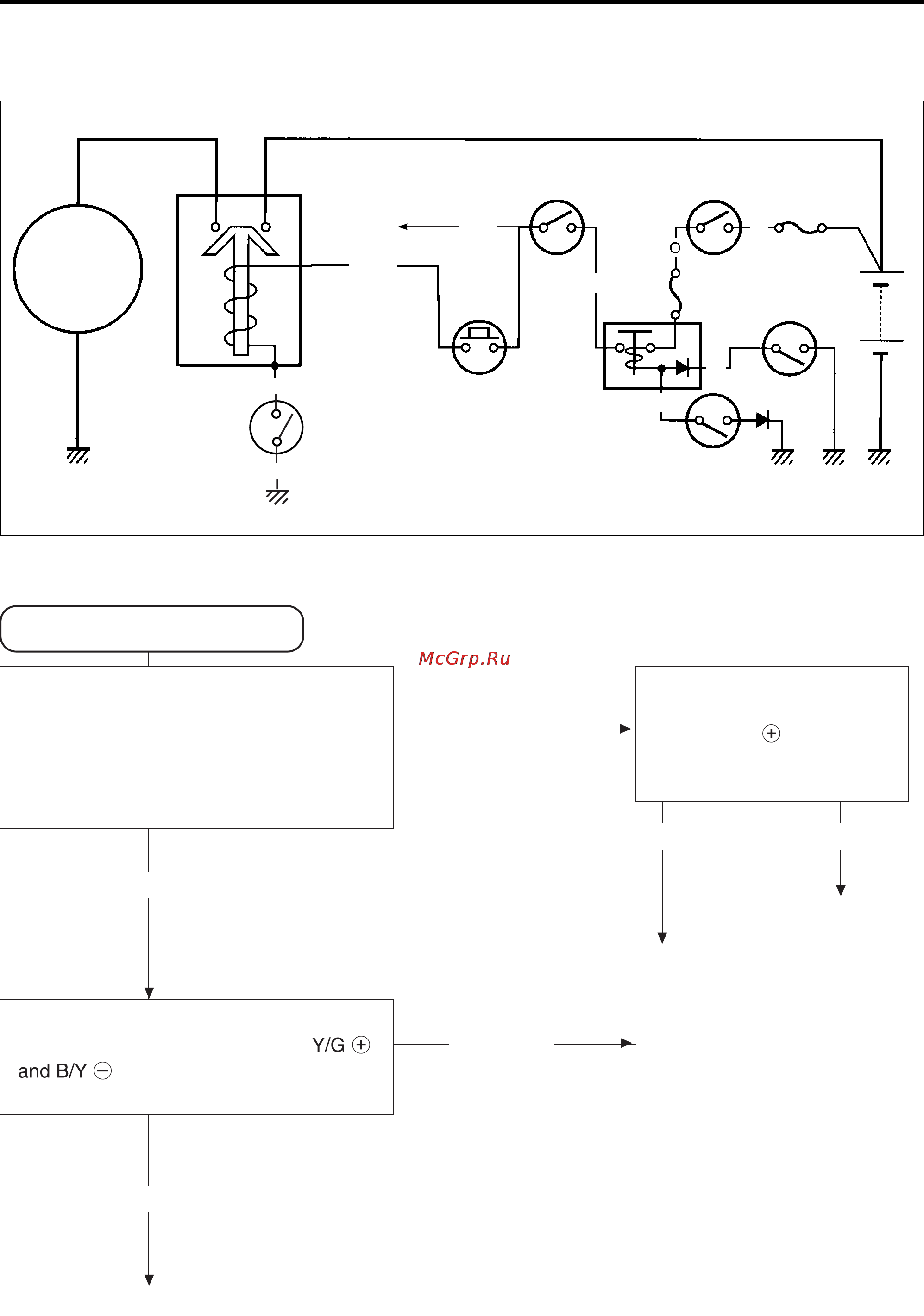

STARTER SYSTEM AND SIDE-STAND/IGNITION INTERLOCK
SYSTEM
TROUBLE SHOOTING
Starter
motor
Starter relay
B/Y
To ECM and
Ignition coil
O/W
Y/G
Clutch lever
position switch
B/W
Starter
button
Engine stop
switch
O/B
Turn signal/
side-stand relay
G
Ignition
switch
R
Fuse (30 A)
Gear position
switch
Fuse
(15A)
Battery
Bl
side-stand
switch
Starter motor will not run.
The transmission is in neutral. Grasp the Check if the starter motor runs
clutch lever, turn on the ignition switch when its terminal is connected
with the engine stop switch in the “RUN”
Clicks
to the battery
terminal (Do
position and listen for a click from the not use thin “wire” because a
starter relay when the starter button is large amount of current flows)
pushed.
Runs Does not run
No click
• Faulty starter moto
r
Measure the starter relay voltage at the
starter relay connectors (between
No voltage
) when the starter button is
pushed.
Voltage
Continued on next page
• Faulty starter relay
• Loose or disconnected start
er
motor lead wire
• Faulty ignition switch
• Faulty engine stop switch
• Faulty clutch lever position
switch
• Faulty gear position switch
• Faulty turn signal/side-stand
relay
• Faulty starter button
• Poor contact of connector
• Open circuit in wire harness
