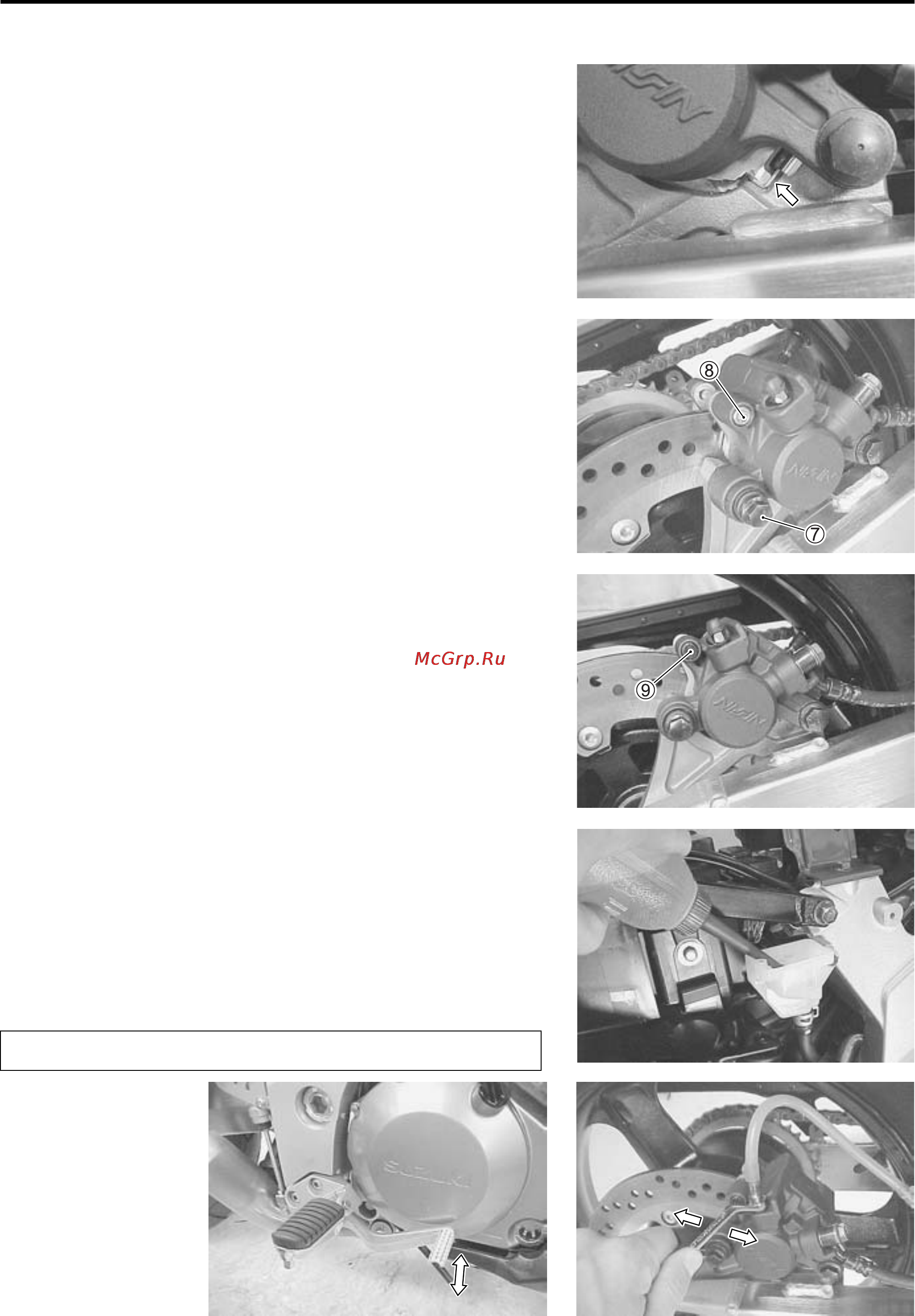

6-68 CHASSIS
NOTE:
Make sure that the detent of the pad is seated onto the retainer
on the caliper bracket.
• Tighten the caliper mounting bolt
and pad mounting pin
to the specified torque.
" Rear brake caliper mounting bolt:
23 N·m (2.3 kgf-m, 16.5 lb-ft)
Rear brake pad mounting pin:
17 N·m (1.7 kgf-m, 12.5 lb-ft)
• Install the plug
to the specified torque.
" Pad pin plug: 2.5 N·m (0.25 kgf-m, 1.8 lb-ft)
NOTE:
After replacing the brake pads, pump the brake pedal several
times in order to operate the brake correctly and then check the
brake fluid level.
BRAKE FLUID REPLACEMENT
• Remove the right frame cover. (6-5)
• Remove the brake fluid reservoir cap.
• Replace the brake fluid in the same manner as the front
brake. (6-58)
O Specification and Classification: DOT 4
Bleed air from the brake system. (2-24)
