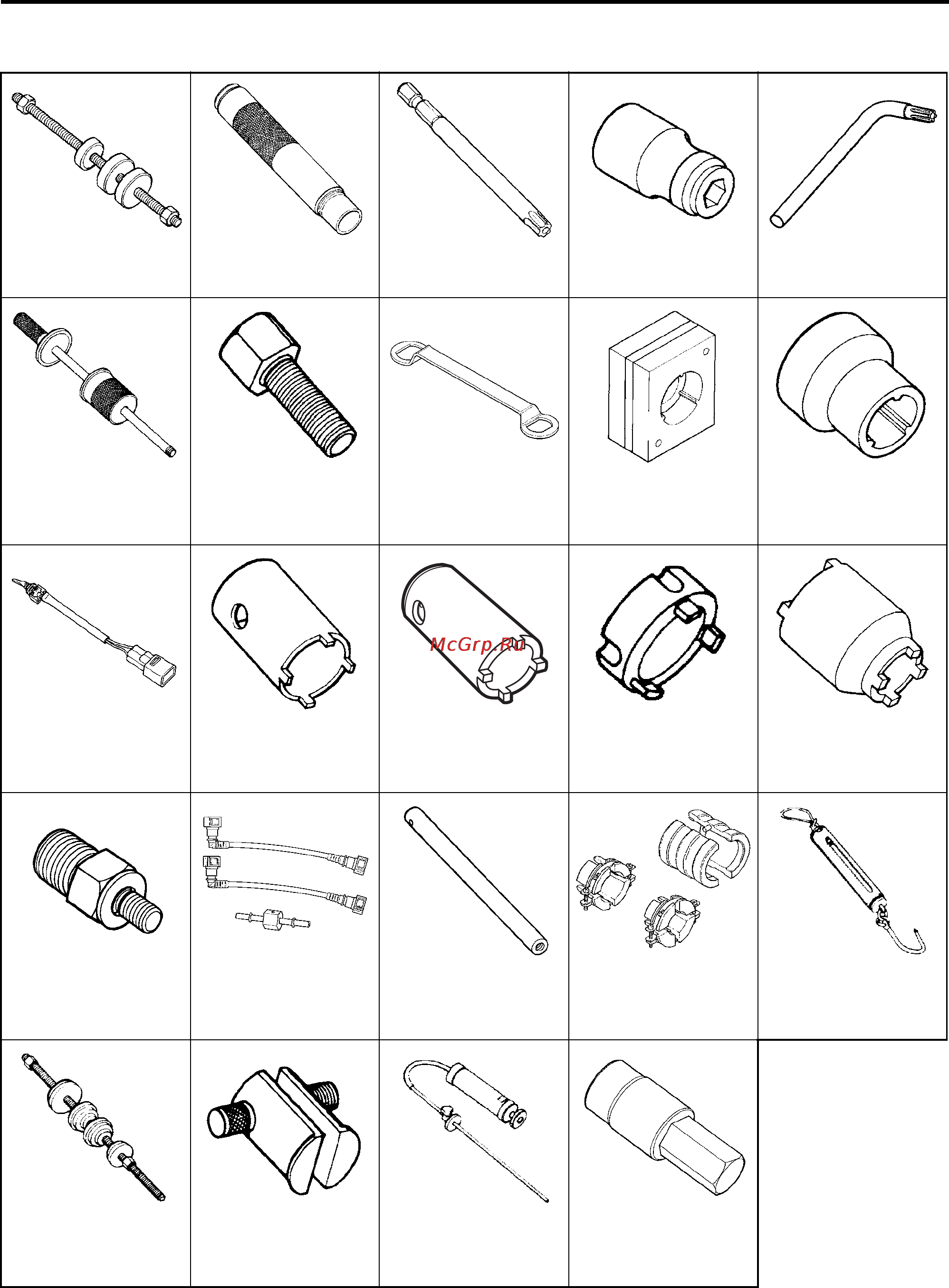

8-34 SERVICING INFORMATION
NOTE:
When ordering a special tool, please confirm whether it is available or not.
09924-84521
Bearing installer set
09925-18011
Steering bearing installer
09930-11920
Torx bit JT40H
09930-11940
Bit holder
09930-11950
Torx wrench
09930-30102
Sliding shaft
09930-30450
Rotor remover
09930-44541
Rotor holder
09930-73110
Starter torque limiter
holder
09930-73120
Starter torque limiter
socket
09930-82710
Mode selection
switch
09940-14911
Steering stem nut
wrench
09940-14940
Swingarm pivot thrust
adjuster socket wrench
09940-14960
Steering nut wrench
socket
09940-14990
Engine mounting thrust
adjuster socket wrench
09940-40211
Fuel pressure gauge
adapter
09940-40220
Fuel pressure gauge
hose attachment
09940-52841
Front fork inner rod
holder
09940-52861
Front fork oil seal
installer
099340-92720
Spring scale
09941-34513
Steering race
installer
09941-54911
Bearing outer race
remover
09943-74111
Fork oil level gauge
09944-28320
HEXAGON BIT
