9-6 EMISSION CONTROL INFORMATION

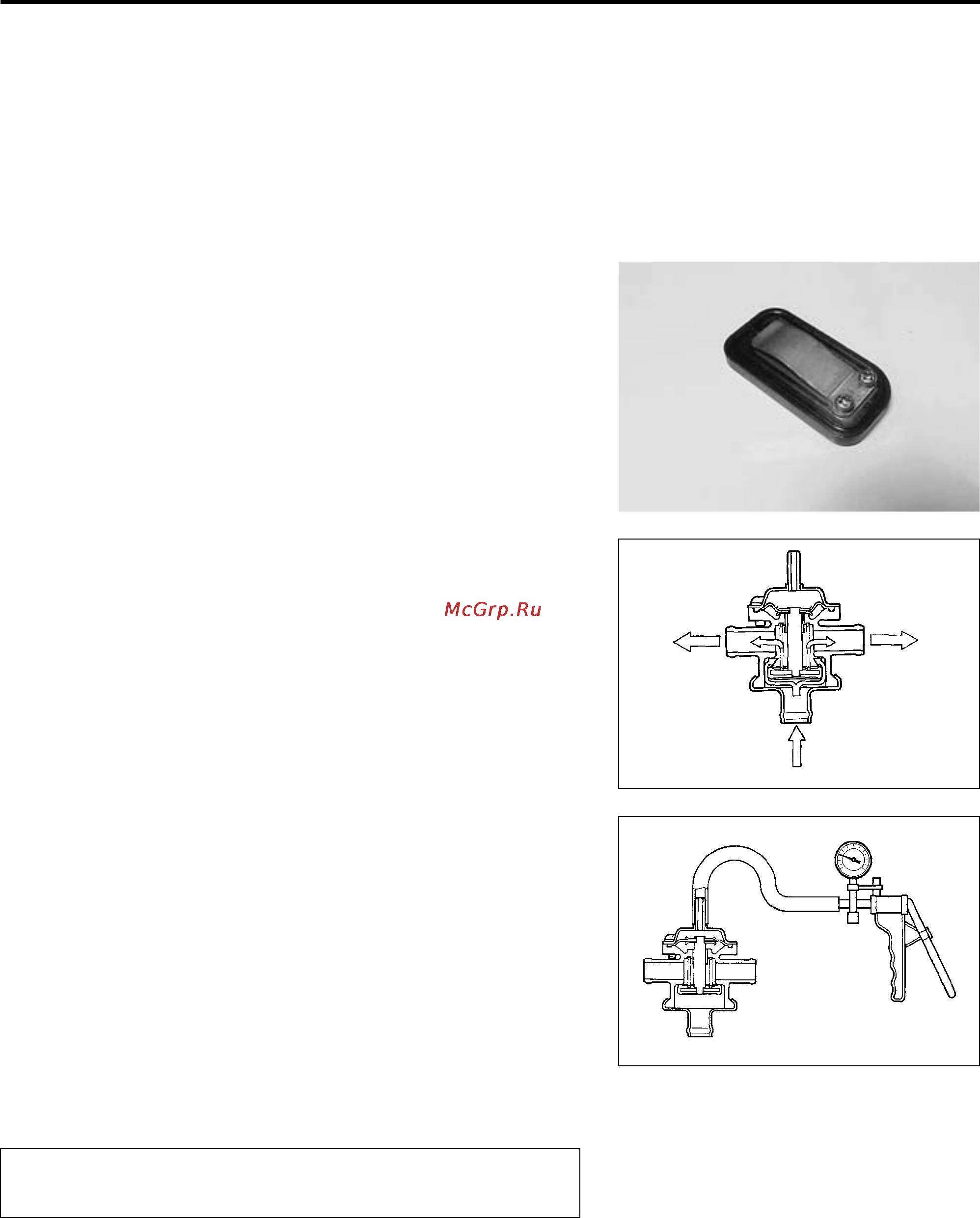

PAIR (AIR SUPPLY) SYSTEM INSPECTION

HOSES

• Inspect the hoses for wear or damage.

• Inspect that the hoses are securely connected.

PAIR REED VALVE

• Remove the PAIR reed valve cover.

• Inspect the reed valve for the carbon deposit.

• If the carbon deposit is found in the reed valve, replace the

PAIR reed valve with a new one

PAIR CONTROL VALVE

(For E-03, 24, 28 and 33)

• Remove the air cleaner box and PAIR control valve.

• Check that air flows through the PAIR control valve air inlet

port to the air outlet ports.

• If air does not flow out, replace the PAIR control valve with a

new one.

• Connect the vacuum pump gauge to the vacuum port of the

control valve as shown in the illustration.

• Apply negative pressure of the specification slowly to the con-

trol valve and inspect the air flow.

• If air does not flow to the pump, the control valve is in normal

condition.

• If the control valve does not properly function within the speci-

fication, replace the control valve with a new one.

 Negative pressure range: –53.3 kPa (–392 mmHg)

\ 09917-47010: Vacuum pump gauge



• Installation is in the reverse order of removal.

Air flow Air flow

Air flow

Use a hand operated vacuum pump to prevent the

control valve damage.
