FI SYSTEM 4-73

• Start up the engine and run it in idling condition for warming

up.

• Stop the warmed-up engine.

• Connect a tachometer and start up the engine.

• Bring the engine rpm to 1 200 rpm by the throttle stop screw.

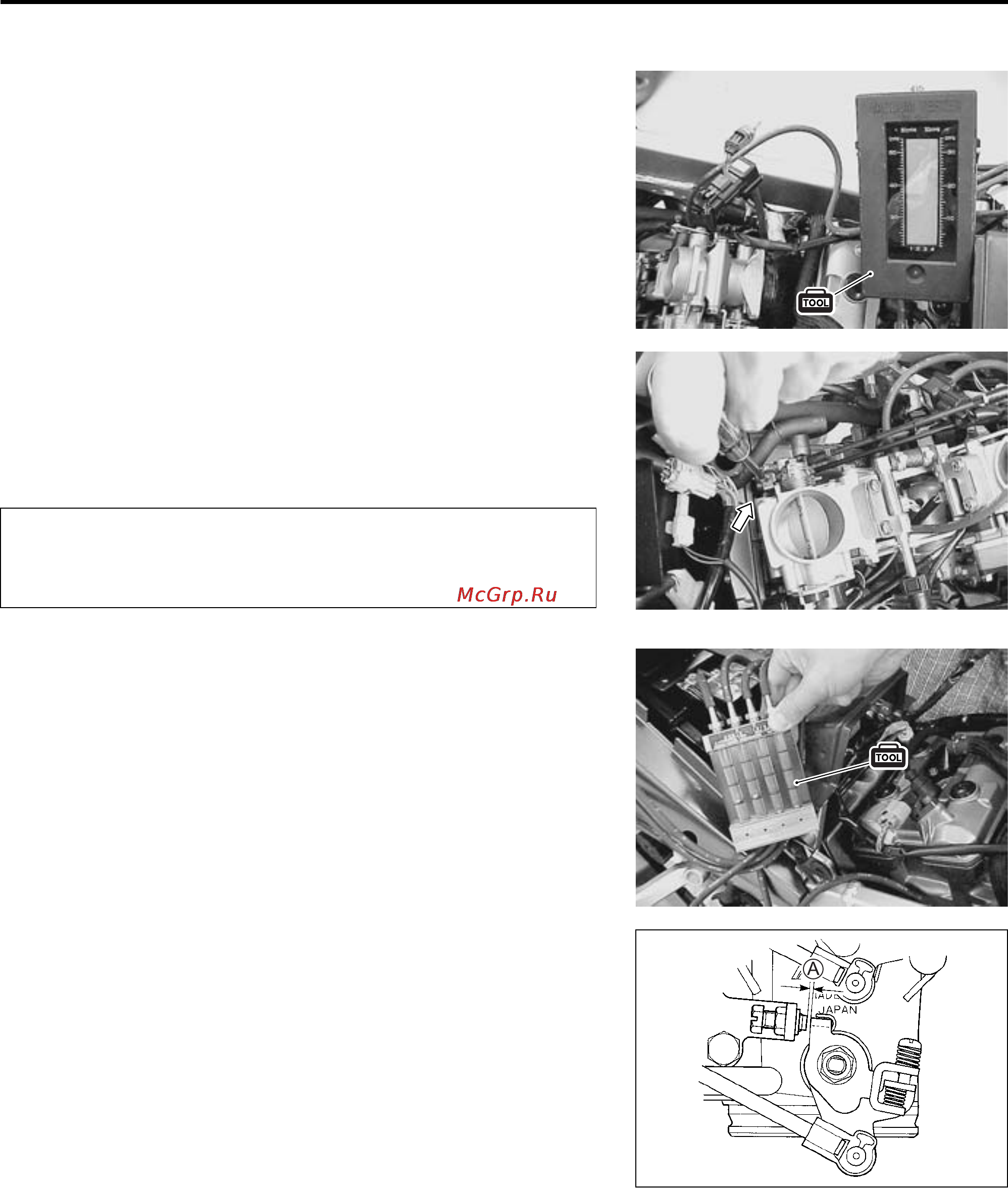

• Check the vacuum of the two cylinders and balance the two

throttle valves with the synchronizing screw. (4-66)

NOTE:

* During balancing the throttle valves, always set the engine

rpm at 1 200 rpm, using throttle stop screw.

* After balancing the two valves, set the idle rpm to 1 200 rpm.



For vacuum balancer gauge (09913-13121)

The vacuum gauge is positioned approx. 30° from the horizontal

level, and in this position the two balls should be within one ball

dia. If the difference is larger than one ball, turn the synchroniz-

ing screw on the throttle body and bring the ball to the same

level.

A correctly adjusted throttle valve synchronization has the balls

in the No.1 and No.2 at the same level.

NOTE:

Make sure that the throttle lever should have a gap

" (between

the throttle lever and throttle lever stopper screw) during syn-

chronization.

 Throttle lever gap

": 0.31 mm (0.012 in)

THROTTLE CABLE ADJUSTMENT

NOTE:

Minor adjustment can be made by the throttle grip side adjuster.

(2-14)

Avoid drawing dirt into the throttle body while running

the engine without air cleaner box. Dirt drawn into the

engine will damage the internal engine parts.
