DL1000K4 (’04-MODEL) 11-21

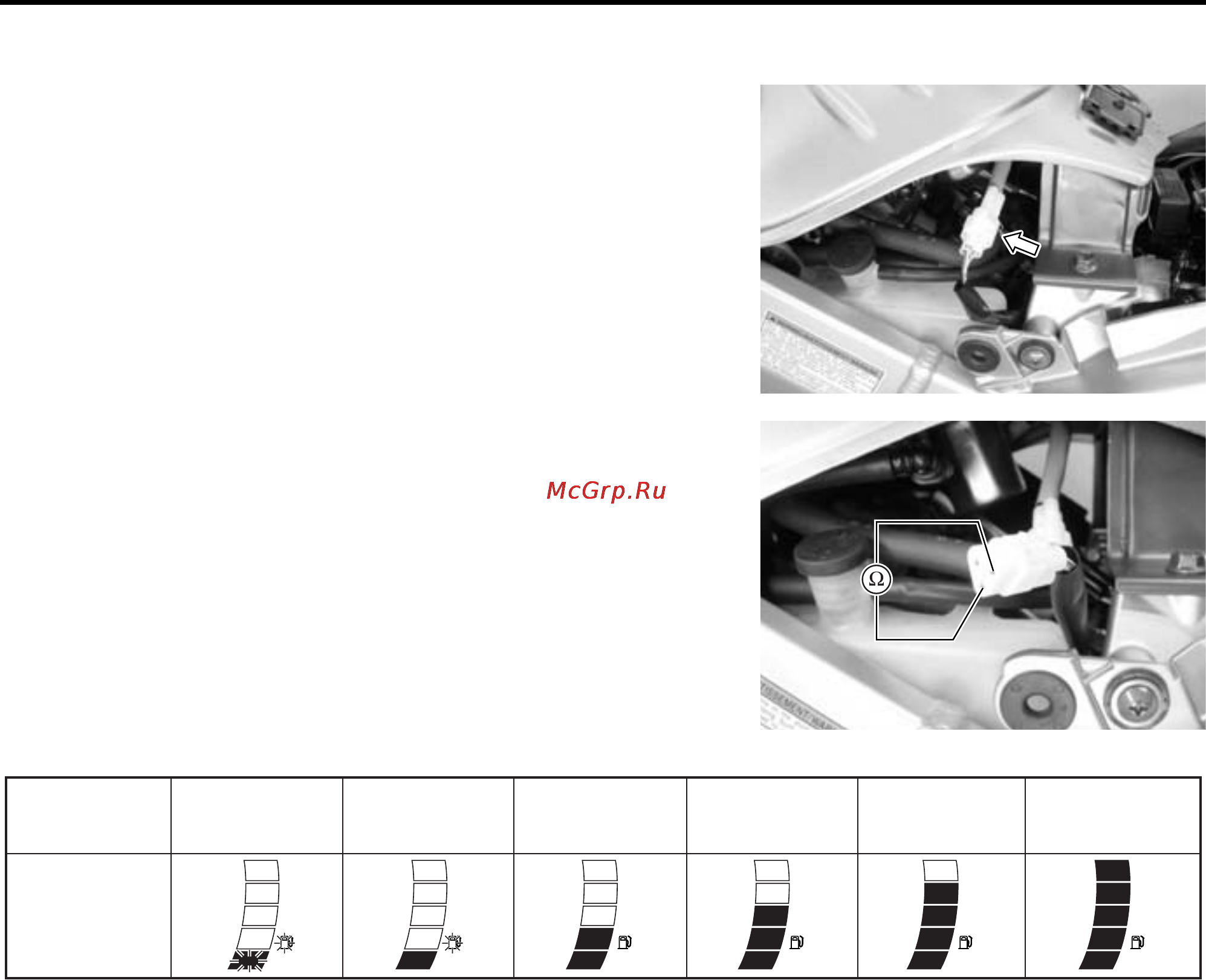

FUEL LEVEL METER INSPECTION
• Remove the fuel tank left side cover.
• Disconnect the fuel pump lead wire coupler.
• Connect the each resistor between the Yellow/Black and
Black/White lead wires at the wire harness.
• Turn the ignition switch “ON” position and wait for approx.
40 seconds.
Check the display of fuel meter as shown below, If any abnor-
mality is found, replace the combination meter with a new one.
Resistance
More than
167.0 Ω
6.5 Ω
and less
87.5 – 167.0
Ω
50.0 – 87.5 Ω
26.0 – 50.0 Ω 6.5 – 26.0 Ω
Fuel level
meter
