11-20 DL1000K4 (’04-MODEL)

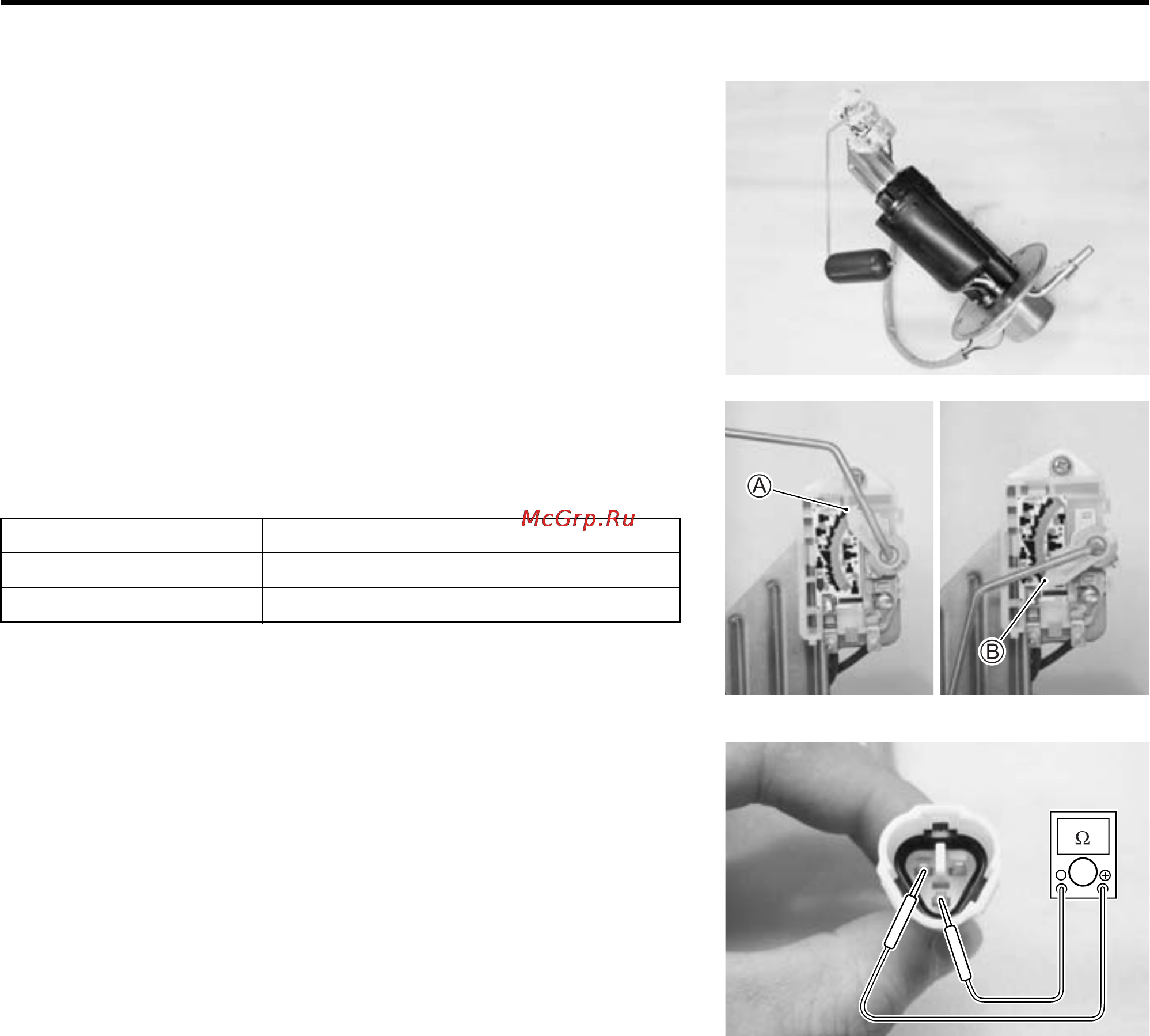

FUEL LEVEL GAUGE INSPECTION
• Remove the fuel tank. (4-52)
• Remove the fuel pump. (4-55)
Measure the resistance at each fuel level gauge float position. If
the resistance is incorrect, replace the fuel level gauge with a
new one.
\ 09900-25008: Multi circuit tester set
V Tester knob indication: Resistance (Ω)
• Install the fuel pump. (4-58)
Float position Resistance
" “F” (Full) Approx. 4 Ω
# “E” (Empty) Approx. 182 Ω
