ENGINE 3-87

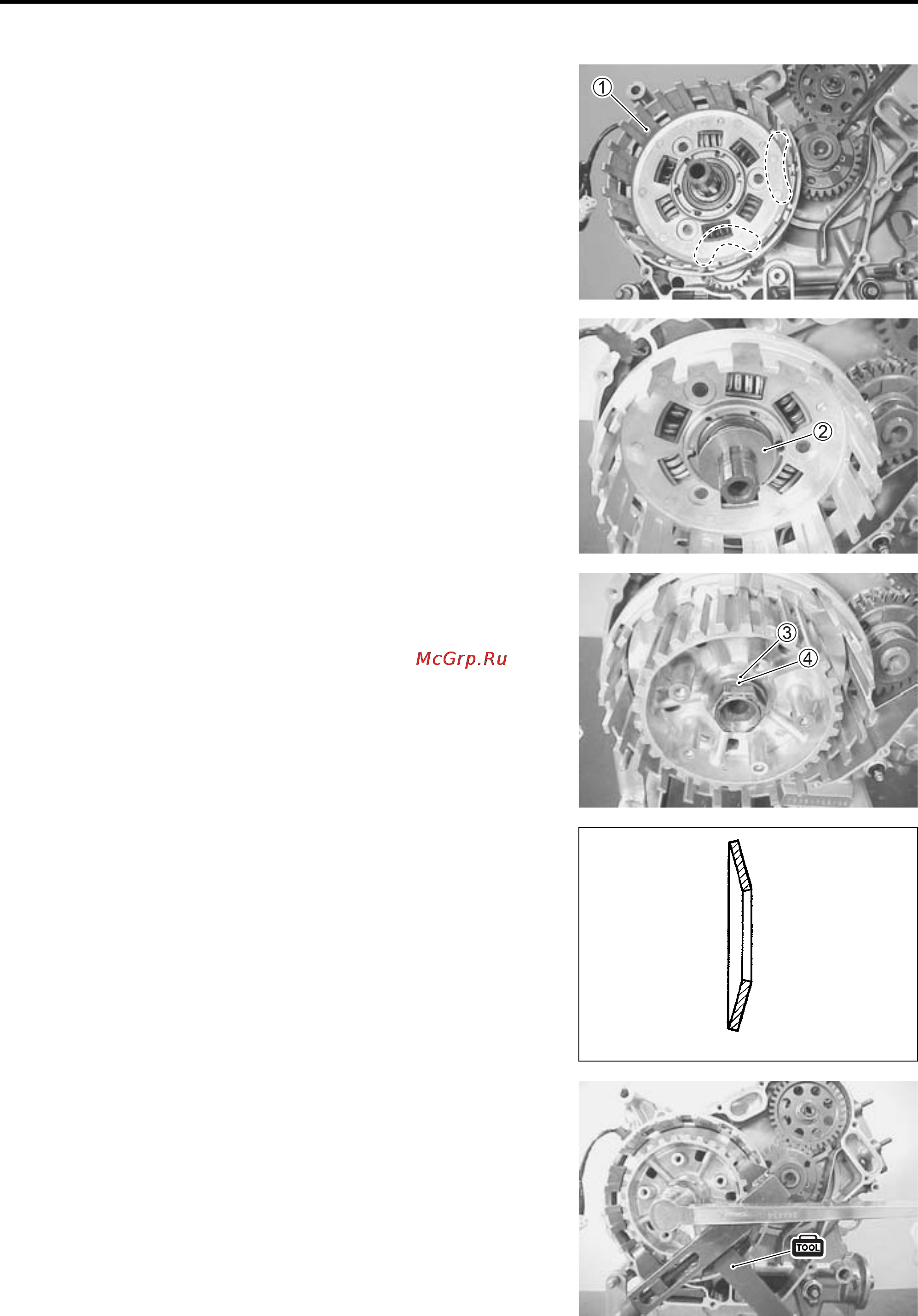

• Install the primary driven gear assembly
onto the counter-
shaft.
NOTE:
* When installing the primary driven gear assembly, align the
teeth of the primary drive gears by inserting a suitable bar to
the holes of them.
* Be sure to engage the oil pump drive and driven gears, pri-
mary drive and driven gears.
• Install the thrust washer
.
• Install the clutch sleeve hub.
• Install the washer
,
and clutch sleeve hub nut.
NOTE:
The convex side of the washer faces outside.
• Tighten the clutch sleeve hub nut to the specified torque with
the special tool.
" Clutch sleeve hub nut: 150 N·m (15.0 kgf-m, 108.5 lb-ft)
\ 09920-53740: Clutch sleeve hub holder
INSIDE
Washer
OUTSIDE
