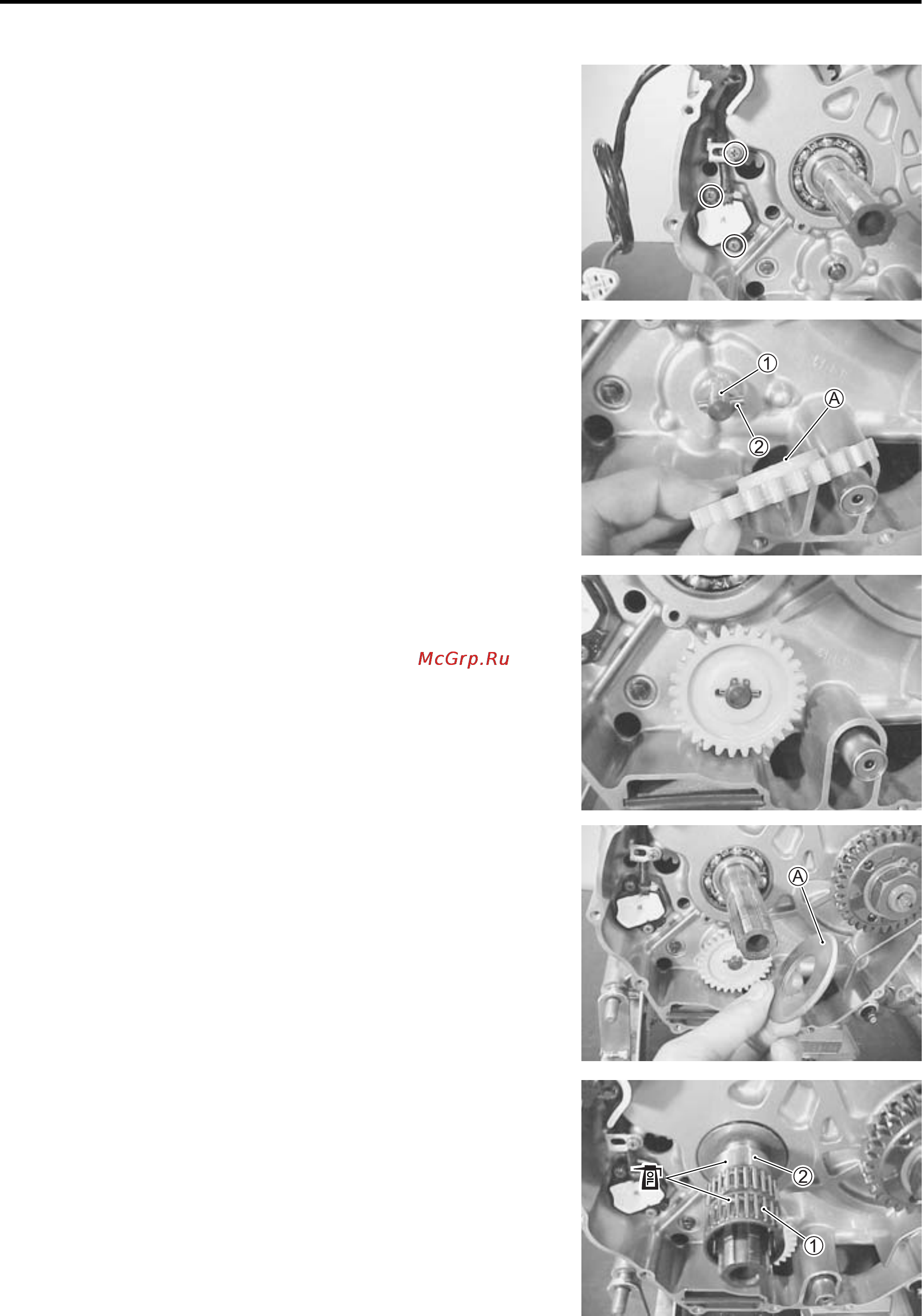

3-86 ENGINE
• Install the gear position switch and cable guide.
OIL PUMP DRIVEN GEAR
• Install the washer
and pin
.
• Install the oil pump driven gear by installing the snap ring.
\ 09900-06107: Snap ring pliers
NOTE:
The boss
" of the oil pump driven gear faces crankcase side.
CLUTCH
• Install the thrust washer onto the countershaft.
NOTE:
The chamfer side
" of thrust washer faces crankcase side.
• Install the needle bearing
and spacer
onto the counter-
shaft.
• Apply engine oil to them.
