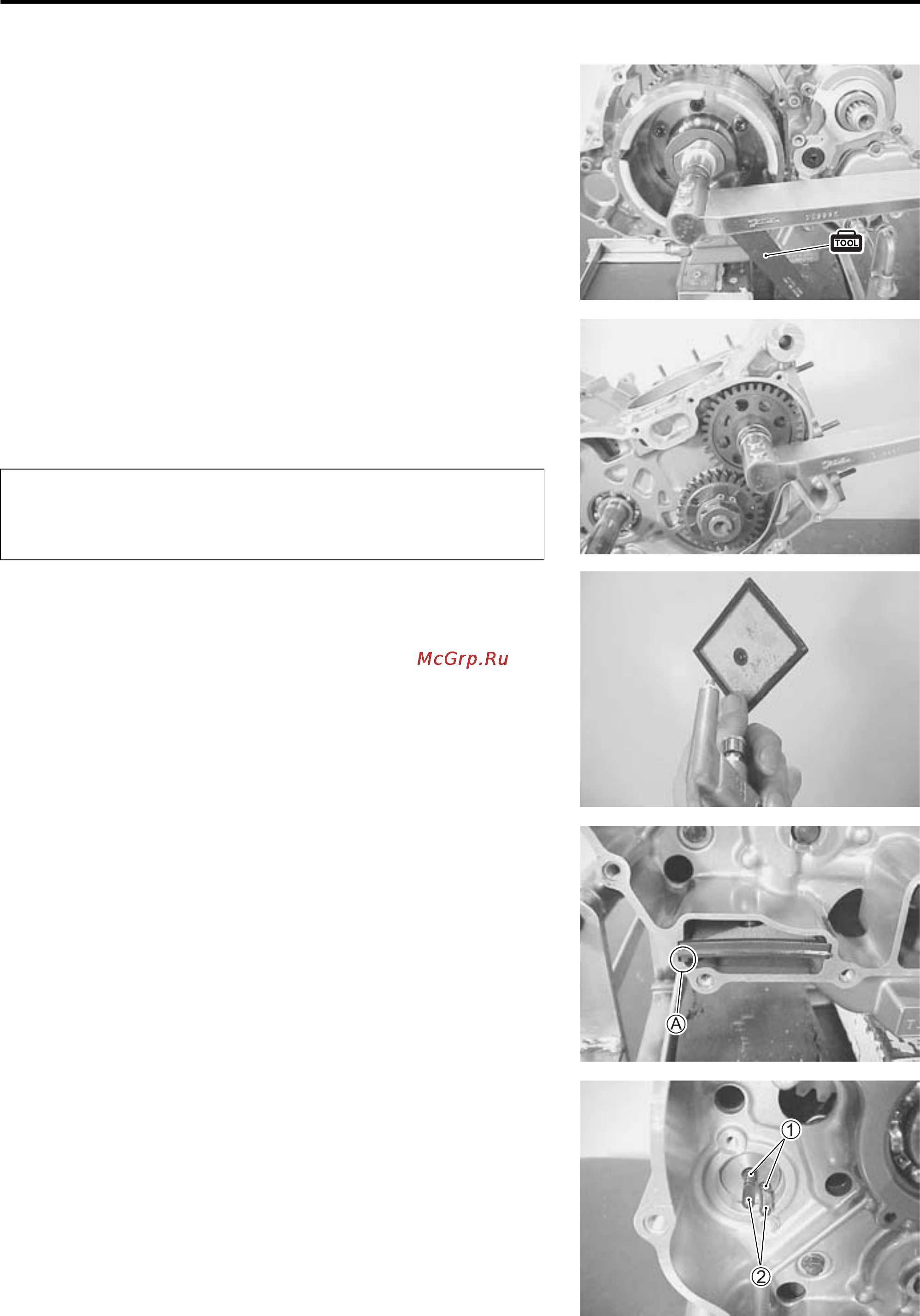

ENGINE 3-85
• Hold the generator rotor with the special tool.
\ 09930-44541: Rotor holder
• While holding the generator rotor, tighten the cam drive idle
gear/sprocket nut to the specified torque.
" Cam drive idle gear/sprocket nut:
70 N·m (7.0 kgf-m, 50.5 lb-ft)
OIL SUMP FILTER
• Clean the oil sump filter using compressed air.
• Install the oil sump filter.
NOTE:
The projection
" of the oil sump filter faces to the bottom.
GEAR POSITION SWITCH
• Install the springs
and gear position switch contacts
.
Before tightening the cam drive idle gear/sprocket nut,
be sure to engage the front and rear cam chains to
each sprocket.
