3-84 ENGINE

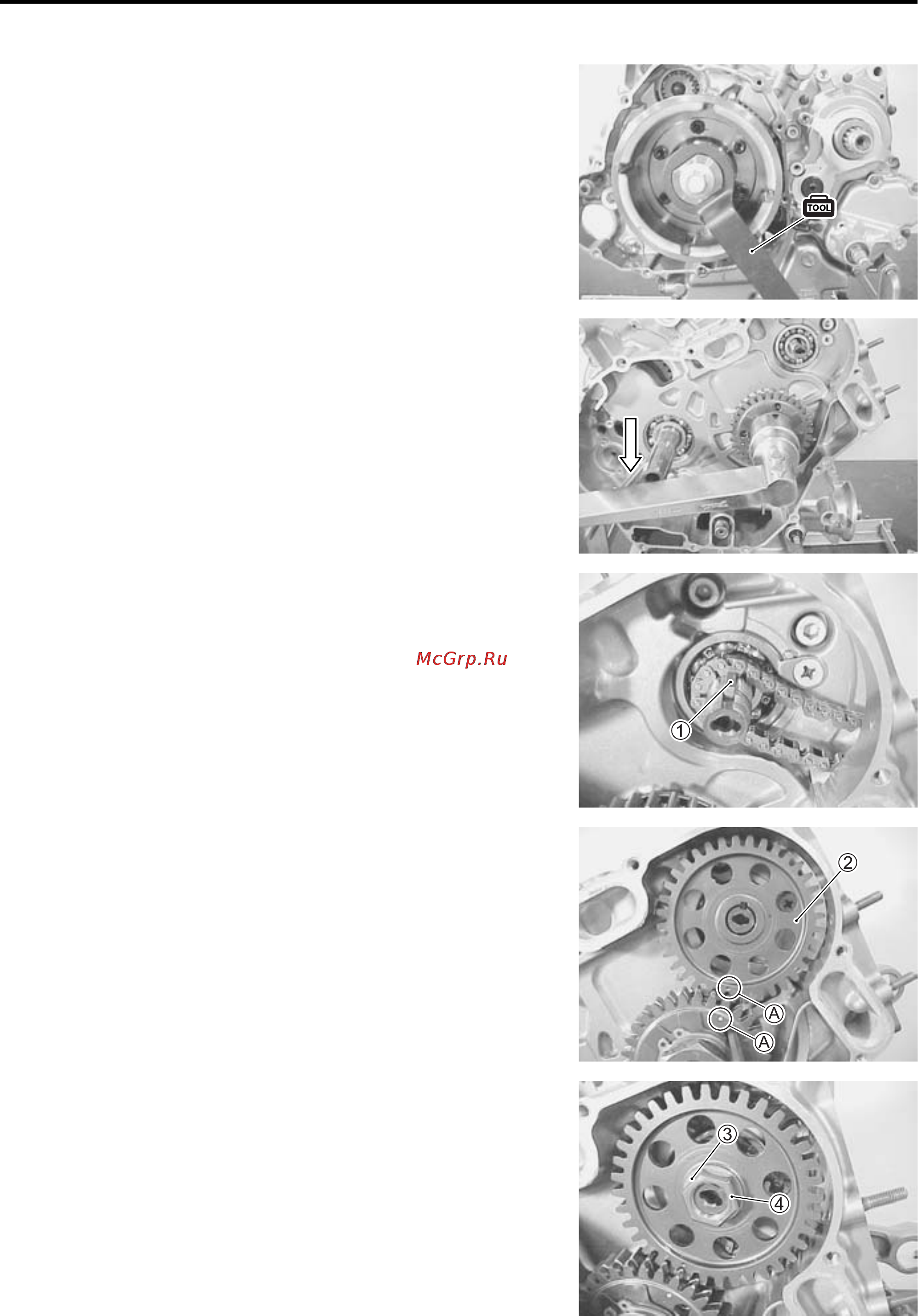

• Hold the generator rotor with the special tool.
\ 09930-44541: Rotor holder
• While holding the generator rotor, tighten the primary drive
gear nut to the specified torque.
" Primary drive gear nut: 115 N·m (11.5 kgf-m, 83.0 lb-ft)
• Install the cam chain and key
.
CAM DRIVE IDLE GEAR/SPROCKET
• Insert a suitable bar to the holes of the primary drive gears
and align the two gears.
• Install the cam drive idle gear/sprocket
.
NOTE:
Align the punched marks
" on the cam drive idle gear/sprocket
and primary drive gear.
• Install the washer
and nut
.
