CHASSIS 6-23
• Set the front fork to the front fork lower bracket temporarily by
tightening the lower clamp bolts.

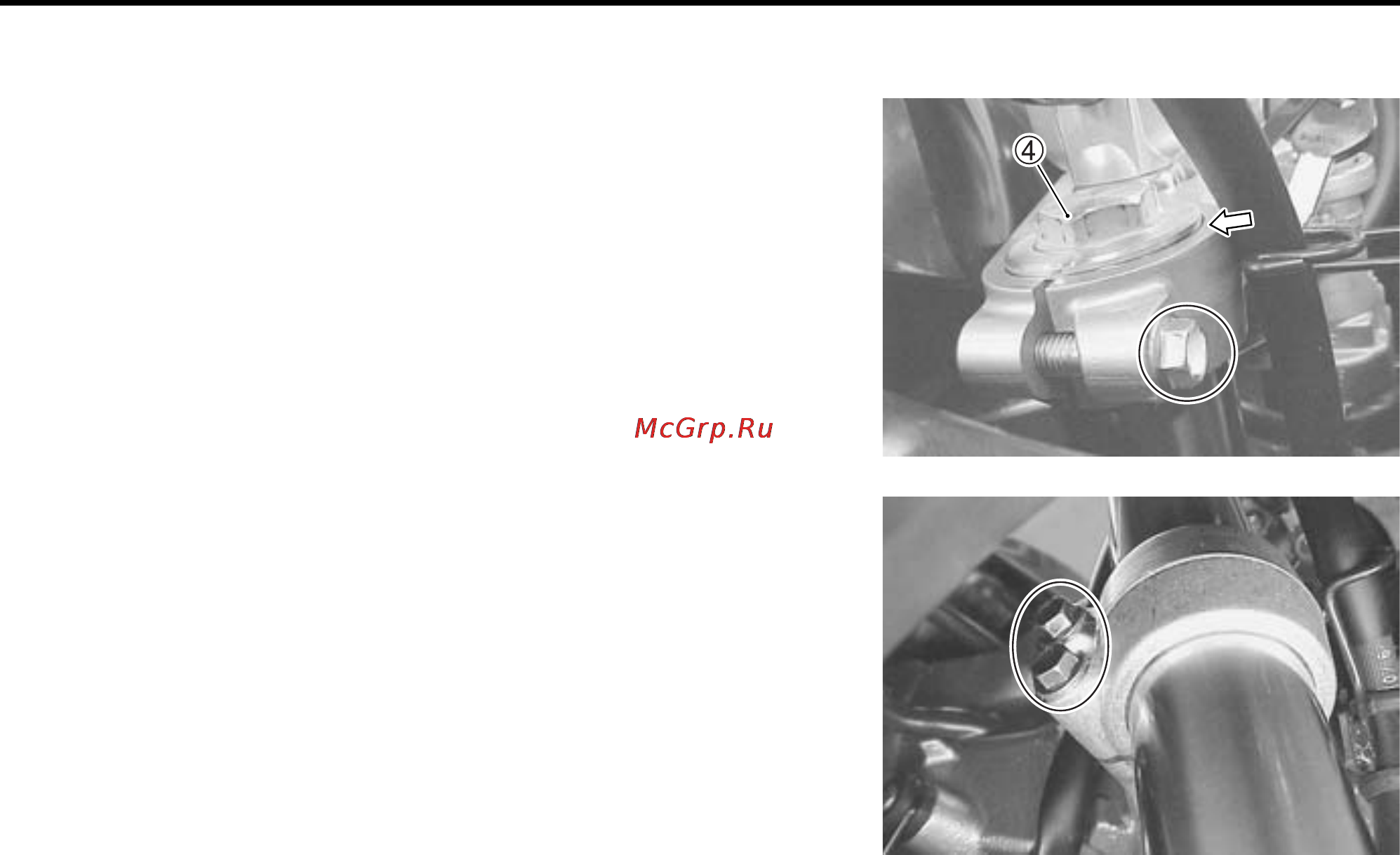

• Tighten the front fork cap bolt
to the specified torque.
" Front fork cap bolt: 23 N·m (2.3 kgf-m, 16.5 lb-ft)
• Align the top of the inner tube to the upper surface of the
steering stem upper bracket.
• Tighten the front fork upper and lower clamp bolts.
" Front fork upper clamp bolt: 23 N·m (2.3 kgf-m, 16.5 lb-ft)
Front fork lower clamp bolt: 23 N·m (2.3 kgf-m, 16.5 lb-ft)
• Install the front wheel. (6-13)
• Install the front brake calipers.(6-13)
NOTE:
After install the brake calipers, front brake should be efficient by
pumping the front brake lever.
