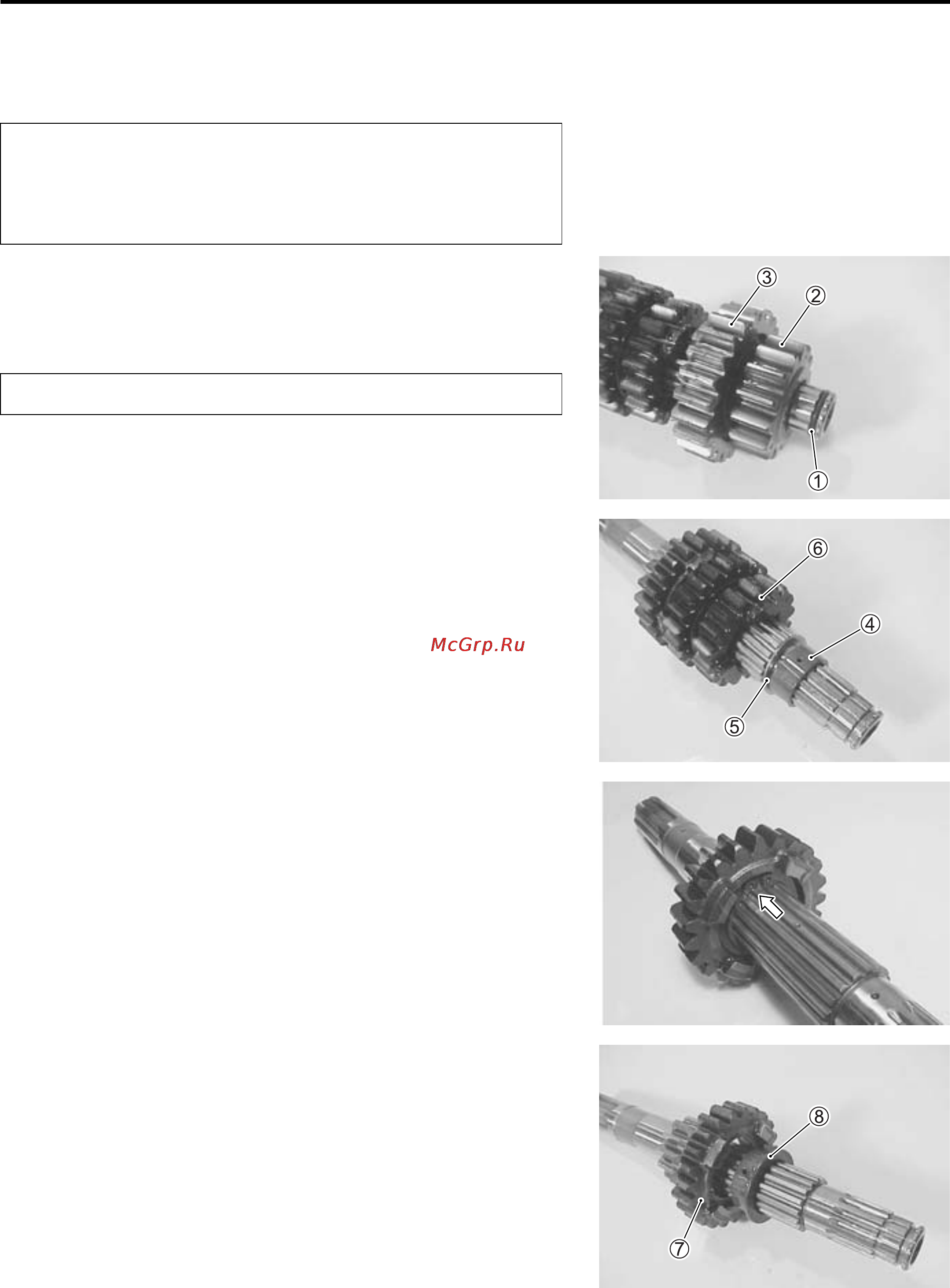

ENGINE 3-57
DISASSEMBLY
Countershaft
• Remove the O-ring
, 2nd drive gear
and top drive gear
.
• Remove the top drive gear bushing
, washer
, and 3rd/4th
drive gears
.
• Remove the snap ring with the special tool.
\ 09900-06107: Snap ring pliers
• Remove the 5th drive gear
and its bushing
.
Be sure to identify each removed part as to its loca-
tion, and lay the parts out in groups designated as
“Drive” and “Driven”, so that each will be restored to
the original location during assembly.
The removed O-ring must be replaced with a new one.
