3-58 ENGINE

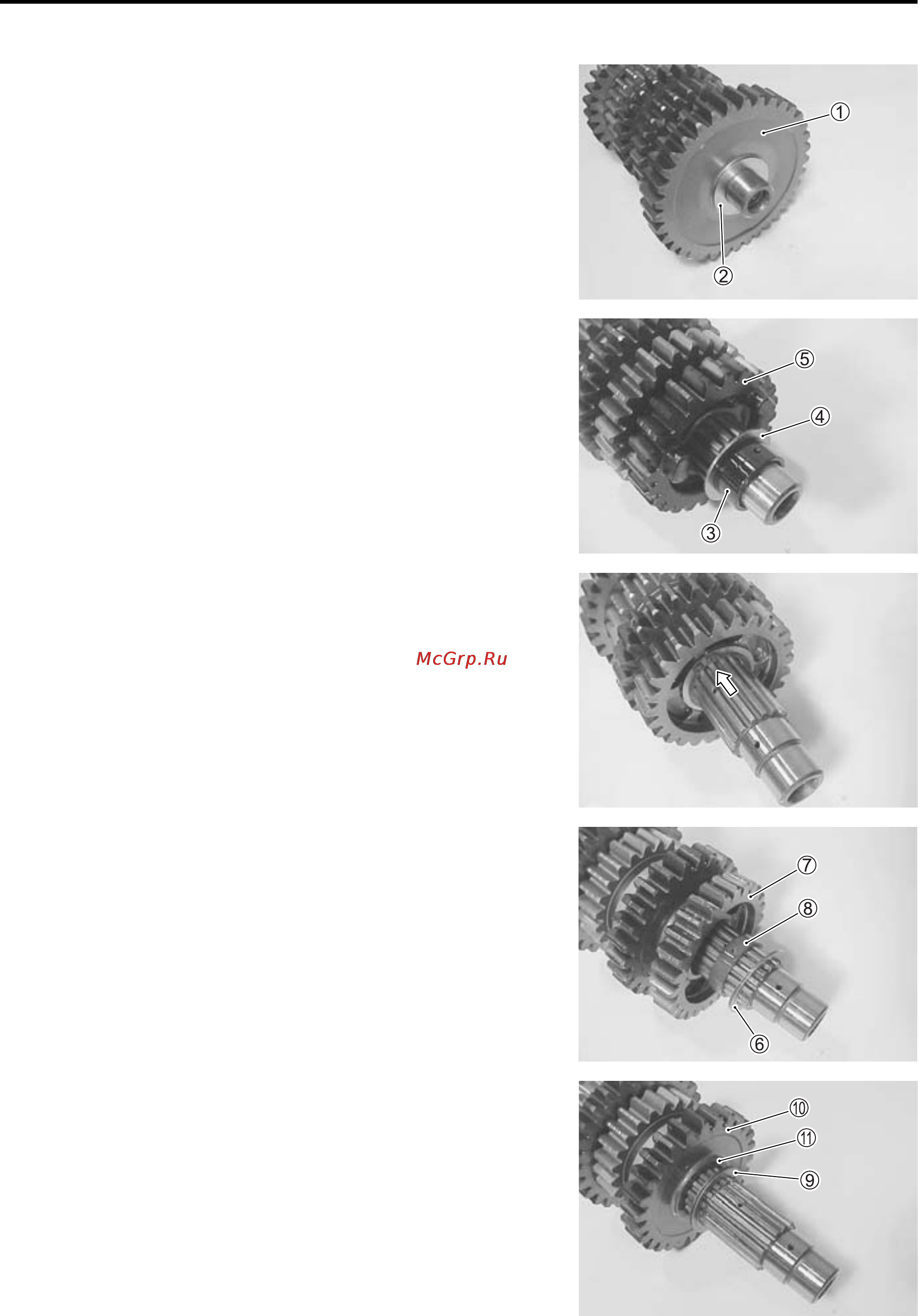

Driveshaft
• Remove the low driven gear
and washer
.
• Remove the low driven gear bushing
, washer
and 5th
driven gear
.
• Remove the snap ring with the special tool.
\ 09900-06107: Snap ring pliers
• Remove the washer
, 4th driven gear
and its bushing
.
• Remove the washer
, 3rd driven gear
and its busing
".
