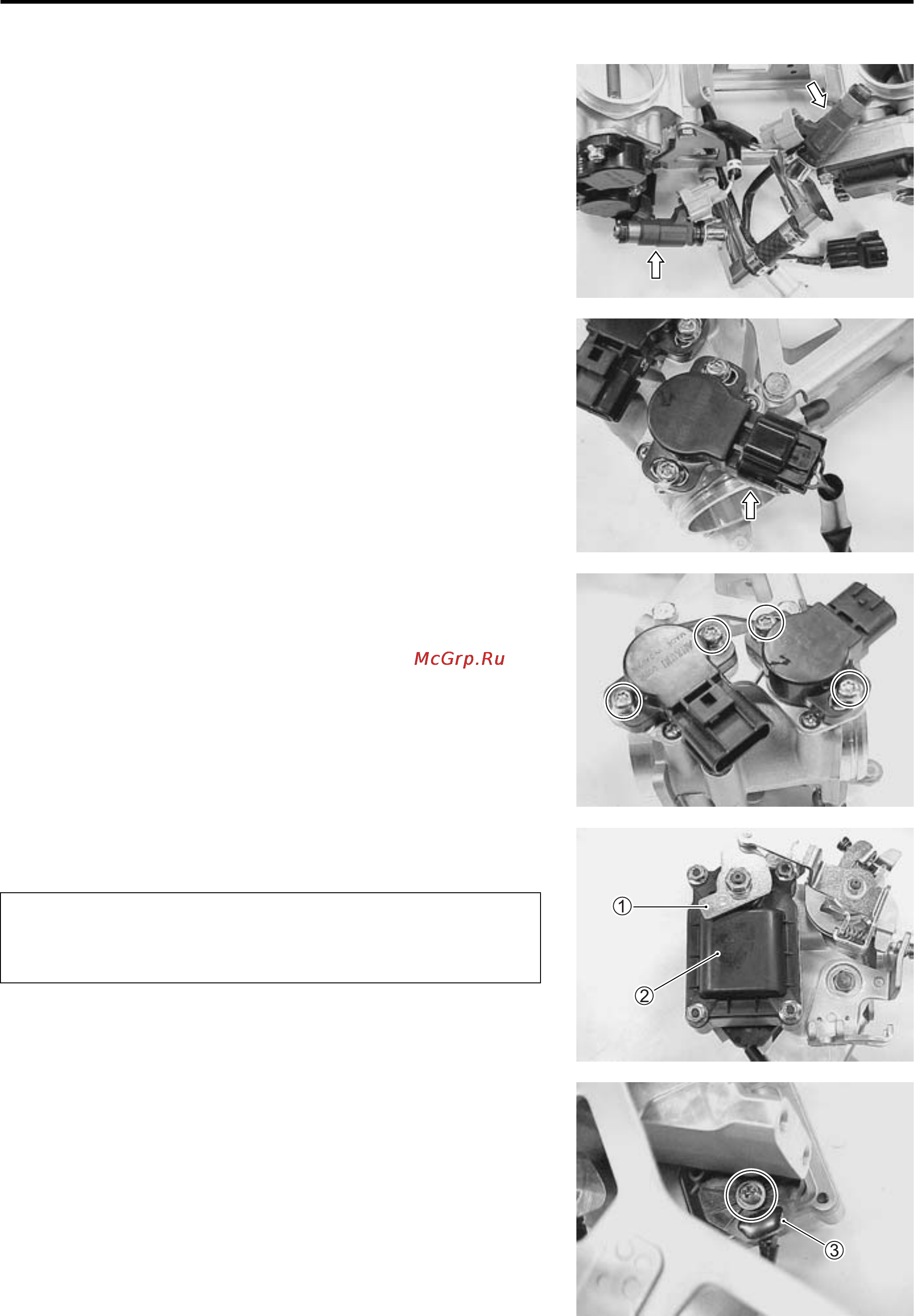

4-62 FI SYSTEM
• Remove the fuel injectors.
• Disconnect the TPS coupler.
• Remove the TPS and STPS with the special tool.
\ 09930-11950: Torx wrench
NOTE:
Prior to disassembly, mark each sensor’s original position with a
paint or scribe for accurate reinstallation.
• Remove the fast idle cam
by removing its mounting nut.
• Remove the STVA motor lead wire connector
by removing
the screw.
Do not attempt to disassemble the secondary throttle
valve actuator assembly. (Except for the cover
)
Actuator is available only as an assembly.
