ENGINE 3-79

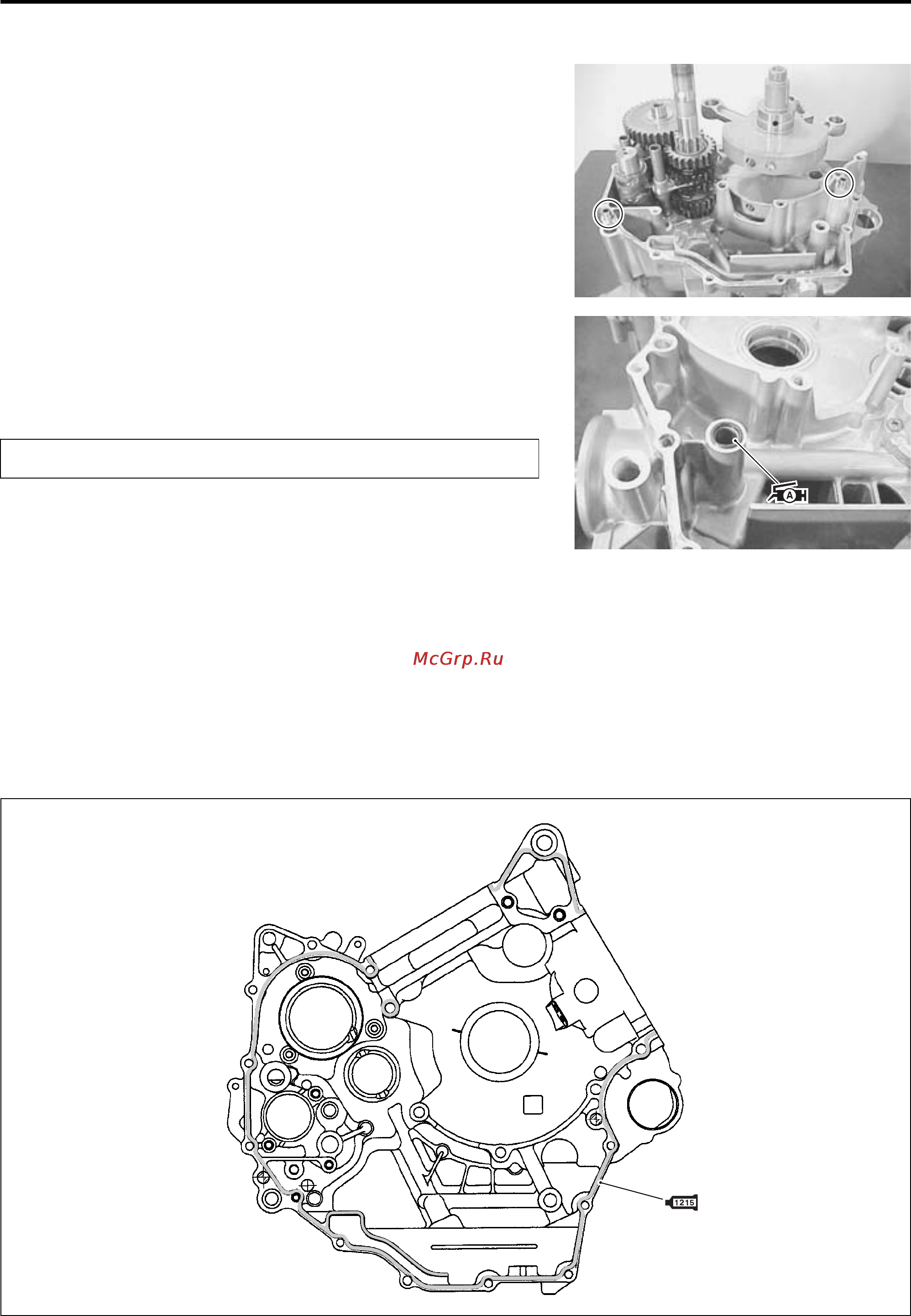

• Fit the dowel pins.
• Apply grease to the O-ring and install it.
X 99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
• Clean the mating surfaces of the left and right crankcase
halves.
• Apply SUZUKI BOND “1215” to the mating surface of the left
crankcase.
E 99000-31110: SUZUKI BOND ‘‘1215’’
NOTE:
Use of SUZUKI BOND “1215” is as follows:
* Make surfaces free from moisture, oil, dust and other foreign materials.
* Spread on surfaces thinly to form an even layer, and assemble the crankcases within few minutes.
* Take extreme care not to apply any BOND “1215” to the oil hole, oil groove and bearing.
* Apply to distorted surfaces as it forms a comparatively thick film.
Use the new O-ring to prevent oil leakage.
