4-50 FI SYSTEM
White
White
Ω
V
terminal
3
3
4
No
Ye s
Ye s
Replace the HO
2 sensor with
a new one.
No
Ye s
Replace the HO
2 sensor with
a new one.
4

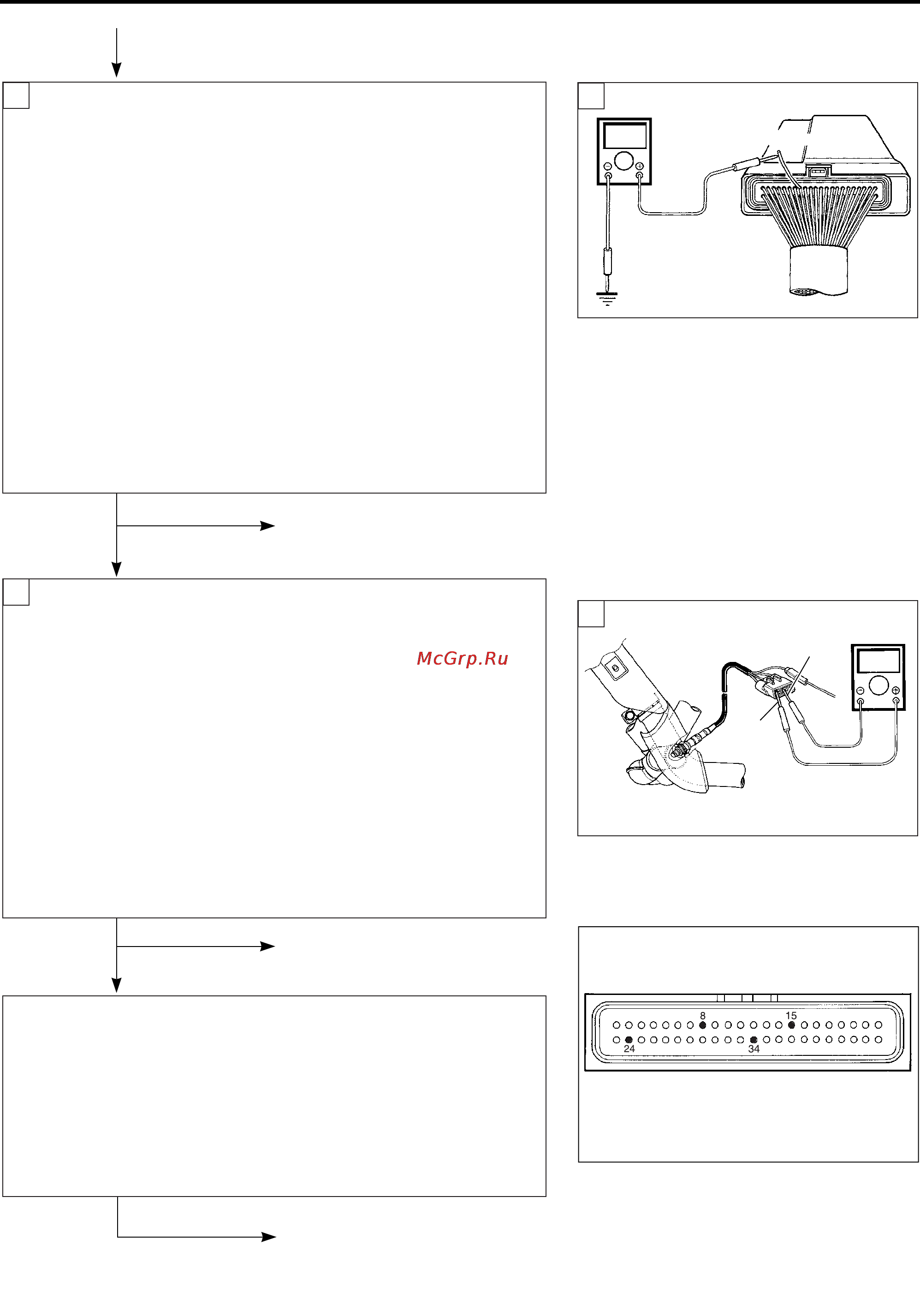

Turn the ignition switch OFF.
Disconnect the HO
2 sensor coupler.
Check the resistance between the terminals (White –
White) of the HO
2 sensor.
Check the fuel supply system,
if the system is OK, replace
the ECM with a new one, and
inspect it again.
Turn the ignition switch OFF.
Insert the copper wire to the ECM lead wire coupler
terminal (Heater circuit).
Turn the ignition switch ON and measure the heater
voltage between terminal and ground.
If the tester voltage indicates the battery voltage for few
seconds it is good condition.
NOTE:
* Temperature of the sensor affects resistance value
largely.
* Make sure that the sensor heater is at correct tempera-
ture.
\ 09900-25008: Multi circuit tester set
V Tester knob indication: Resistance (Ω)
HO
2 sensor resistance: 4 – 5 Ω (at 23 ˚C/73.4 ˚F)
Heater voltage: Battery voltage
( terminal – Ground)
NOTE:
Battery voltage can be detected only during few seconds
after ignition switch is turned ON.
\ 09900-25008: Multi circuit tester
W Tester knob indication: Voltage ()
ECM coupler
Black, W/Gr, White, W/B, Gray, B/Br or O/W wire open or
shorted to ground, or poor , &, / or 9 connection.
(4-22)
If wire and connection are OK, intermittent trouble or faulty
ECM.
Recheck each terminal and wire harness for open circuit
and poor connection. (4-5)
