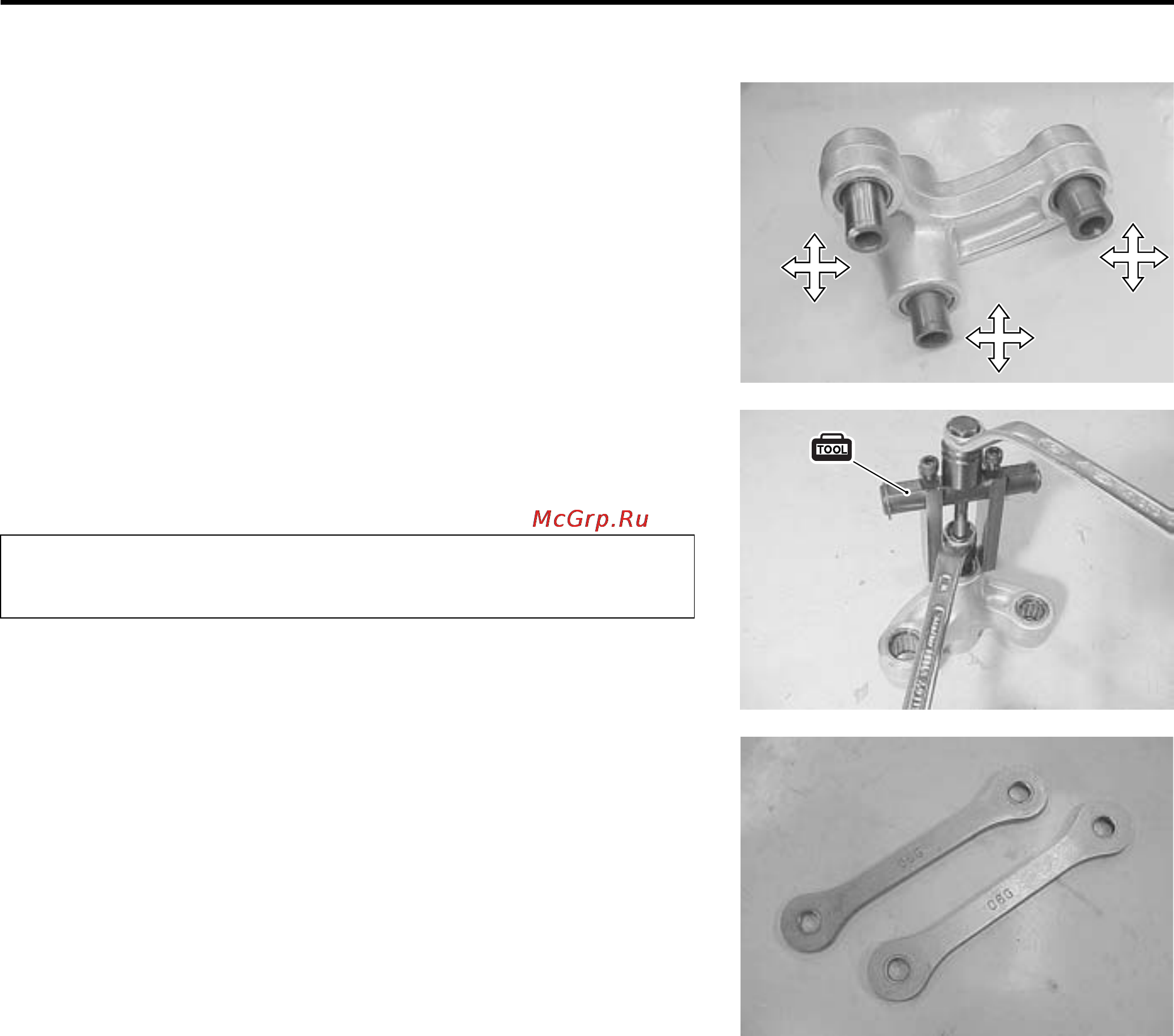

CHASSIS 6-51
CUSHION LEVER BEARING
Insert the spacer into bearing and check the play when moving
the spacer up and down.
If excessive play is noted, replace the bearing with a new one.
• Draw out the cushion lever bearings with the special tool.
\ 09921-20240: Bearing remover set
CUSHION LEVER RODS
Inspect the cushion lever rods for damage and distortion.
The removed bearings must be replaced with new
ones.
