CHASSIS 6-53
SWINGARM BEARING

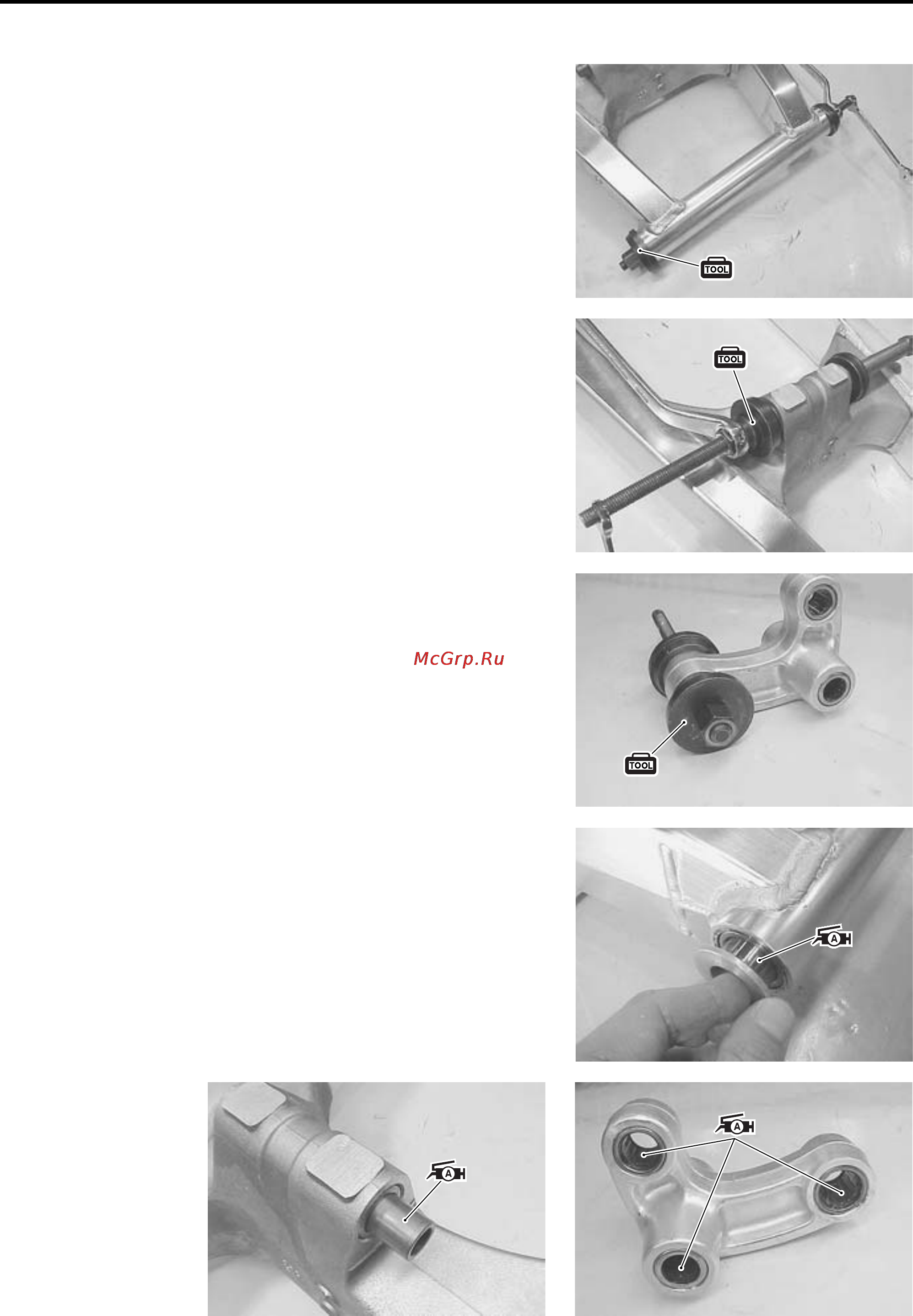

• Install the bearings and spacer into the swingarm pivot all
together by using the special tool.
\ 09941-34513: Steering race installer
NOTE:
When installing the bearing, the stamped mark on the bearing
must face the special tool.
• Install the cushion rod bearing with the special tool.
\ 09941-34513: Steering race installer
NOTE:
When installing the bearing, the dust seal that is embedded in
the bearing must face outside.
CUSHION LEVER BEARING
• Press the bearings into the cushion lever with the special tool.
\ 09941-34513: Steering race installer
NOTE:
When installing the bearing, the dust seal that is embedded in
the bearing must face outside.
• Apply grease to the bearings and spacers.
X 99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
