CHASSIS 6-83

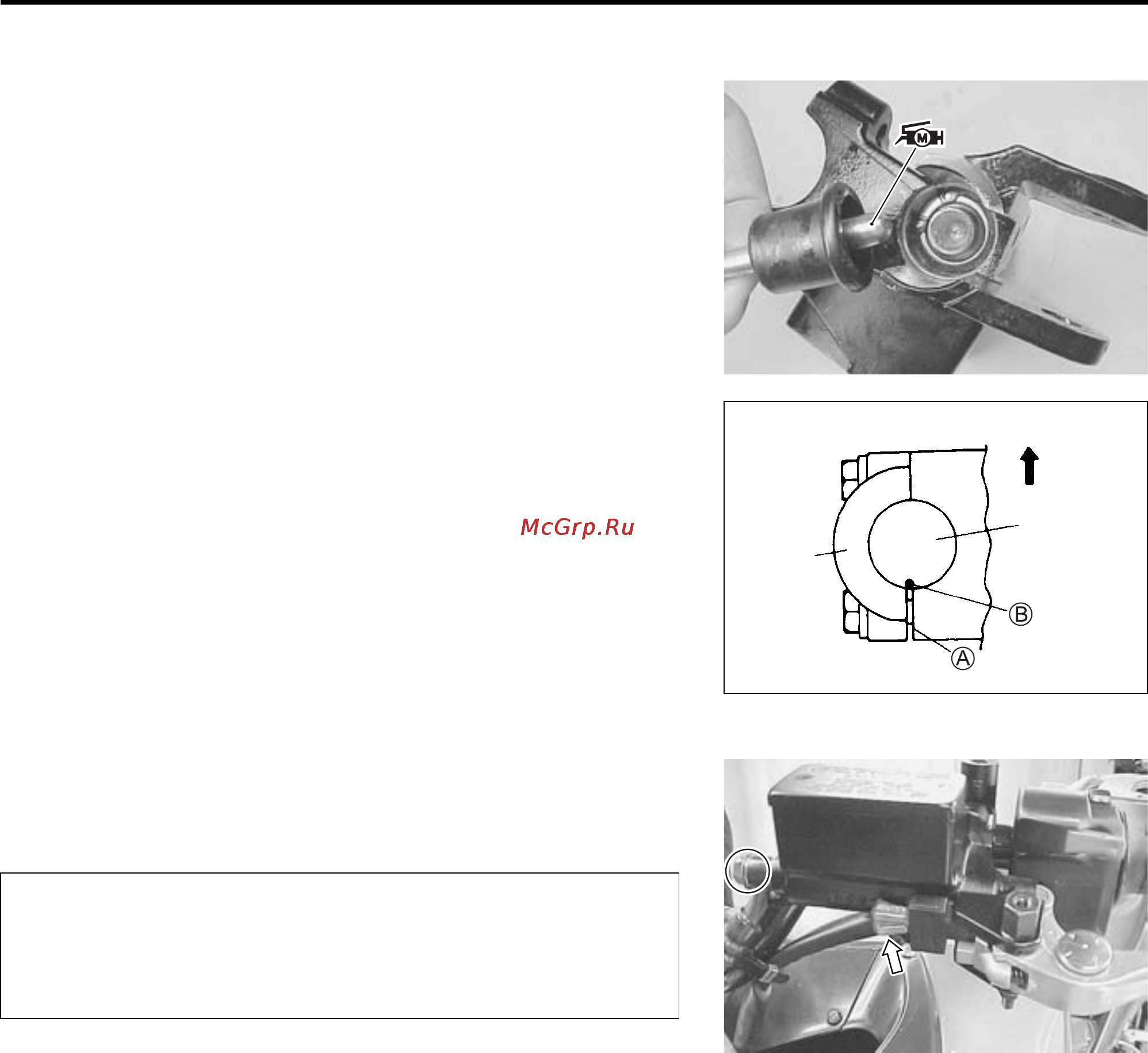

• Apply SUZUKI MOLY PASTE to the push rod.
• Install the push rod and dust boot.
Z 99000-25140: SUZUKI MOLY PASTE
• When remounting the master cylinder on the handlebars,
align the master cylinder holder’s mating surface
" with
punched mark
# on the handlebars and tighten the upper
clamp bolt first.
• Tighten the clutch master cylinder union bolt to the specified
torque.
" Clutch master cylinder mounting bolt:
10 N·m (1.0 kgf-m, 7.0 lb-ft)
Clutch master cylinder union bolt:
23 N·m (2.3 kgf-m, 16.5 lb-ft)
• Connect the clutch lever position switch lead wire.
(Clutch hose routing: 8-22)
Master
cylinder
holder
Upper
Handlebars
* The seal washers should be replaced with the new
ones to prevent fluid leakage.
* Bleed air from the system after reassembling the
master cylinder. (2-16)
