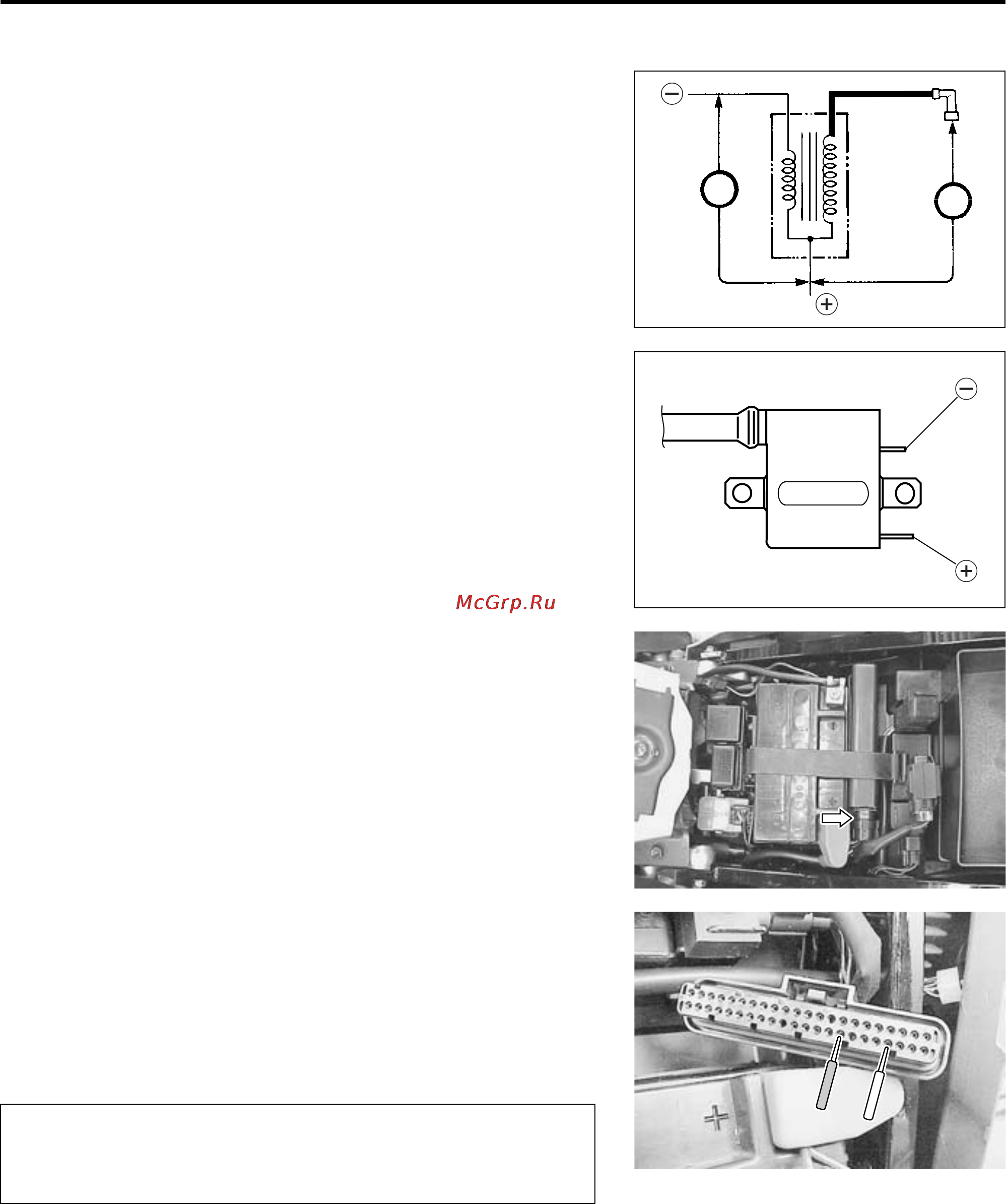

7-20 ELECTRICAL SYSTEM
IGNITION COIL RESISTANCE
• Remove the fuel tank. (4-52)
• Disconnect the spark plug caps and coupler.
Measure the ignition coil resistance in both the primary and sec-
ondary windings. If the resistance is not within the standard
range, replace the ignition coil with a new one.
\ 09900-25008: Multi circuit tester set
V Tester knob indication: Resistance (Ω)
Ignition coil resistance
Primary : 2 – 5 Ω (
terminal –
terminal)
Secondary : 24 – 37 kΩ (Plug cap –
terminal)
CKP SENSOR PEAK VOLTAGE
• Remove the seat. (6-4)
• Disconnect the ECM coupler.
NOTE:
Make sure that all of the couplers are connected properly and
the battery used is in fully-charged condition.
Measure the CKP sensor peak voltage in the following proce-
dures.
• Connect the multi circuit tester with peak volt adaptor as fol-
lows.
Probe: Yellow/Blue lead wire
Probe: White lead wire
\ 09900-25008: Multi circuit tester set
kΩ
Ω
Before using the multi circuit tester and peak volt
adaptor, be sure to refer to the appropriate instruction
manual.
