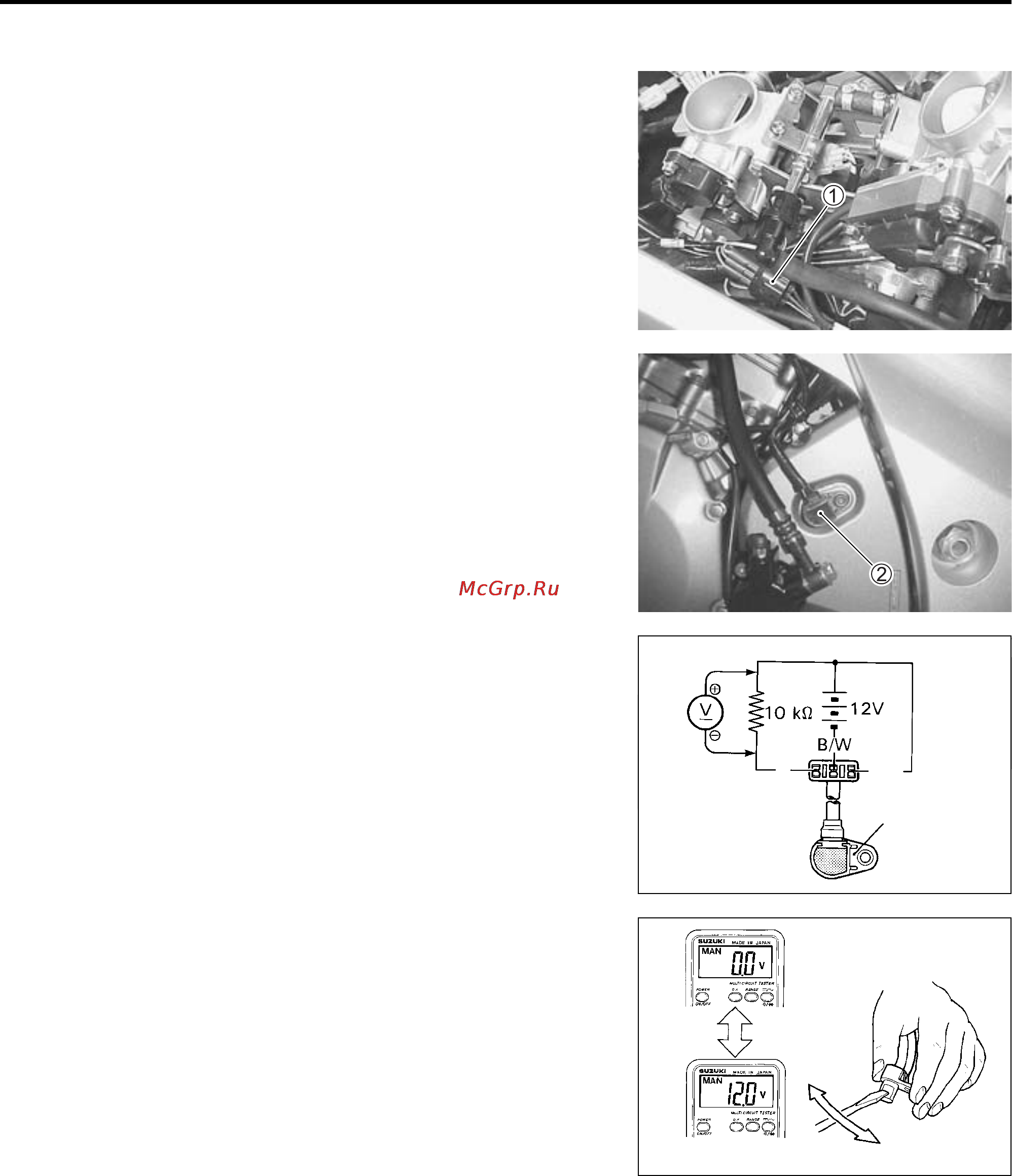

7-28 ELECTRICAL SYSTEM
SPEEDOMETER
If the speedometer, odometer or trip meter does not function
properly, inspect the speedometer sensor and connection of
coupler
. If the speedometer sensor and connection are all
right, replace the meter with a new one.
SPEEDOMETER SENSOR
• Remove the seat. (6-4)
• Remove the fuel tank side covers. (6-5)
• Remove the fuel tank. (4-52)
• Remove the air cleaner box.
• Disconnect speedometer sensor coupler.
• Remove the speedometer sensor
by removing its mounting
bolt.
• Connect 12 V battery, 10 kΩ resistor and the multi circuit
tester as shown in the right illustration.
B/R: Black with Red tracer
B/W: Black with White tracer
B: Black
\ 09900-25008: Multi circuit tester set
W Tester knob indication: Voltage ()
• Under above condition, if a suitable screwdriver touching the
pick-up surface of the speedometer sensor is moved, the
tester reading voltage changes (0 V → 12 V or 12 V → 0 V). If
the tester reading voltage does not change, replace the
speedometer sensor with a new one.
NOTE:
The highest voltage reading in this test will be the same as that
of battery voltage.
B
B/R
Speedometer sensor
(Battery voltage)
