DGS-3312SR Stackable Gigabit Layer 3 Switch
Parameter Description
Unit
Choose the Switch on which the VLAN will be created.
VID (VLAN ID) For a new VLAN entry, type in a unique identifier. This number is used to configure
other settings such as GVRP s
VLAN
tatus for ports in the VLAN.
Auto Assign – Checking this box will automatically assign a VID to the new
entry.
VLAN Name
For a new VLAN entry type in a unique name. This name can be used to identify the
VLAN for IP interface assignment. Remember that VLAN names are case-sensitive
referring to them for other applications (such as setting up IP interfaces). when
Advertisement
Enabling this function will allow the Switch to send out GVRP packets to outside
sources, notifying that they may join the existing VLAN.
Port
Configure each individual port to be specified as member or nonmember of the VLAN.
Tag
Specifies the port as either 802.1Q tagging or 802.1Q untagged. Checking the box will
designate the port as Tagged.
None
Specifies the port as not being a static member of the VLAN, but with no restrictions
for joining the VLAN dynamically through GVRP.
Egress
Select this to specify the port as a static member of the VLAN. Egress member ports
are ports that will be transmitting traffic for the VLAN. These ports can be either
tagged or untagged.
Forbidden
Select this to specify the port as not being a member of the VLAN and that the port is
forbidden from becoming a member of the VLAN dynamically.
The illustration below displays t of 11. he port settings for a new VLAN (engineering) with a VID

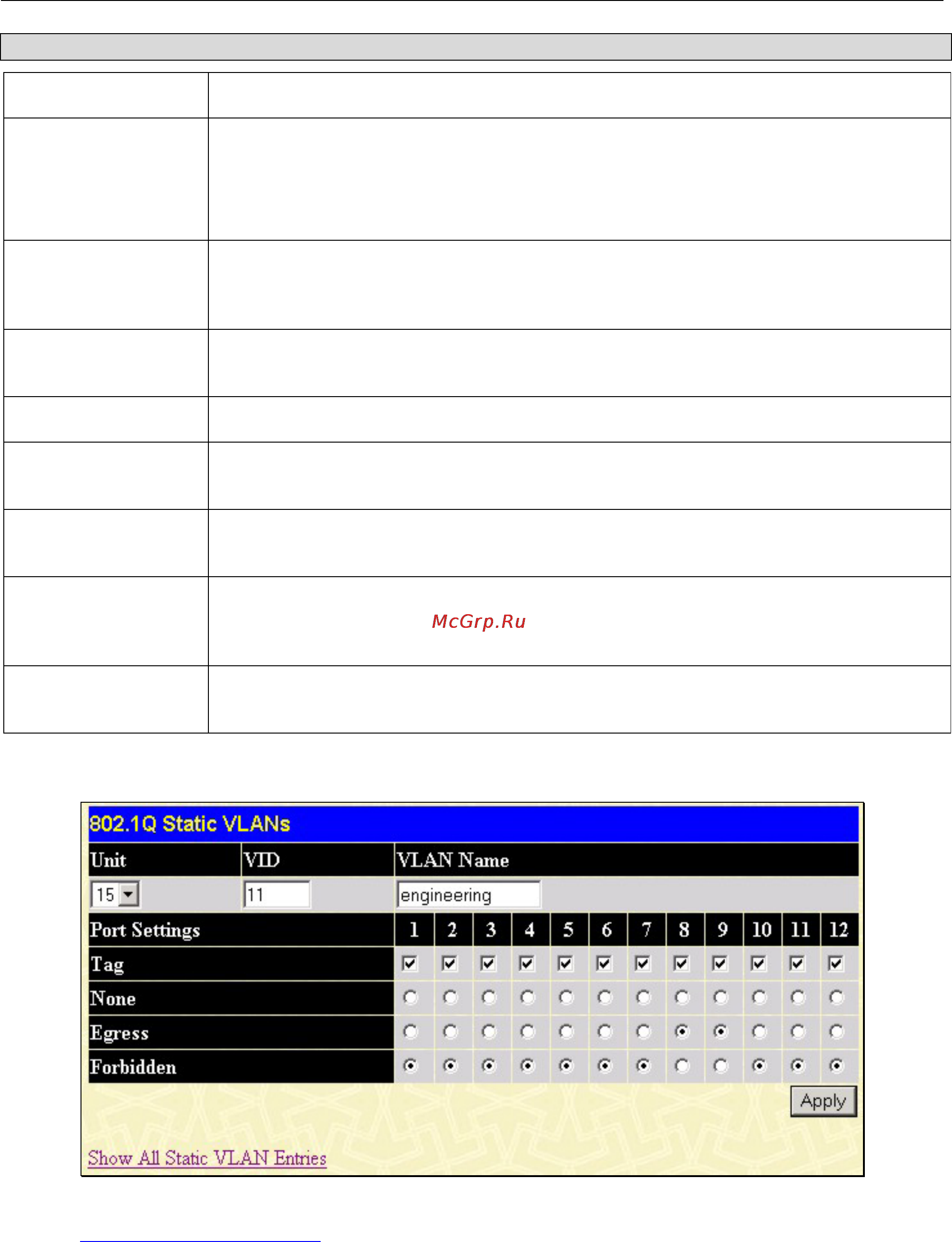

Figure 4- 53. Add New Static VLAN Example window
Click the
Show All Static VLAN Entries link to return to the first 802.1Q Static VLANs window, the new VLAN entry
appears listed in the current entries table.
90
