DGS-3312SR Stackable Gigabit Layer 3 Switch
Session Table
This window displays the management sessions since the Switch was last rebooted.

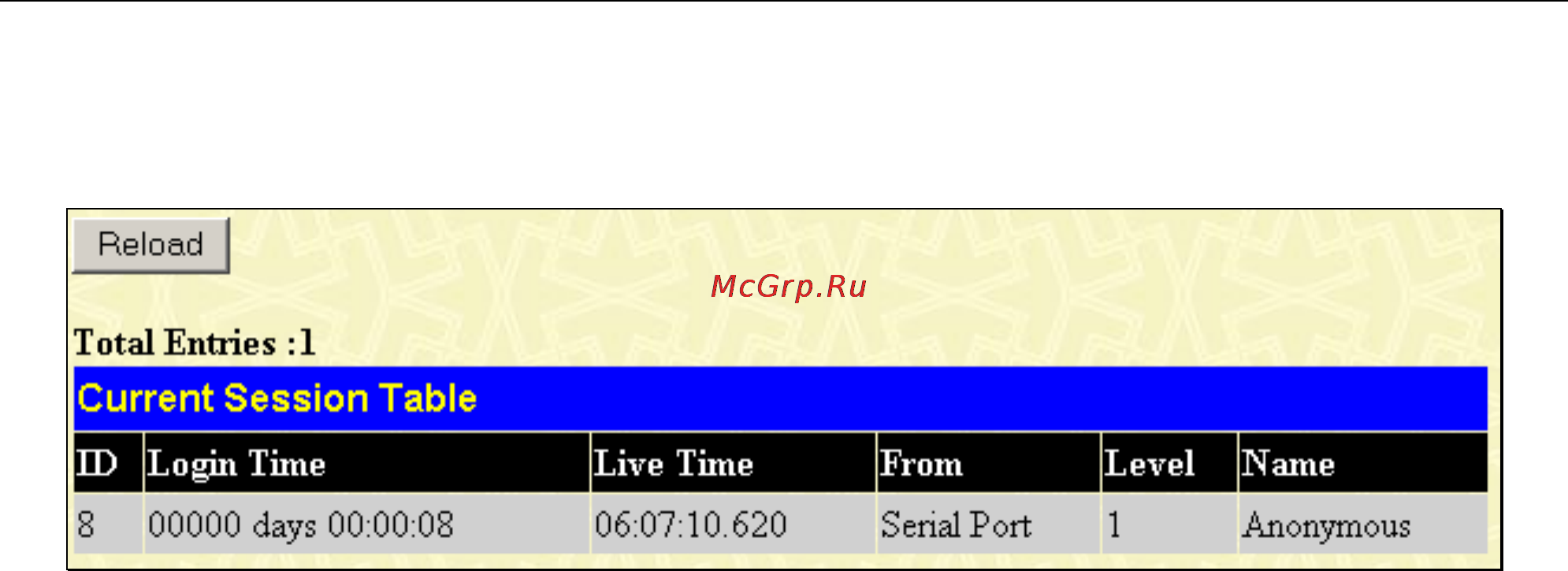

Figure 8- 24. Current Session Table window
234
