DGS-3312SR Stackable Gigabit Layer 3 Switch
Static ARP Settings
that converts IP addresses into physical addresses. This table
allows network managers to view, define, modify and delete ARP information for specific devices. Use the Static ARP
Settings window to create permanent entries in the ARP table for different IP interfaces. Static ARP entries that have been
configured appear in the Static A entry, click on the Add button,
a new window appears (see below). To remove an existing entry, click the button in the Delete column for the entry you
want to eliminate. To delete all static ARP entries, click the Clear All button.
To open the Static ARP Table open the Configuration folder, and then open the Layer 3 IP Networking folder and click
on the Static ARP Settings link.
The Address Resolution Protocol (ARP) is a TCP/IP protocol
RP Settings table in this window. To add a new static ARP
X

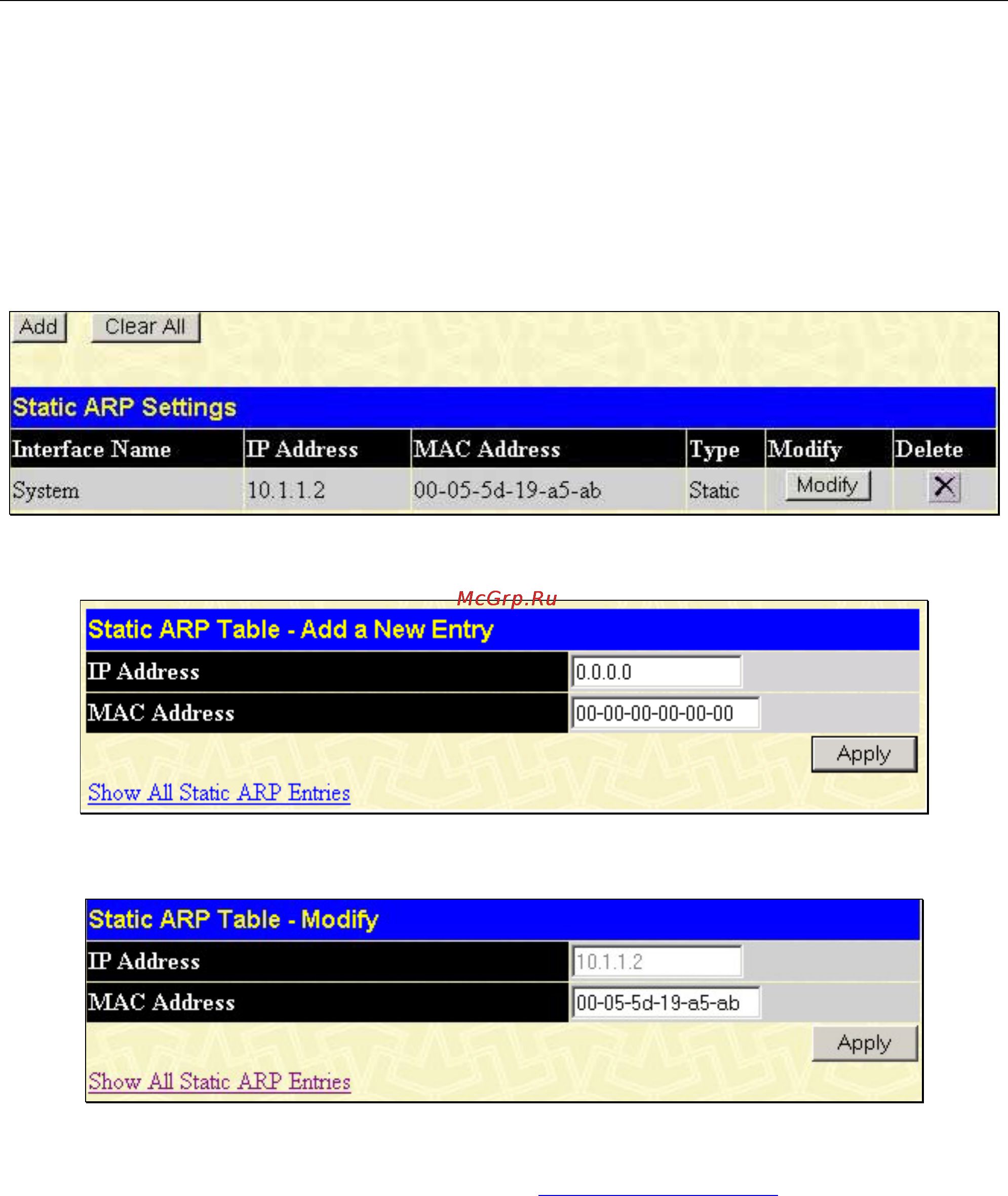

Figure 5- 10. Static ARP Settings window
Clicking the Add button allows you to add a new entry using the window below.
Figure 5- 11. Static ARP Table – Add a New Entry window
Clicking the Modify button allows you to add a new entry using the window below.
Figure 5- 12. Static ARP Table – Modify window
Enter the IP address and the MAC address of the device you want to map with ARP and click the Apply button. The new
entry will appear in the Static ARP Settings window. Click the
Show All Static ARP Entries link to see the Static ARP
Settings window.
127
