DGS-3312SR Stackable Gigabit Layer 3 Switch
Forwarding & Filtering
ntries into the forwarding database (FDB). These FDB entries are MAC addresses
Unicast
The Switch allows permanent or static e
that will not age out. In addition, multicast forwarding may be customized to conform to rules for the different ports by
setting up multicast filter modes for each port.
Forwarding
Open the Forwarding & Filtering folder and click on the Unicast Forwarding link. This will open the Setup Static
Unicast Forwarding Table window, as shown below.

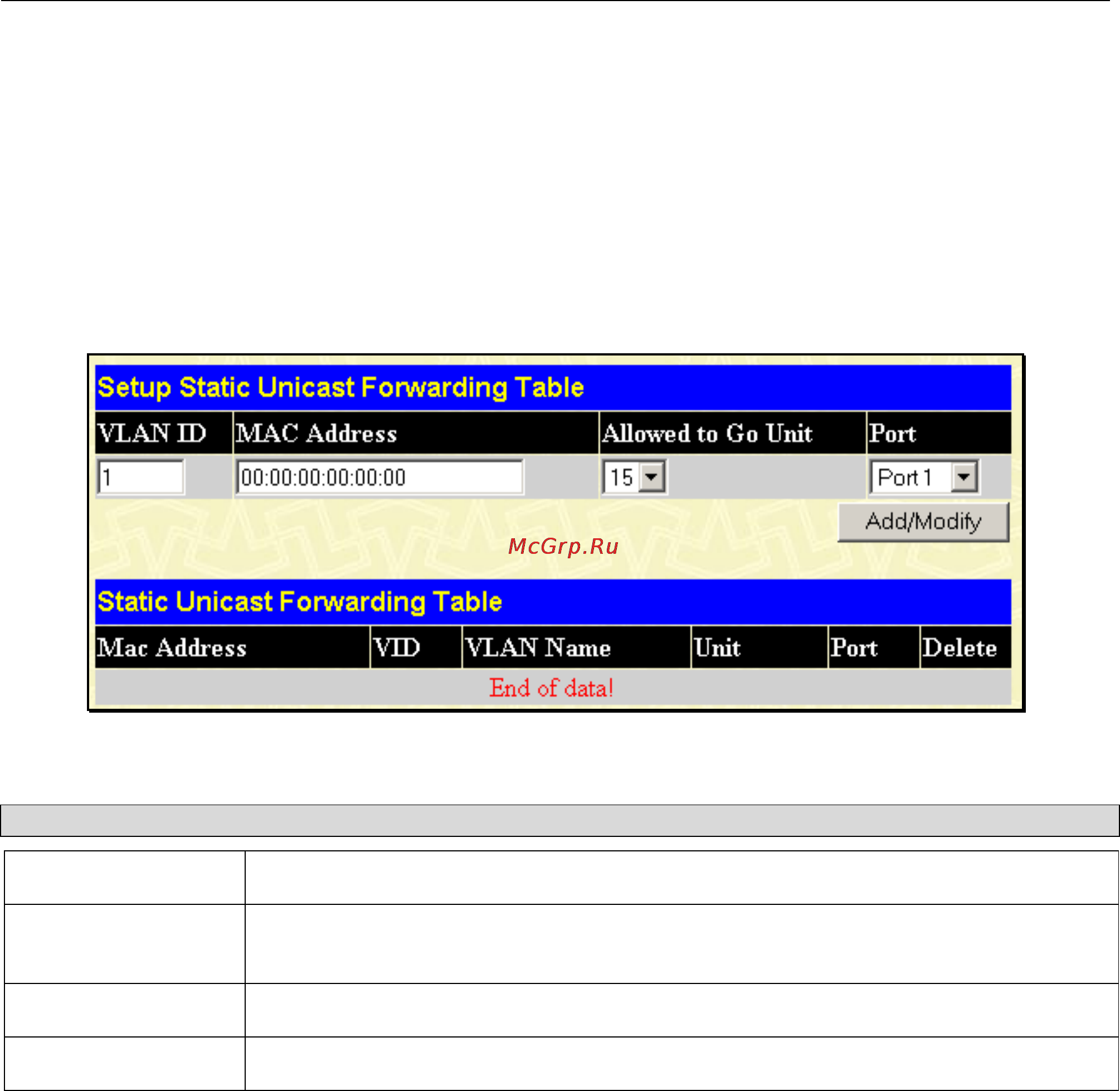

Figure 4- 45. Setup Static Unicast Forwarding Table window
To add an entry, define the following parameters:
Parameter Description
VLAN ID
The VLAN ID number of the VLAN on which the above Unicast MAC address resides.
MAC Address
The MAC address to which packets will be statically forwarded. This must be a
unicast MAC address.
Allowed to Go Unit
Allows the designation of the module on which the above MAC address resides.
Port
Choose the port on which the MAC address resides.
Click on the Add/Modify button to add a unicast MAC address to the Switch’s forwarding table, or to modify a previous
entry.
83
