DeleteOnReset – The locked addresses will not age out until the Switch has been reset.

Port Lock Entry Delete

The Port Lock Entry Delete window is used to remove an entry from the port security entries learned by the Switch and

entered into the forwarding database. To view the following window, click Configuration > Port Security Configuration

> Port Lock Entry Delete:

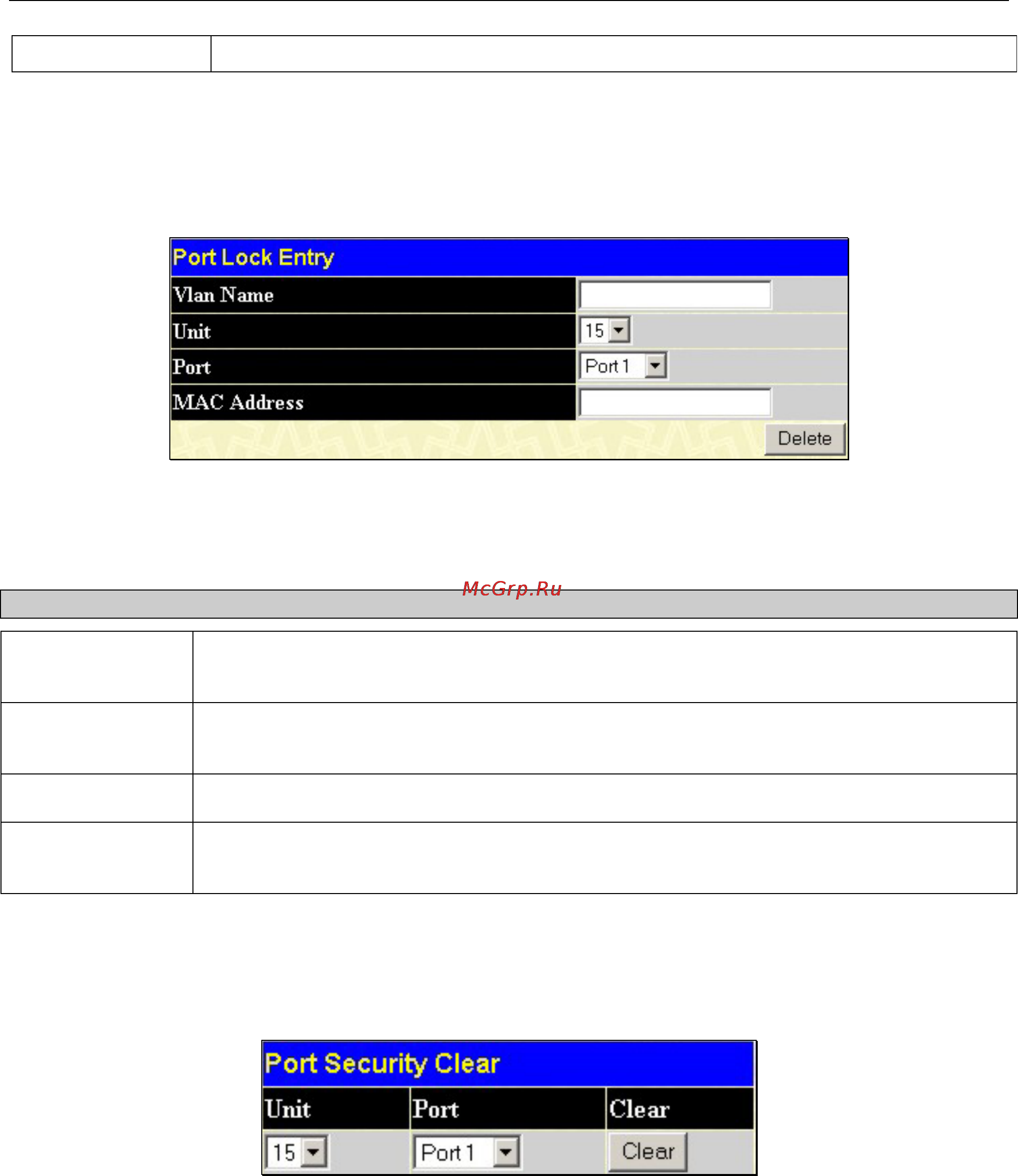

Figure 4- 66. Port Lock Entry window

This function is only operable if the Mode in the Port Security window is selected as Permanent or DeleteOnReset, or in

other words, only addresses that are permanently learned by the Switch can be deleted. Once the entry has been defined by

entering the correct information into the window above, click Delete.

Parameter Description

VLAN Name

The VLAN Name of the entry in the forwarding database table that has been permanently

learned by the Switch.

Unit

The ID number of the Switch in the Switch stack that has permanently learned the MAC

address.

Port

Enter the port on which the MAC address resides.

MAC Address

The MAC address of the entry in the forwarding database table that has been

permanently learned by the Switch.

Port Security Clear

This window is used to clear the security settings implemented on the Switch on a per port basis. To view this window,

click Configuration > Port Security Configuration > Port Security Clear:

Clear window

T onfig

a port on that switch and c clear button. A Success! message will appear in a pop-up window when the port has

been cleared of security restrictions.

Figure 4- 67. Port Security

o clear the security c urations on a port, use the pull-down menus to select a switch within the Switch stack and then

lick the

103
