DGS-3312SR Stackable Gigabit Layer 3 Switch
VRRP Interface Entry Display
To view the settings for a particular VRRP setting, click the corresponding in the VRRP Interface Table window of
the entry, which will display the following:

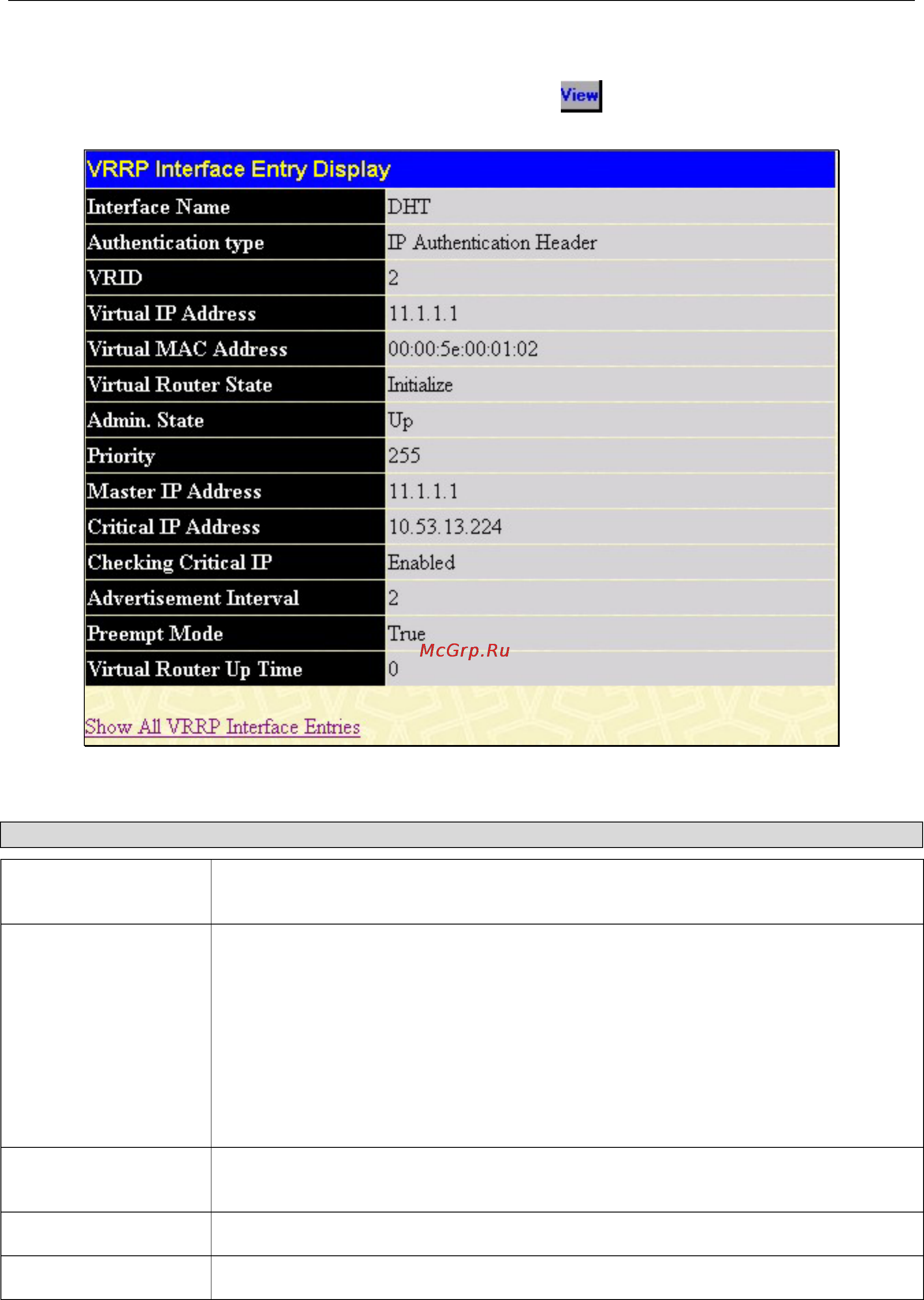

Figure 5- 48. VRRP Interface Entry Display window
This window displays the following information:
Parameter Description
Interface Name
An IP . This entry must have been
dow.
interface name that has been enabled for VRRP
previously set in the IP Interface Settings win
Authentication type
Displays the type of authentication used to compare VRRP packets received by a
No authentication – No authentication has been selected to compare VRRP packets
received by a virtual router.
Simp
compare VRRP packets received by a virtual router, for authentication.
virtual router. Possible authentication types include:
le Text Password – A Simple password has been selected to compare VRRP
packets received by a virtual router, for authentication.
IP Authentication Header – An MD5 message digest algorithm has been selected to
VRID
Displays the virtual router ID set by the user. This will uniquely identify the VRRP
Interface on the network.
Virtual IP Address
The IP address of the Virtual router configured on the Switch.
Virtual MAC Address
The MAC address of the device that holds the Virtual router.
165
